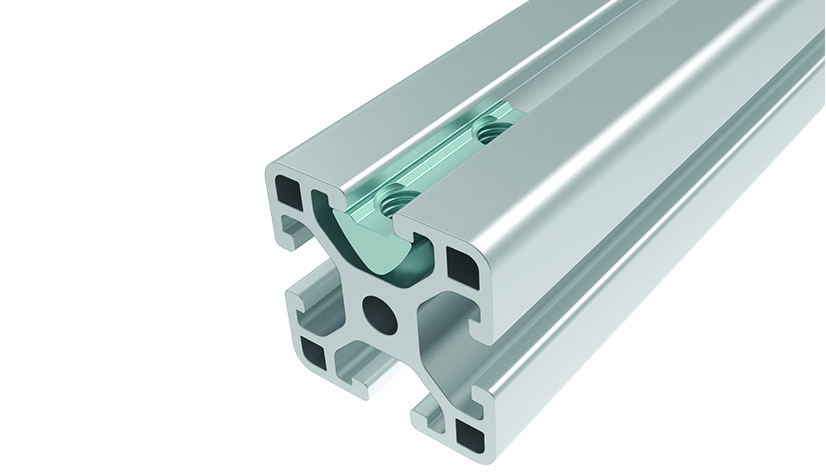

Roll-in Double T-slot Nut 10.5 x 5.6 mm

Product information "Roll-in Double T-slot Nut 10.5 x 5.6 mm"

Delivery Countries:
Worldwide

Description:
Roll-in Double T-slot nut; ESD electrostatical discharging version with two notches on one front end

Material:
Steel

Specials:
Different lengths with multiple threads in different sizes available on request

Surface:
Zinc plated

Zolltarifnummer:
73181900900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Slot 6, Steel
Pack Quantity: 100 pieces
Weight (g): 16.0

Variants

Product ID Profile M A (mm) L (mm)
096236D28 I M6 17.0 28.0
096236D58 I M6 47.0 58.0
