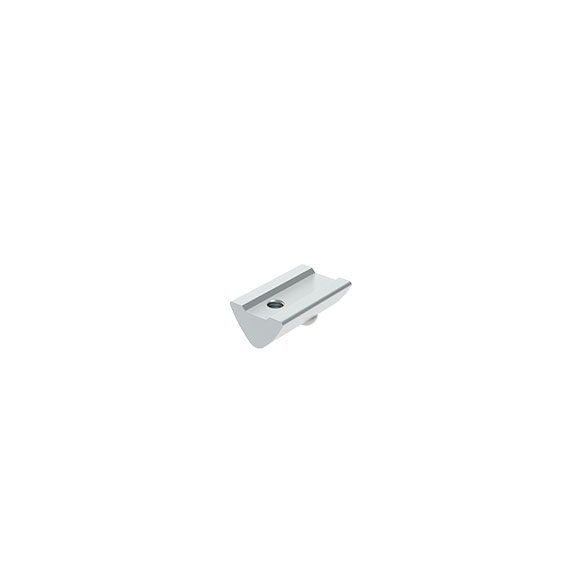

Roll-in T-slot Nut 10.5 x 5.6 mm with Spring Loaded Ball

Product information "Roll-in T-slot Nut 10.5 x 5.6 mm with Spring Loaded Ball"

Delivery Countries:
Worldwide

Description:
Roll-in T-slot nut with spring loaded ball

Material:
Steel / stainless steel SS304 / SS303

Specials:
ESD electrostatical discharging, different lengths with multiple threads in different sizes available on request

Surface:
Zinc plated / plain

Zolltarifnummer:
73181900900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Slot 6, with spring loaded ball, steel / stainless steel
Pack Quantity: 100 pieces
Weight (g): 5.2

Variants

Product ID ESD Profile Material M
096233 I Steel M3
096234 I Steel M4
096235 I Steel M5
096235E I Stainless steel M5
096235S01 ESD electrostatical discharging I Steel M5
096236 I Steel M6
096236E I Stainless steel M6
