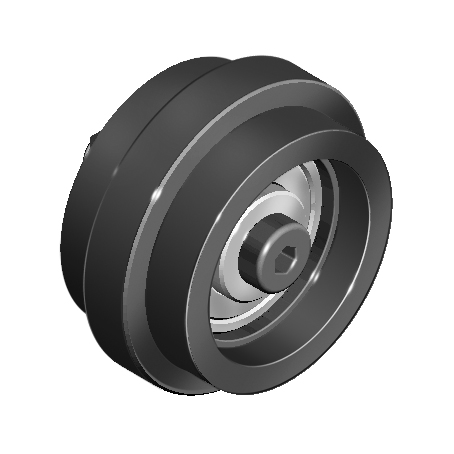

Roller Ø 58 for T-slotted Profiles (Set)

Product information "Roller Ø 58 for T-slotted Profiles (Set)"

Color:
Black

Delivery Countries:
Worldwide

Description:

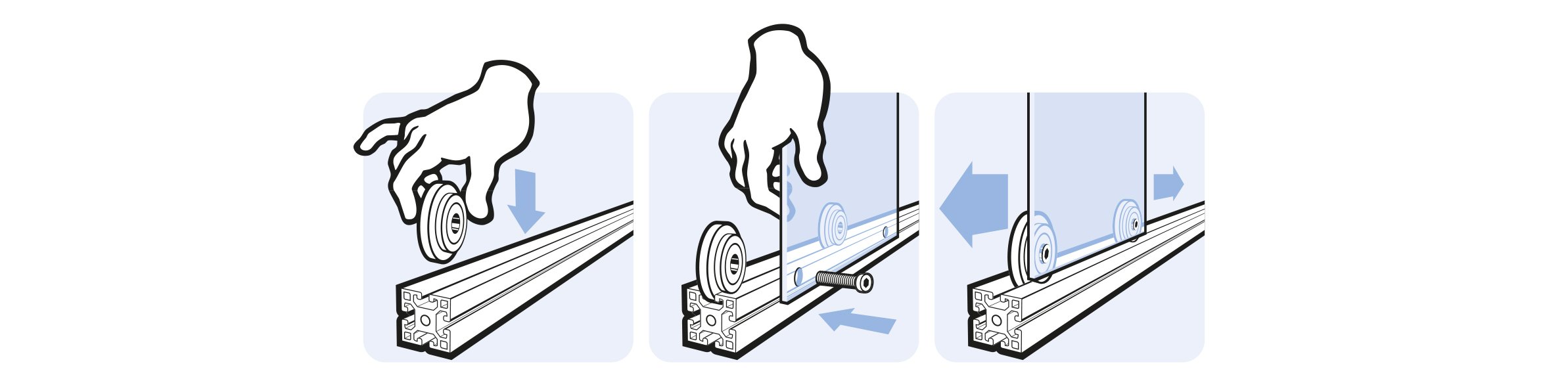

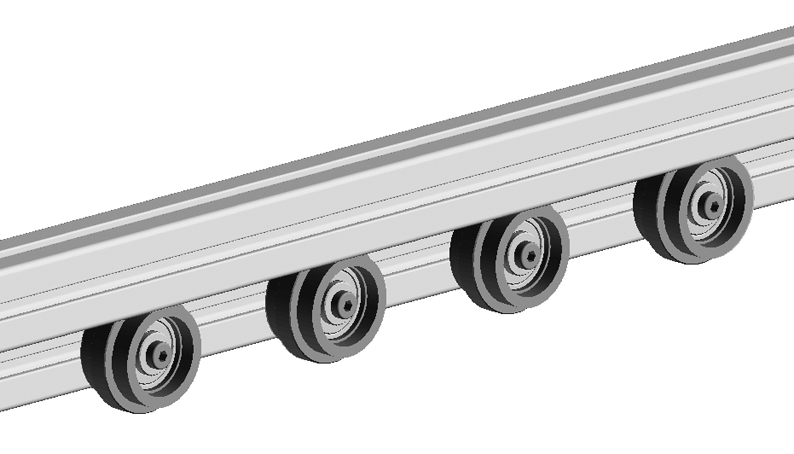

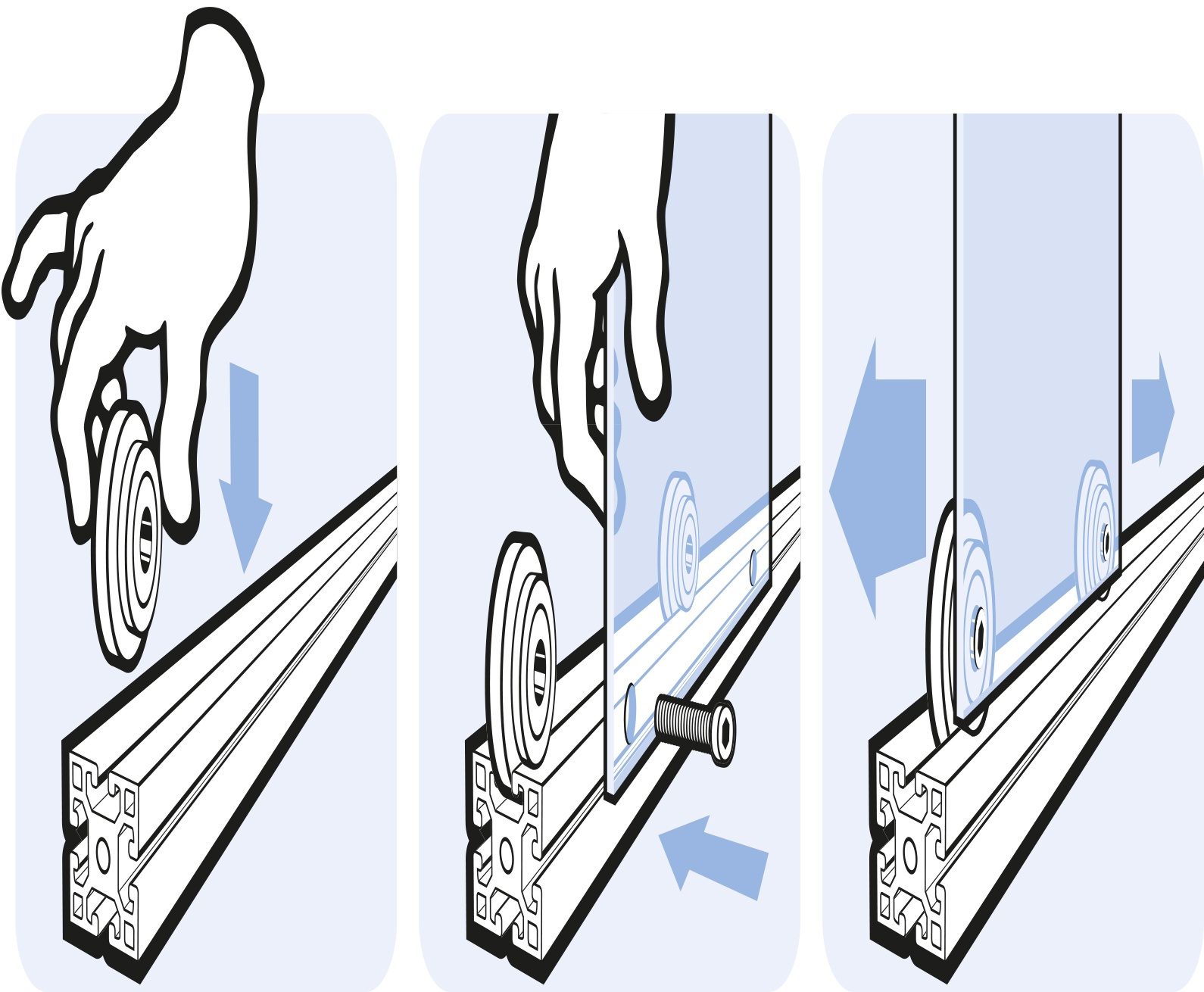

To guide moving parts in the slot of the aluminum profile, with ball bearing

Material:
Plastic PA, glass ball reinforced

Set:
1 roller,
1 hammer nut, slot 10 M8, zinc-plated steel,
1 cylinder head screw DIN 7984 M8 x 40, zinc-plated steel,
1 washer DIN 7349

Specials:
ESD electrostatical discharging, other colors on request

Zolltarifnummer:
83022000900
(ECLASS 6.0): 23370203
(ECLASS 7.0): 23370203
(ECLASS 8.0): 23370203
(ECLASS 9.0): 23370203
(ECLASS 10.0): 23370203
(ECLASS 11.0): 23370203
(ECLASS 12.0): 23370203
(ECLASS 13.0): 23370203
Model: Plastic PA, Slot 10
Pack Quantity: 10 sets
Weight (g): 154.5

Variants

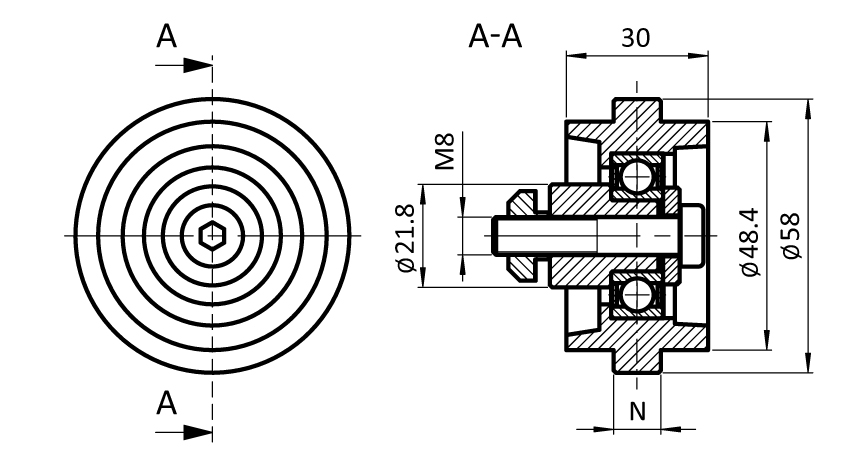

Product ID Slot N (mm)
093026 10

CAD Downloads

Certificates
