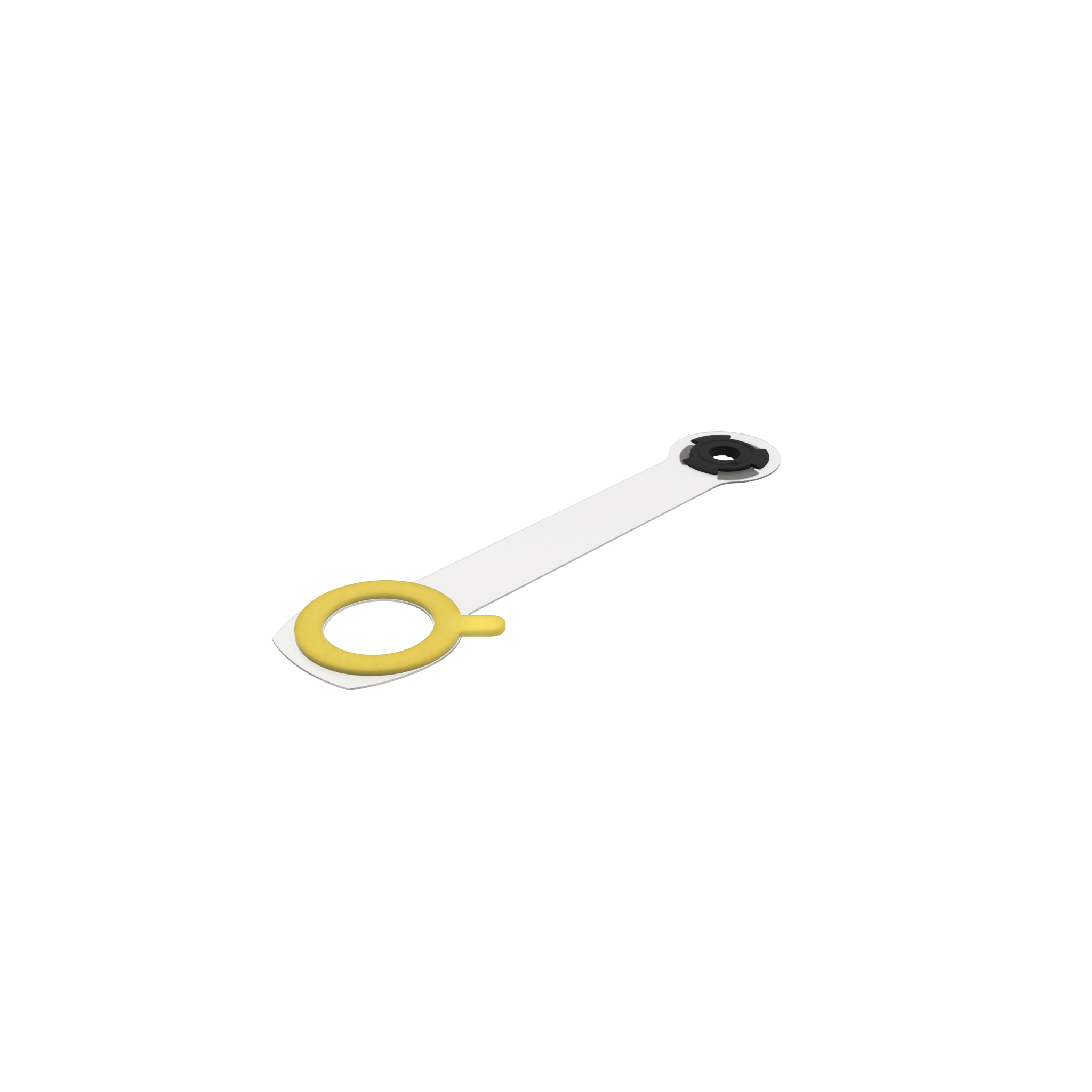

Safety Strip STRAPTIE

Product information "Safety Strip STRAPTIE"

Color:
Clear / black

Delivery Countries:
Worldwide

Description:
To easily and fastly secure screws, according to Machinery Directive 2006/42/EC

Material:
Strap: Plastic PVC
Shim: Plastic PA, glass fiber reinforced

(ECLASS 6.0):	23090390
(ECLASS 7.0):	23090390
(ECLASS 8.0):	23090390
(ECLASS 9.0):	23090390
(ECLASS 10.0):	23090390
(ECLASS 11.0):	23090390
(ECLASS 12.0):	23090390
(ECLASS 13.0):	23090390
Customs Tariff Number Export:	39269097
Model:	for Screws with thread M6, M8, M10, M12
Pack Quantity:	20 pieces
Weight (g):	1.0
Zolltarifnummer:	39269097900
pA Number:	120922

Variants

Product ID	Version	ØK (mm)	B (mm)	L (mm)	M	R (mm)	F (mm)
093VS06	With print	22.6	14.2	90.0	M6	34.9	28.0
093VS06S01	Without print	22.6	14.2	90.0	M6	34.9	28.0
093VS08	With print	28.2	18.2	100.0	M8	39.5	32.0
093VS08S01	Without print	28.2	18.2	100.0	M8	39.5	32.0
093VS10	With print	33.2	23.2	110.0	M10	46.7	39.0
093VS10S01	Without print	33.2	23.2	110.0	M10	46.7	39.0
093VS12	With print	33.2	23.2	120.0	M12	46.8	29.0
