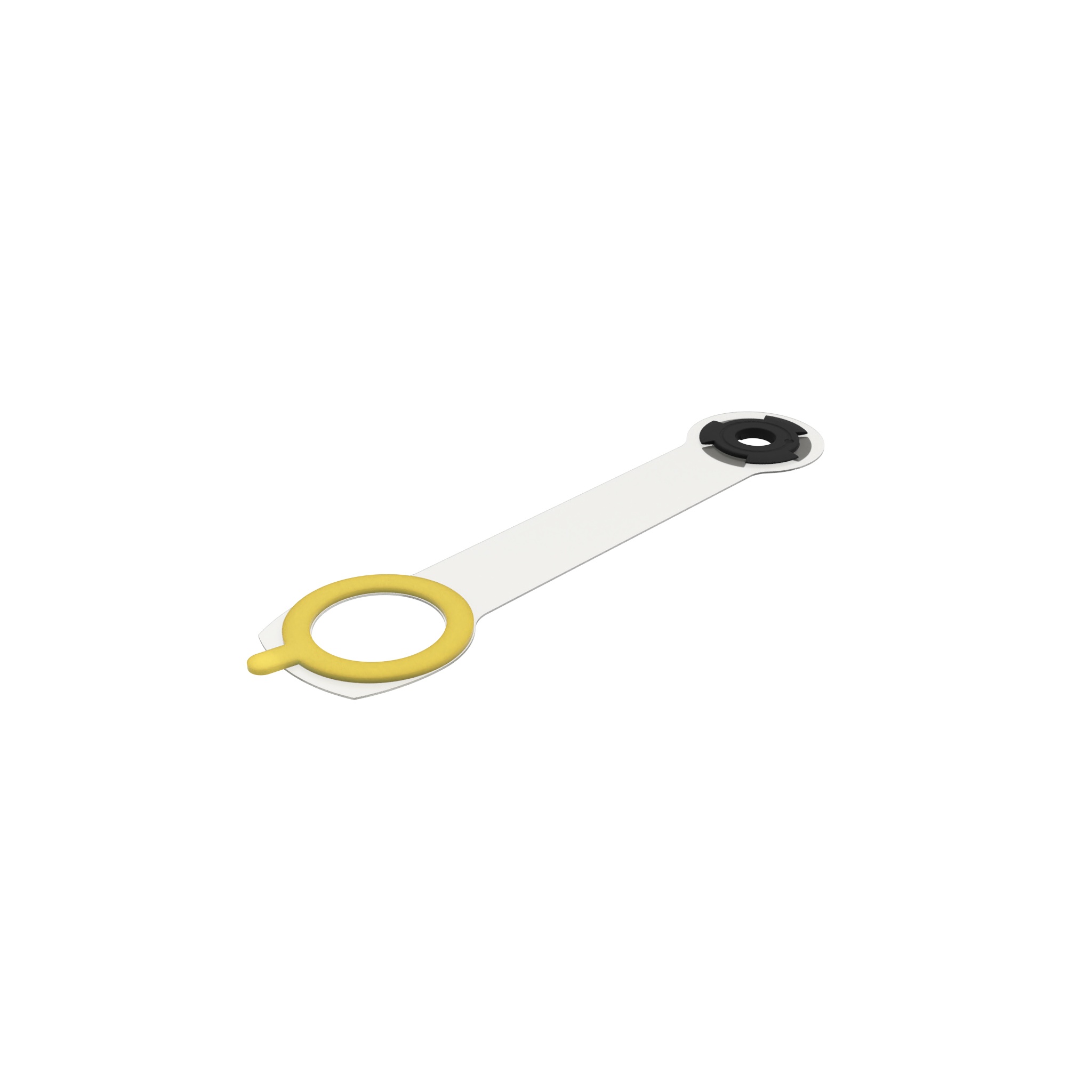

Safety Strip "Straptie"

Product information "Safety Strip "Straptie""

Color:
Clear / black

Delivery Countries:
Worldwide

Description:
To easily and fastly secure screws, according to Machinery Directive 2006/42/EC

Material:
Strap: Plastic PVC
Shim: Plastic PA, glass fiber reinforced

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23090390
(ECLASS 7.0): 23090390
(ECLASS 8.0): 23090390
(ECLASS 9.0): 23090390
(ECLASS 10.0): 23090390
(ECLASS 11.0): 23090390
(ECLASS 12.0): 23090390
(ECLASS 13.0): 23090390
Model: for Screws with thread M6, M8, M10, M12
Pack Quantity: 20 pieces
Weight (g): 1.5

Variants

Product ID Version ØK (mm) B (mm) L (mm) M R (mm) F (mm)
093VS06 With print 22.6 14.2 90.0 M6 34.9 28.0
093VS06S01 Without print 22.6 14.2 90.0 M6 34.9 28.0
093VS08 With print 28.2 18.2 100.0 M8 39.5 32.0
093VS08S01 Without print 28.2 18.2 100.0 M8 39.5 32.0
093VS10 With print 33.2 23.2 110.0 M10 46.7 39.0
093VS10S01 Without print 33.2 23.2 110.0 M10 46.7 39.0
093VS12 With print 33.2 23.2 120.0 M12 46.8 29.0
