Screw Connector I, Single Side

Product information "Screw Connector I, Single Side"

Delivery Countries:
Worldwide

Description:

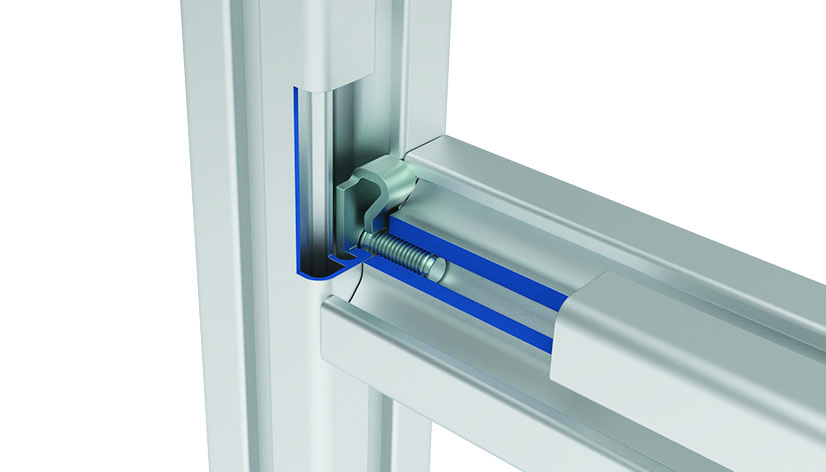

To connect two aluminum profiles; penetrates the andonized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection; free slot for the mounting of panels on one side

Material:
Steel

Surface:
Zinc plated

Model:	Slot 8
Customs Tariff Number Export:	73182900
Weight (g):	8.6
(ECLASS 6.0):	23360290
(ECLASS 7.0):	23360290
(ECLASS 8.0):	23360290
(ECLASS 9.0):	23360290
(ECLASS 10.0):	23360290
(ECLASS 11.0):	23360290
(ECLASS 12.0):	23360290
(ECLASS 13.0):	23360290
ERP Number:	132368

Variants

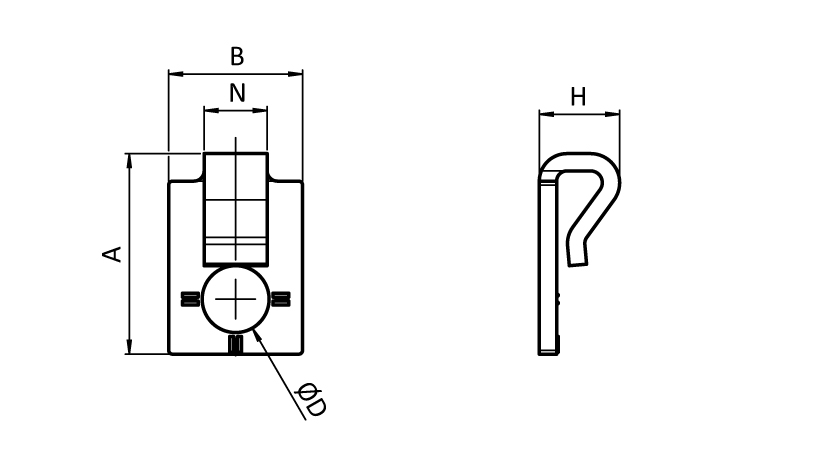

Part #	Version	ESD	A x B (mm)	D (mm)	H (mm)	Slot N (mm)	Profile	Pack Quantity

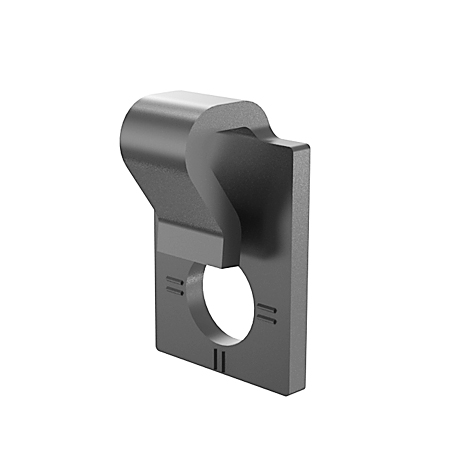

092140	Turn-lock	ESD electrostatical discharging	25.5 x 17.0	8.5	10.2	8	-	100 pieces
099F0840SM08	With pan-head screw M8 x 20	ESD electrostatical discharging	25.5 x 17.0	8.5	10.2	8	-	100 pieces
099F0840SS07	With self-forming screw S7 x 20	ESD electrostatical discharging	25.5 x 17.0	8.5	10.2	8	I	100 pieces
