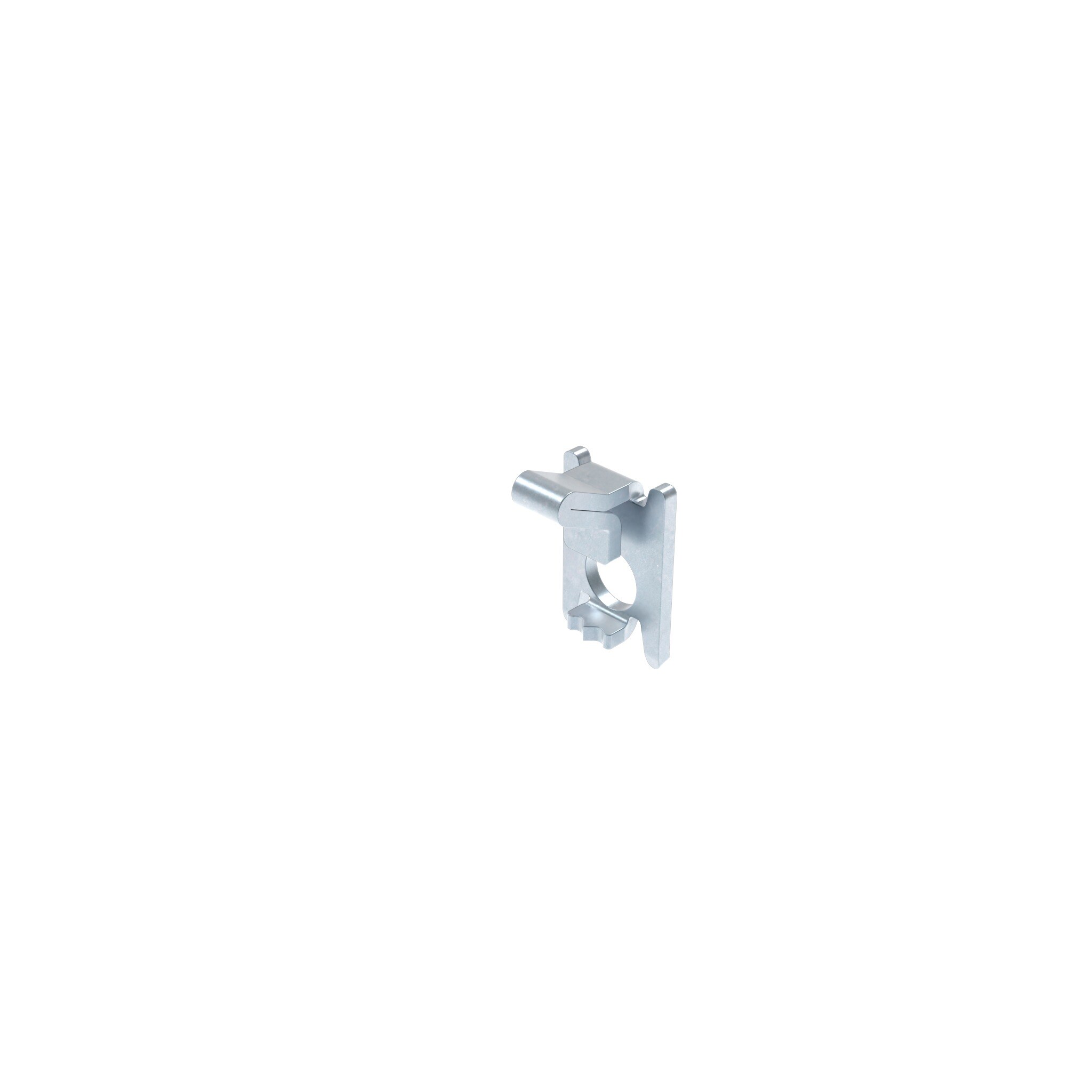

Screw Connector I Special, Single Side

€0.00

Version

Turn-lock

With pan-head screw M8 x 20

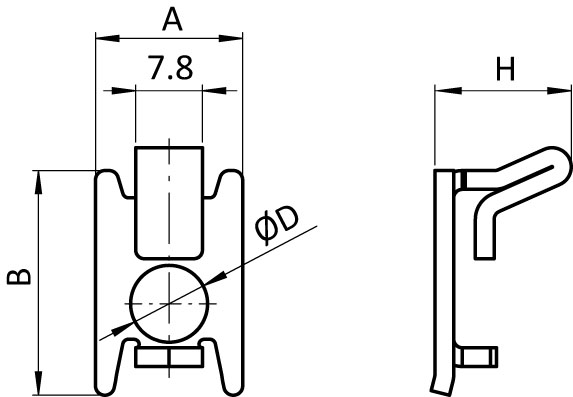

H (mm)

16.0

Profile

-

I

ESD

ØD (mm)

9

A x B (mm)

17.0 x 26.5

Part #: 092143

Pack Quantity: 100 pieces

Description:

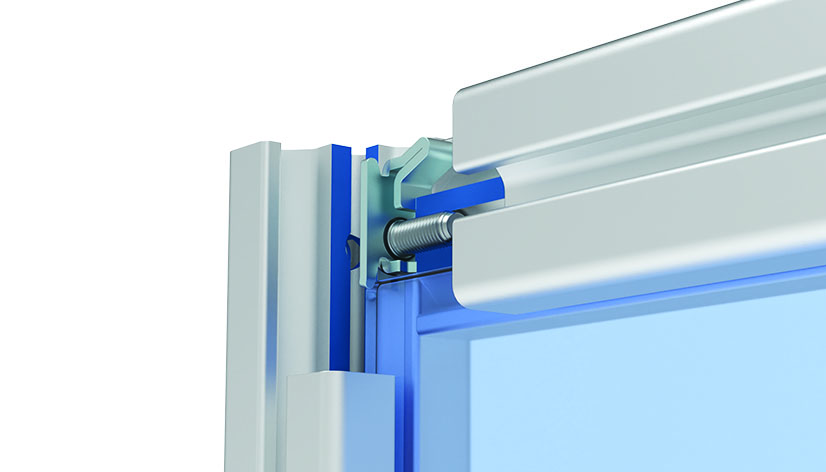

To connect two aluminum profiles; penetrates the andonized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection

Material:
Steel

Surface:
Zinc plated

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Slot 8
Weight (g):	10.0
ERP Number:	144021

Variants

Part #	Version	H (mm)	Profile	ESD	ØD (mm)	A x B (mm)	CAD
092143	Turn-lock	16.0	-	ESD	9	17.0 x 26.5
099F0840SM08S01	With pan-head screw M8 x 20	16.0	I	ESD	9	17.0 x 26.5

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Customs Tariff Number Export: 73182900

Certificates

Profile Type	Profile Type I
Product Feature	ESD
Profile Form	T-slot Profiles
