Slam Latch COMPACT

Product information "Slam Latch COMPACT"

Color:
Black, aluminum color

Delivery Countries:
Worldwide

Description:
For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly; safe against disassembling in the locked position

Material:
Aluminum die-cast

Surface:
Powder coated

Tip:
* Universal: One key fits all slam latches
Unique: Each slam latch has a different key;
** With double-bitted key
Compatible Emergency Opener for Slam Latch see 0957409 et sq.

Tip 2:
Compatible Replacement Cover Cap (Set) see 0957408RS01
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23190290
(ECLASS 12.0): 23190290
(ECLASS 13.0): 23190290
Customs Tariff Number Export: 83014090

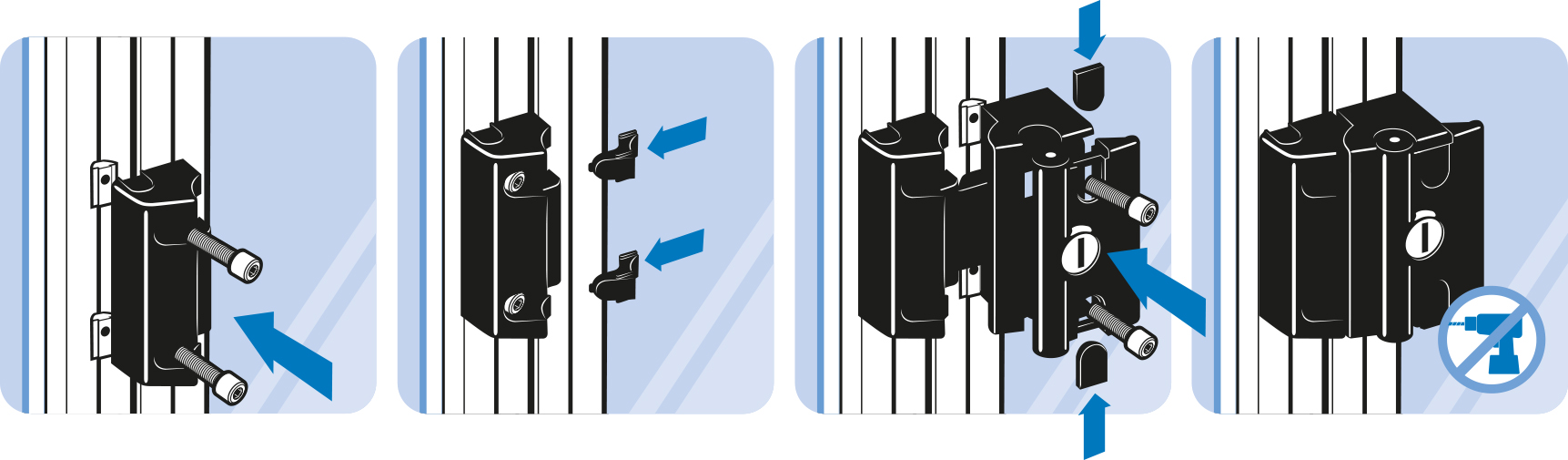

Fastening: From the front, using M6 socket head or pan head screws
Model: Aluminum die-cast
Pack Quantity: 1 piece
Weight (g): 204.0
Zolltarifnummer: 83014090000
pA Number: 127384

Variants

Product ID Color Version Lock
0957408 Black Black powder coated Universal*
0957408S01 Alu color Alu color powder coated Universal*

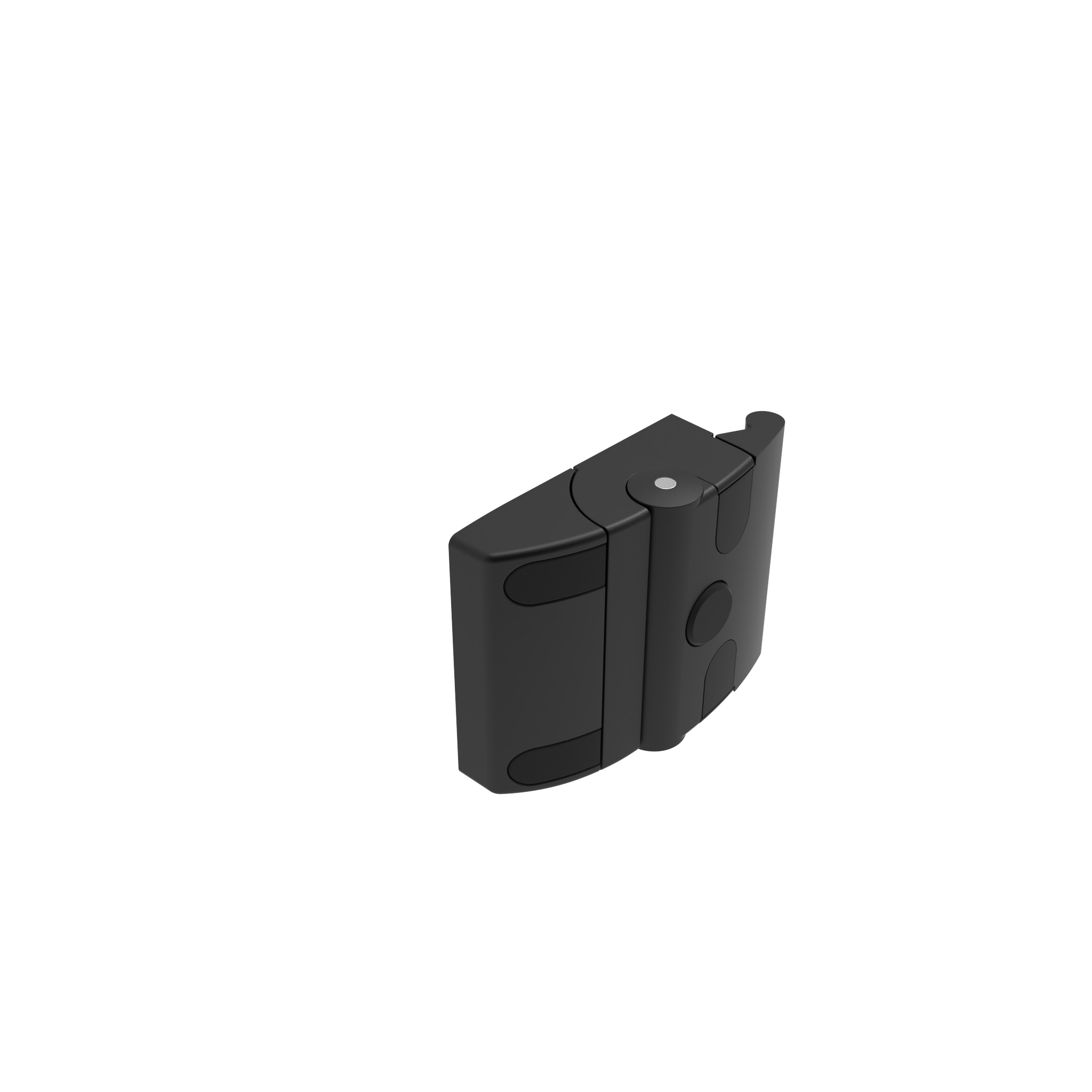

0957410 Black Black powder coated without
0957410S01 Alu color Alu color powder coated without
0957411 Black Black powder coated Unique*
0957411S01 Alu color Alu color powder coated Unique*
0957431 Black Black powder coated Square lock
0957432 Black Black powder coated Double-bit lock**
