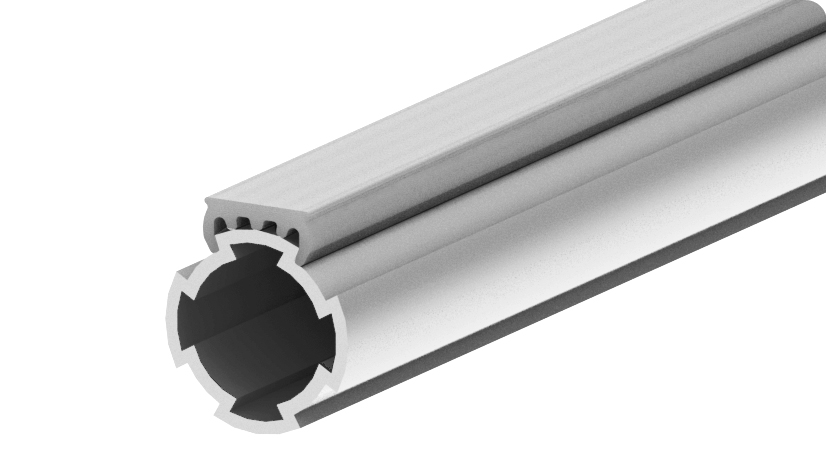

Slide Rail D28

€0.00

Profile

B

Color

Gray ≈ RAL 7035

Part #: 092060

Pack Quantity: 100 pieces at 2 meters (200 meters)

Description:

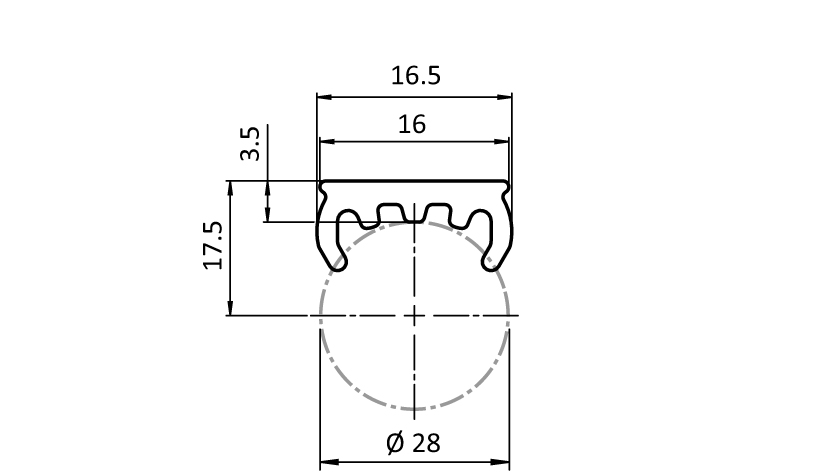

To build simple slipways by clipping on a tubular frame profile with Ø 28 mm outer diameter; also applicable as support strip for the mouting of panels with vario block AL D28

Material:
Plastic PVC-U

Color:
Gray

Tip:
Compatible Vario Block see 094AD28

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces at 2 meters (200 meters)
Model:	Plastic PA
Weight (g/m):	66.0
ERP Number:	167838

Variants

Part #	Profile	Color	CAD
092060	B	Gray ≈ RAL 7035

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360192
ECLASS 12.0: 23360192
ECLASS 13.0: 23360192
Zolltarifnummer: 39162000990
Customs Tariff Number Export: 39162000

Certificates

Tags

Profile Type	Profile Type B
Modular Dimension	Modular Dimension D28
Profile Form	Round Tubular Profiles

Matching accessories

Vario Block AL D28 (Set)

Profile: B

Description:To attach panels firmly to tubular frame profiles with Ø 28 mm outer diameter, ESD electrostatical dischargingMaterial:AluminumSurface:PlainSet:1 vario block AL - 2-part, 1 screw DIN EN ISO 4762 (DIN 912) - M6 x 30, 2 screws DIN EN ISO 4762 (DIN 912) - M6 x 22, 2 square nuts DIN 557 - M6Tip:Compatible Slide Rail D28 see 092060S01Specials:Other surfaces, other colors on requestDelivery Countries:Worldwide
