Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set)
€0.00

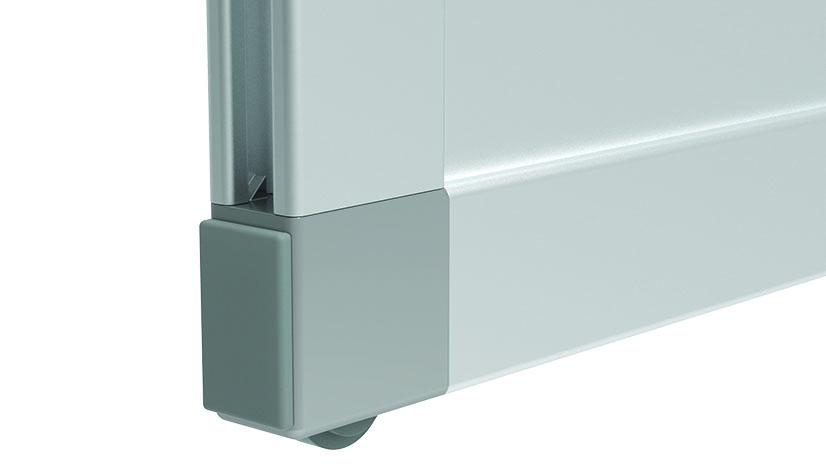

To guide lift or sliding doors in the slot of an aluminum profile, to insert in the frame corner connector 18 x 32 for clamp profile
Guide insert: Plastic PA, glass fiber reinforced
Color:
Guide insert: Gray ≈ RAL 7042
Set:
1 guide insert,
1 cover cap,
1 stopper
Tip:
Compatible Frame Corner Connector 18 x 32 for Clamp Profile (Set) see 093WWC18321N08S01
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | Slot 5 |
| Weight (g): | 10.2 |
| ERP Number: | 146589 |
Product Portraits
Classifications
- ECLASS 6.0
- 23219090
- ECLASS 7.0
- 23210990
- ECLASS 8.0
- 23210990
- ECLASS 9.0
- 23210990
- ECLASS 10.0
- 23210990
- ECLASS 11.0
- 23210990
- ECLASS 12.0
- 23210990
- ECLASS 13.0
- 23210990
- Zolltarifnummer
- 83022000900
- Customs Tariff Number Export
- 83022000
Certificates
Matching accessories
Description:To connect two clamp profiles 18 x 32 at right anglesMaterial:Frame corner connector: Aluminum die-cast Screws: SteelSurface:Frame corner connector: Powder coated Screws: Zinc platedColor:Frame Corner Connector: Alu colorSet:1 Frame Corner Connector, 2 screws DIN EN ISO 7380 (DIN 34805) - M5 x 16Tip:Compatible Sliding Door Guide Insert for Frame Corner Connector 18 x 32 (Set) see 093WWCI18321S01Delivery Countries:Worldwide
