Sliding Door Guide Set 30

New

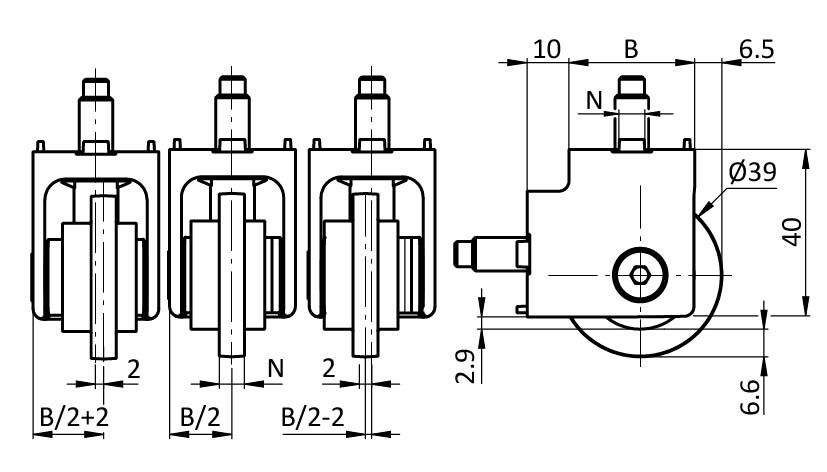

Sliding Door Guide Set 30 – technical drawing

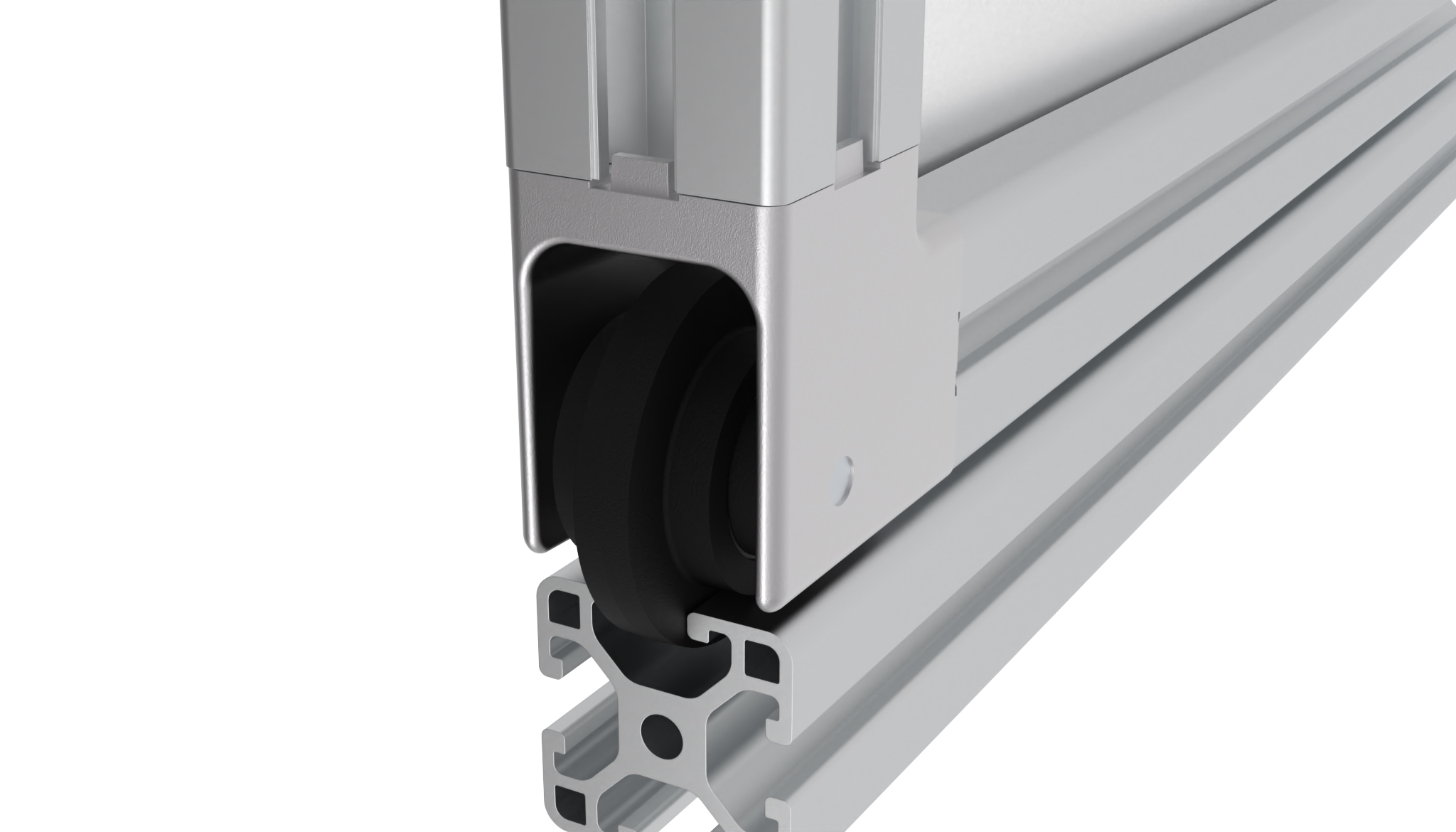

Sliding Door Guide Set 30 – application example

€0.00

Profile

B

I

B (mm)

30

Slot N (mm)

6

8

Set

Set 1

Set 2

Part #: 093102S02

Pack Quantity: 10 pieces

Product information "Sliding Door Guide Set 30"

Color:
Roller: Black
Spacer: Natural

Delivery Countries:
Worldwide

Description:
To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doors

Material:
Casing: Aluminum die-cast
Roller: Plastic PA, glass ball reinforced
Spacer: Plastic PA

Set 1:
1 casing,
1 roller slot 8,
1 screw as axle,
2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 22 (for profile)
3 spacers

Set 2:
1 casing,
1 roller slot 8,
1 screw as axle,
2 screws DIN EN ISO 10642 (DIN 7991) - M8 x 20 (for profile)
3 spacers

Surface:
Casing: Plain
