Sliding Door Guide Set 40 / 45

Product information "Sliding Door Guide Set 40 / 45"

Color:
Roller: Black
Spacer: Natural

Delivery Countries:
Worldwide

Description:

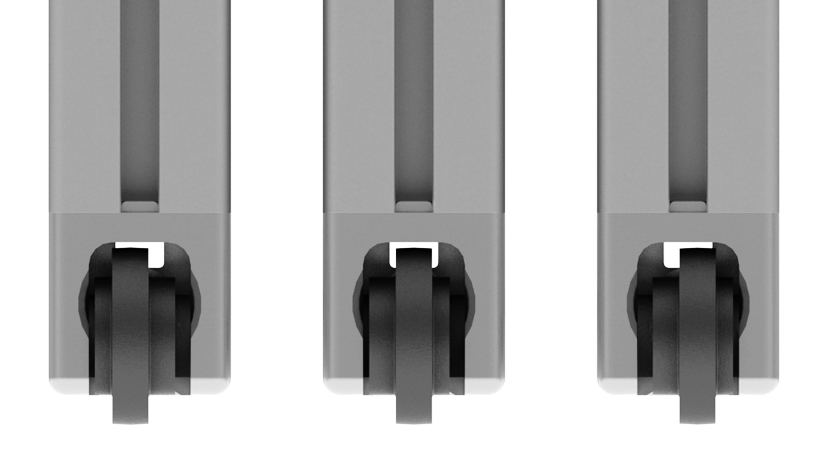

To connect two aluminum profiles at right angles and to guide lift or sliding doors in the slot of an aluminum profile, with ball bearing; spacers can be changed: for a 2 mm distance between door and fixed profile or a 2 or 4 mm distance between two doors

Material:
Casing: Aluminum die-cast
Roller: Plastic PA, glass ball reinforced
Spacer: Plastic PA

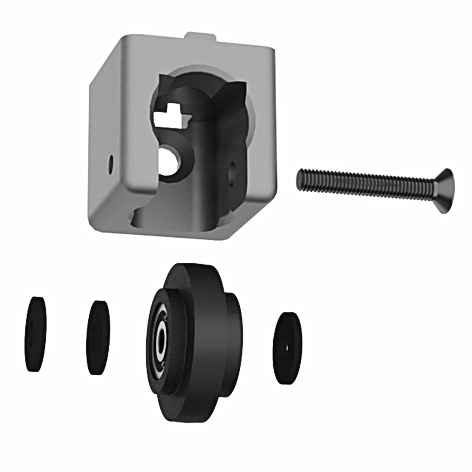

Set 1:
1 casing,
1 roller,
1 screw as axle,
3 spacers

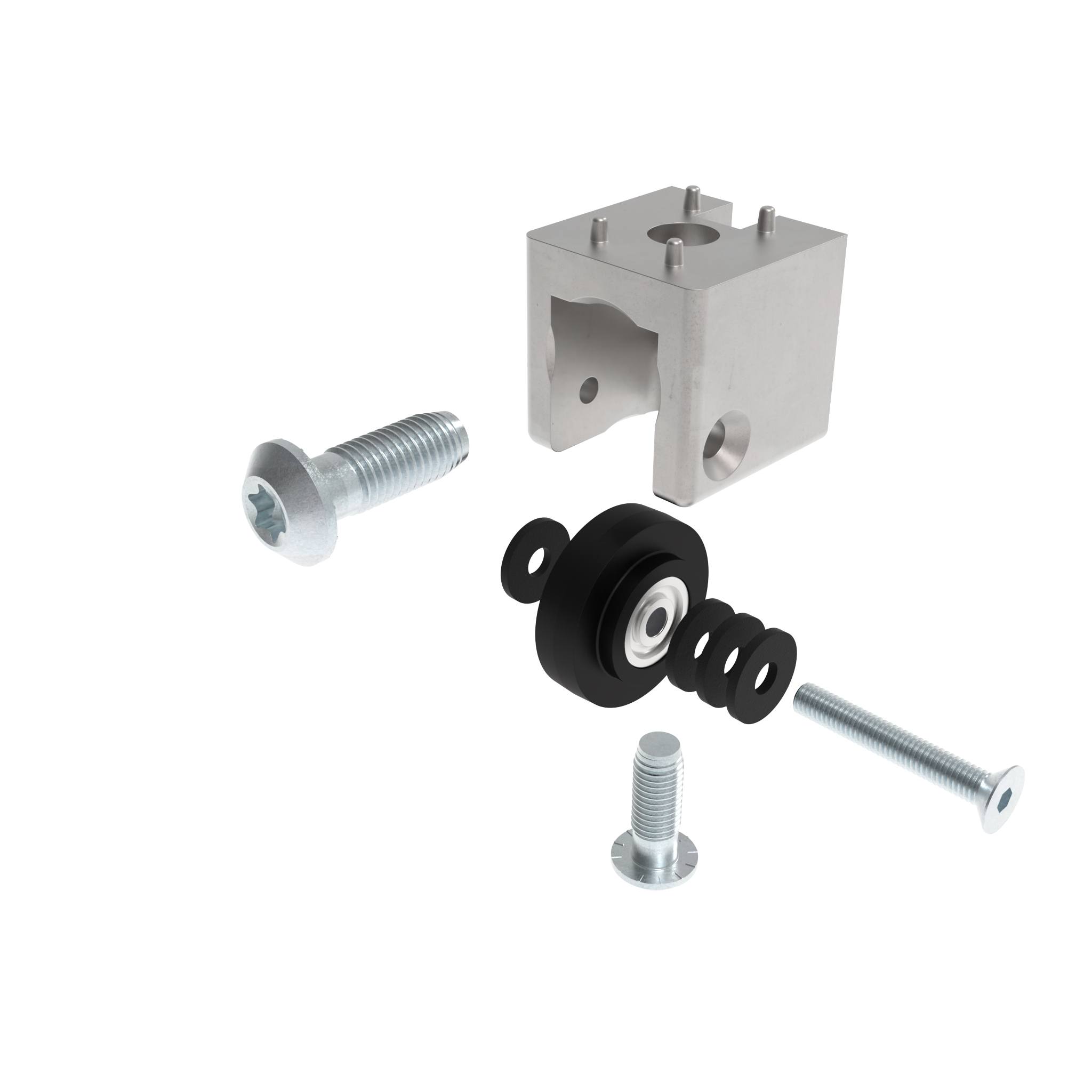

Set 2:
1 casing,
1 roller,
1 screw as axle,
4 spacers

Surface:
Casing: Plain

Zolltarifnummer:
83024110000
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23210990
(ECLASS 8.0): 23210990
(ECLASS 9.0): 23210990
(ECLASS 10.0): 23210990
(ECLASS 11.0): 23210990
(ECLASS 12.0): 23210990
(ECLASS 13.0): 23210990
Model: Slot 8 - 10
Pack Quantity: 10 sets
Weight (g): 175.0

Variants

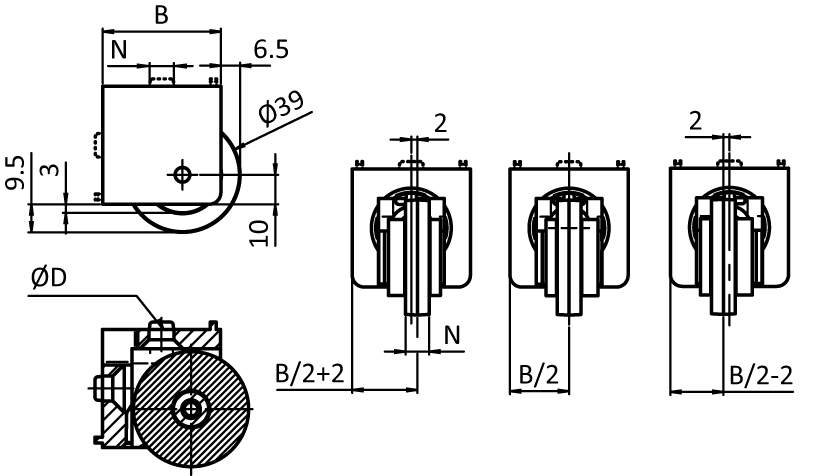

Product ID B (mm) ØD (mm) Set Profile Slot N (mm)
093095 40 8.5 Set 1 8
093097 40 12.5 Set 2 B 10
093098 45 12.5 Set 2 B 10
