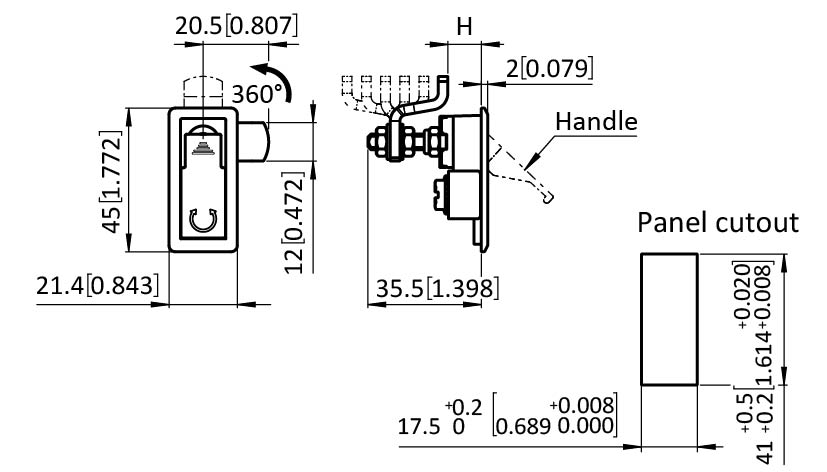

Small Lift & Turn Compression Latch 41 x 17.5, incl. Cam (Set)

Skip image gallery

€0.00*

Prices excl. VAT plus shipping costs

Color
H (mm)
Insert type
Material
Surface
Part #: 0813320

Product information "Small Lift & Turn Compression Latch 41 x 17.5, incl. Cam (Set)"

Color:
Handle: Black / chrome
Housing: Black / chrome

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

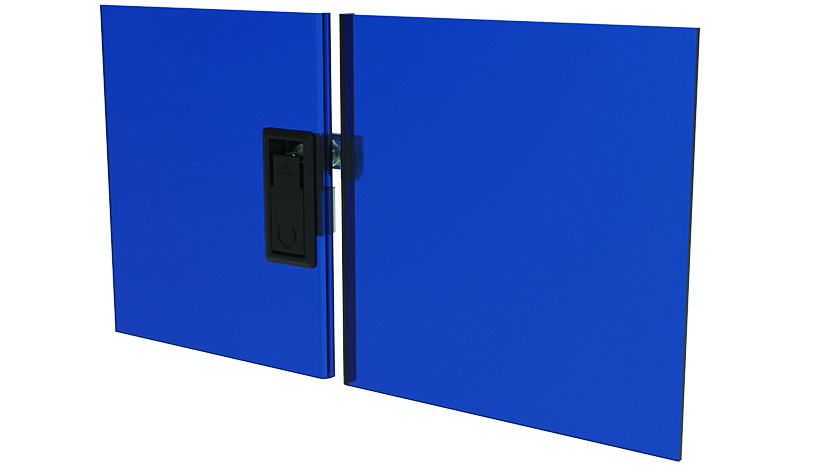

For easy, secure and compressive latching and locking of doors and flaps

Material:
Handle: Zinc die-cast
Shaft: Steel
Return spring: Spring steel SS9260
Housing: Zinc die-cast
Cam: Steel
Mounting bracket: Steel
Srew: Steel
Washers: Steel
Assembly material: Steel

Surface:
Handle: Powder coated / chrome plated
Shaft: Zinc plated
Housing: Powder coated / chrome plated
Cam: Zinc plated
Mounting bracket: Zinc plated
Screw: Zinc plated
Washers: Zinc plated
Assembly material: Zinc plated
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Customs Tariff Number Export: 83014090
ERP Number: 139338
Pack Quantity: 10 pieces
Weight (g): 58.7
Zolltarifnummer: 83014090000

Variants

Product ID Color Material Insert type Surface H (mm)
0813318 Black Zinc die-cast Non-locking Powder coated 4.5 - 10.5 / 34.5 - 40.5
0813319 Chrome Zinc die-cast Non-locking Chrome plated 4.5 - 10.5 / 34.5 - 40.5
0813320 Black Zinc die-cast Non-locking Powder coated 10.5 - 16. / 28.5 - 34.5
0813321 Chrome Zinc die-cast Non-locking Chrome plated 10.5 - 16. / 28.5 - 34.5
0813322 Black Zinc die-cast Non-locking Powder coated 16.5 - 22.5 / 22.5 - 28.5
0813323 Chrome Zinc die-cast Non-locking Chrome plated 16.5 - 22.5 / 22.5 - 28.5

CAD Downloads

Certificates

RoHS Certificate
REACH Certificate
POP Certificate
Conflict Minerals Certificate
