Small Quarter Turn Lock 16.3 / 13.5, SS, incl. Cam (Set)

Product information "Small Quarter Turn Lock 16.3 / 13.5, SS, incl. Cam (Set)"

Color:
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:
For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Stainless steel SS316
Housing: Stainless steel SS316
Cam: Steel
Seals: Rubber NBR
Nut: Stainless steel SS316
Screw: Stainless steel SS316

Surface:
Cam: Zinc plated

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Door Version: Right, left
Pack Quantity: 10 pieces
Weight (g): 30.8

Variants

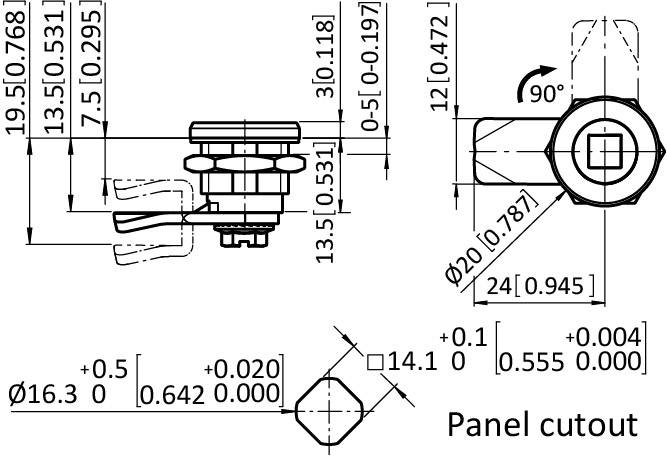

Product ID H (mm) Insert type
0810591 7.5 Square 6.0 mm
0810592 7.5 Triangular 6.5 mm
0810593 7.5 Slotted recess 1.5 mm
0810594 7.5 Handle type
0810597 13.5 Square 6.0 mm
0810600 13.5 Triangular 6.5 mm
0810603 13.5 Slotted recess 1.5 mm
0810606 13.5 Handle type
0810609 19.5 Square 6.0 mm
0810612 19.5 Triangular 6.5 mm
0810615 19.5 Slotted recess 1.5 mm
0810618 19.5 Handle type
