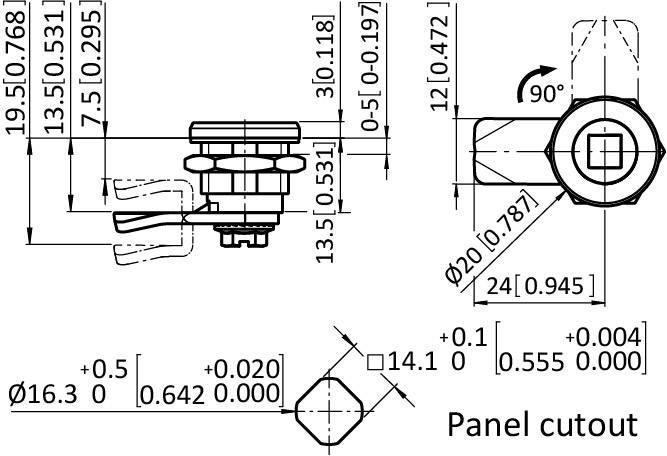

Small Quarter Turn Lock 16.3 / 13.5, ZN Chrome, incl. Cam (Set)

Product information "Small Quarter Turn Lock 16.3 / 13.5, ZN Chrome, incl. Cam (Set)"

Color:
Insert: Chrome
Housing: Chrome
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

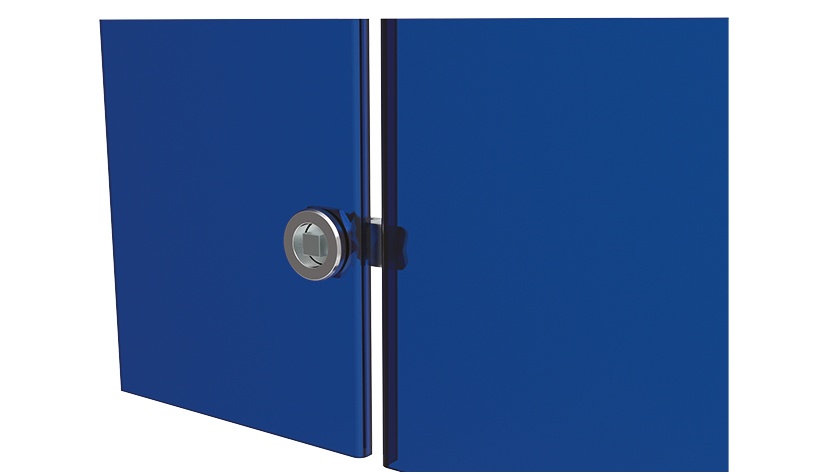

For easy and secure latching and locking of doors and flaps;
Wide range of inserts, cams and accessories

Material:
Insert: Zinc die-cast / plastic PA
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Nut: Steel
Screw: Steel

Surface:
Insert: Chrome plated / -
Housing: Chrome plated
Cam: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Door Version: Right, left
IP Rating: IP65 / NEMA 4
Pack Quantity: 10 pieces
Weight (g): 27.6

Variants

Product ID H (mm) Insert type
0810447 7.5 Square 6.0 mm
0810449 7.5 Triangular 6.5 mm
0810451 7.5 Slotted recess 1.5 mm
0810453 7.5 Handle type
0810595 13.5 Square 6.0 mm
0810598 13.5 Triangular 6.5 mm
0810601 13.5 Slotted recess 1.5 mm
0810604 13.5 Handle type
0810607 19.5 Square 6.0 mm
0810610 19.5 Triangular 6.5 mm
0810613 19.5 Slotted recess 1.5 mm
0810616 19.5 Handle type
