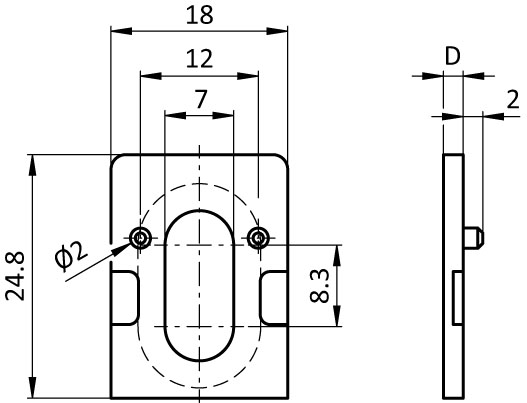

Spacer CS for Uni Blocks 18 / 25, Black
€0.00

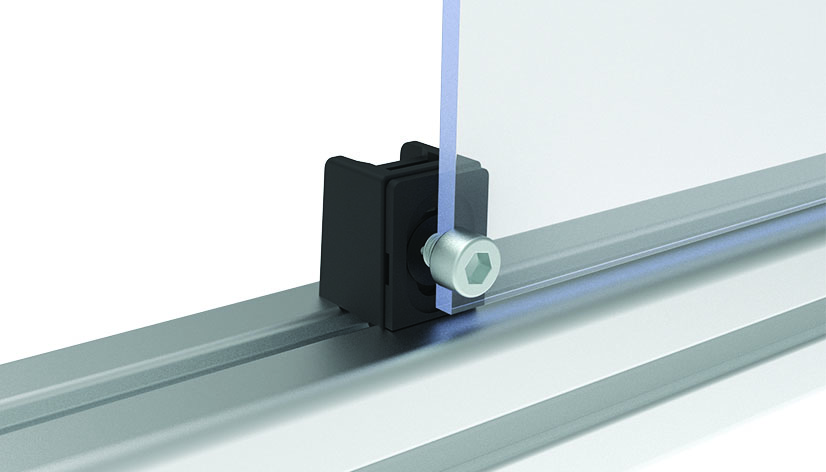

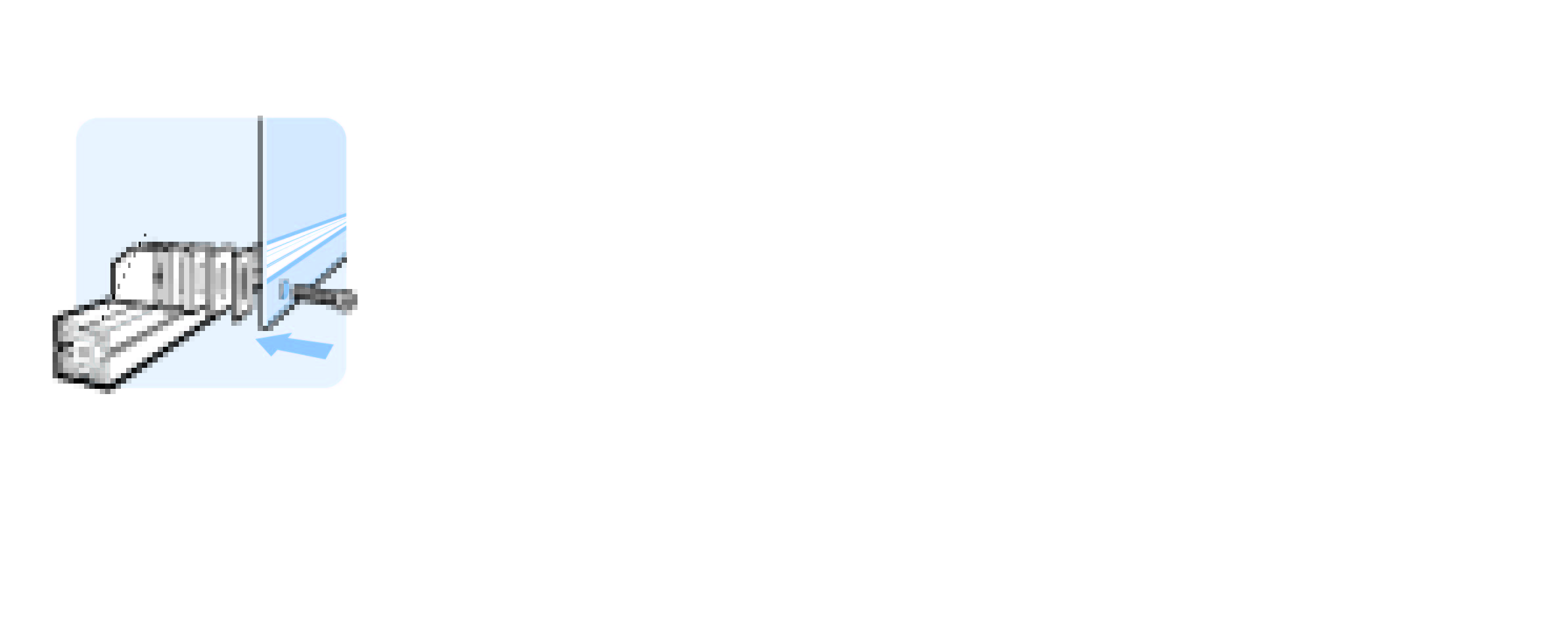

For height adjustment of the contact surfaces, for flush mounting of panels
Plastic PA, glass fiber reinforced
Color:
Black
Tip:
Compatible Uni Block see 094100M4, 094100CSM6, 094003M4, 094003CSM6, 094020CLIPM6, 094003GM6 and 094010M4
Tip 2:
* No further spacers can be added!
Delivery Countries:
Worldwide
| Pack Quantity: | 100 pieces |
|---|---|
| Model: | Plastic PA |
| Weight (g): | 0.8 |
| ERP Number: | 125550 |
Classifications
- ECLASS 6.0
- 23369290
- ECLASS 7.0
- 23369290
- ECLASS 8.0
- 23369290
- ECLASS 9.0
- 23369290
- ECLASS 10.0
- 23369290
- ECLASS 11.0
- 23360492
- ECLASS 12.0
- 23360492
- ECLASS 13.0
- 23360492
- Zolltarifnummer
- 39269097900
- Customs Tariff Number Export
- 39269097
Certificates
