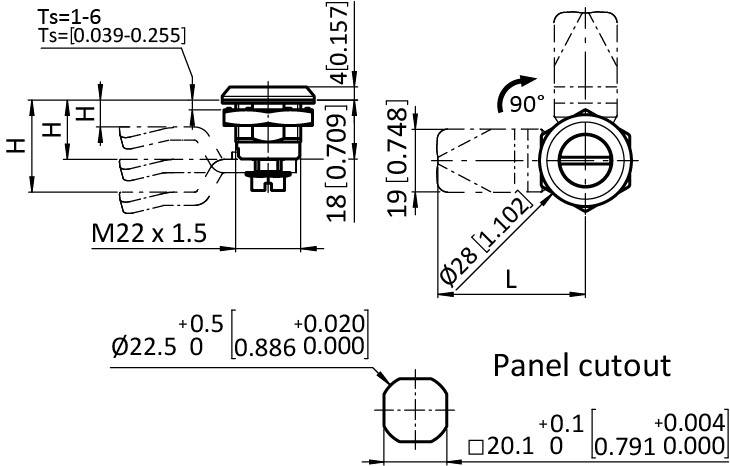

Spring Style Quarter Turn Lock 22.5 / 13

Product information "Spring Style Quarter Turn Lock 22.5 / 13"

Color:
Seal: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

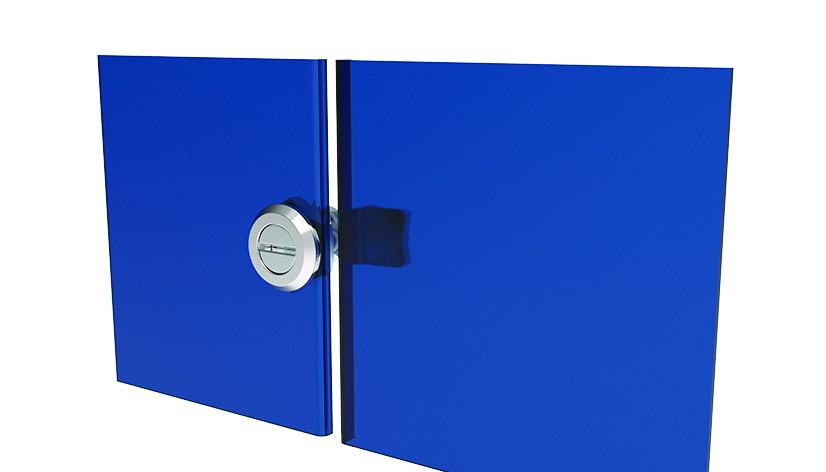

For easy and secure latching and locking of doors and flaps;
Wide range of cams and accessories

Material:
Insert: Stainless steel SS316
Housing: Stainless steel SS316
Cam: Steel
Seal: Rubber NBR
Nut: Stainless steel SS316
Screw: Stainless steel SS316

Surface:
Cam: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Pack Quantity: 10 pieces
Weight (g): 97.2

Variants

Product ID Insert type
0810127ES01 Slotted recess 2 x 4
