Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Offset (Set)

Product information "Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Offset (Set)"

Color:
Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

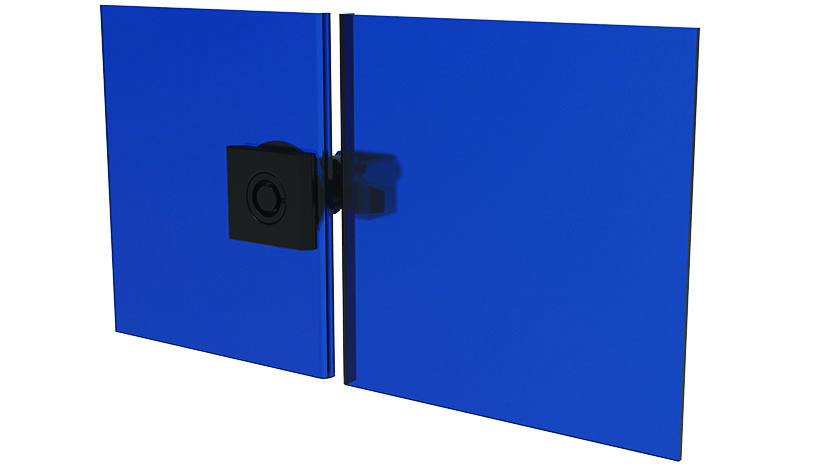

For easy, secure and compressive latching and locking of doors and flaps

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Steel
Assembly material: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Retaining spring: Zinc plated
Housing: Powder coated
Cam: Zinc plated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Door Version: Right, left
IP Rating: IP65 / NEMA 4
Pack Quantity: 10 pieces
Weight (g): 162.6

Variants

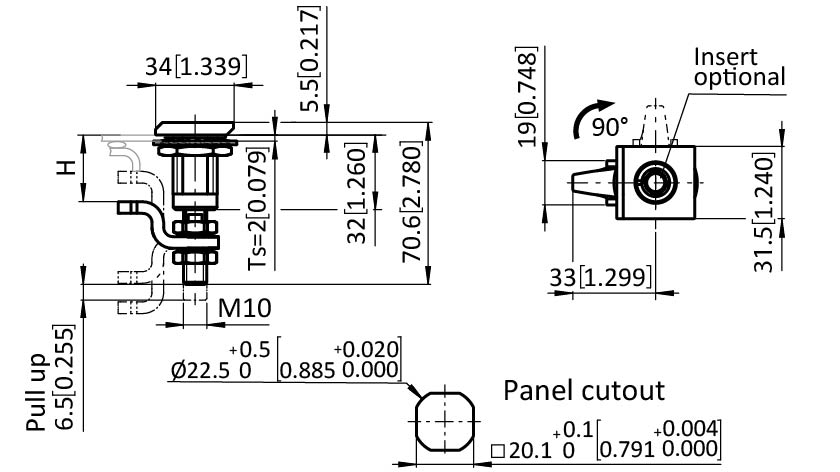

Product ID H (mm) Insert type
0813072 11.4 - 27.2 / 66.3 - 76.2 Tubular
0813073 11.4 - 27.2 / 66.3 - 76.2 Double bit 3.0 mm
0813074 11.4 - 27.2 / 66.3 - 76.2 Triangular 7.0 mm
0813075 11.4 - 27.2 / 66.3 - 76.2 Triangular 8.0 mm
0813076 11.4 - 27.2 / 66.3 - 76.2 Square 7.0 mm
0813077 11.4 - 27.2 / 66.3 - 76.2 Square 8.0 mm
0813078 11.4 - 27.2 / 66.3 - 76.2 Slotted recess
0813079 11.4 - 27.2 / 66.3 - 76.2 Female hexagon 8.0 mm
0813080 11.4 - 27.2 / 66.3 - 76.2 Male hexagon 10.0 mm
0813081 25.4 - 41.1 / 52.6 - 68.3 Tubular
0813082 25.4 - 41.1 / 52.6 - 68.3 Double bit 3.0 mm
0813083 25.4 - 41.1 / 52.6 - 68.3 Triangular 7.0 mm
0813084 25.4 - 41.1 / 52.6 - 68.3 Triangular 8.0 mm
0813085 25.4 - 41.1 / 52.6 - 68.3 Square 7.0 mm
0813086 25.4 - 41.1 / 52.6 - 68.3 Square 8.0 mm
0813087 25.4 - 41.1 / 52.6 - 68.3 Slotted recess
0813088 25.4 - 41.1 / 52.6 - 68.3 Female hexagon 8.0 mm
0813089 25.4 - 41.1 / 52.6 - 68.3 Male hexagon 10.0 mm
