Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Straight (Set)

Product information "Square Face Compression Latch 22.5 / 32, Long Shaft, incl. Cam Straight (Set)"

Color:
Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

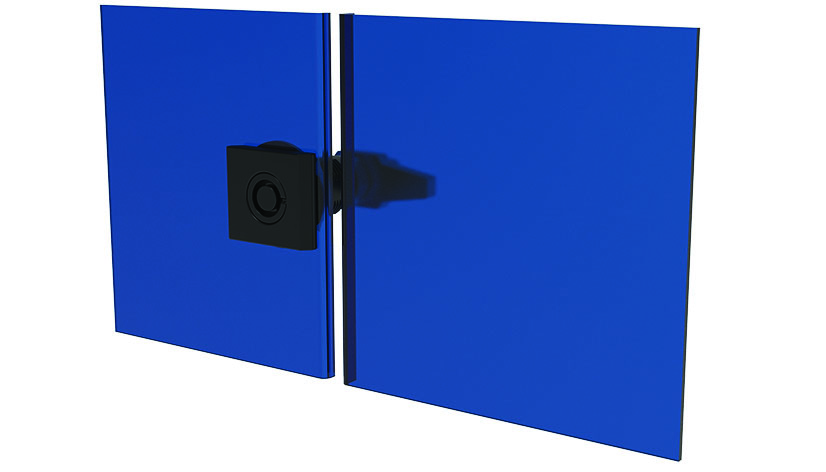

For easy, secure and compressive latching and locking of doors and flaps

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Steel
Assembly material: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Retaining spring: Zinc plated
Housing: Powder coated
Cam: Zinc plated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Door Version: Right, left
IP Rating: IP65 / NEMA 4
Pack Quantity: 10 pieces
Weight (g): 164.7

Variants

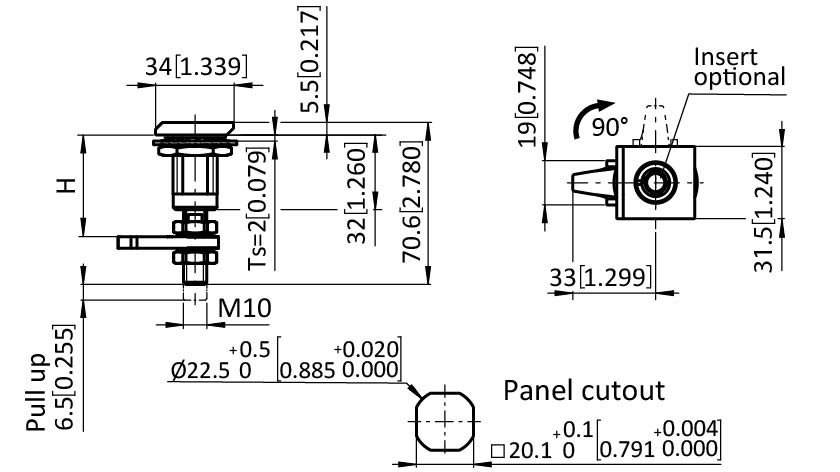

Product ID H (mm) Insert type
0813090 38.9 - 54.6 Tubular
0813091 38.9 - 54.6 Double bit 3.0 mm
0813092 38.9 - 54.6 Triangular 7.0 mm
0813093 38.9 - 54.6 Triangular 8.0 mm
0813094 38.9 - 54.6 Square 7.0 mm
0813095 38.9 - 54.6 Square 8.0 mm
0813096 38.9 - 54.6 Slotted recess
0813097 38.9 - 54.6 Female hexagon 8.0 mm
0813098 38.9 - 54.6 Male hexagon 10.0 mm
