Square Face Compression Latch 22.5 / 32

Product information "Square Face Compression Latch 22.5 / 32"

Color:
Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

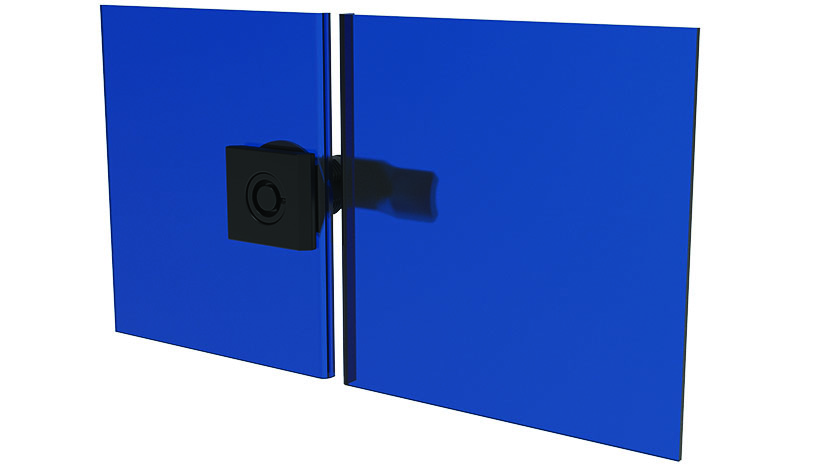

For easy, secure and compressive latching and locking of doors and flaps

Material:
Insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Steel
Screw: Steel

Surface:
Insert: Powder coated
Shaft: Zinc plated
Retaining spring: Zinc plated
Housing: Powder coated
Cam: Zinc plated
Washer: Zinc plated
Nut: Zinc plated
Screw: Zinc plated

Tip:
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Door Version: Right, left
IP Rating: IP65 / NEMA 4
Pack Quantity: 10 pieces
Weight (g): 120.7

Variants

Product ID Insert type
0813117 Tubular
0813118 Double bit 3.0 mm
0813119 Triangular 7.0 mm
0813120 Triangular 8.0 mm
0813121 Square 7.0 mm
0813122 Square 8.0 mm
0813123 Slotted recess
0813124 Female hexagon 8.0 mm
0813125 Male hexagon 10.0 mm
