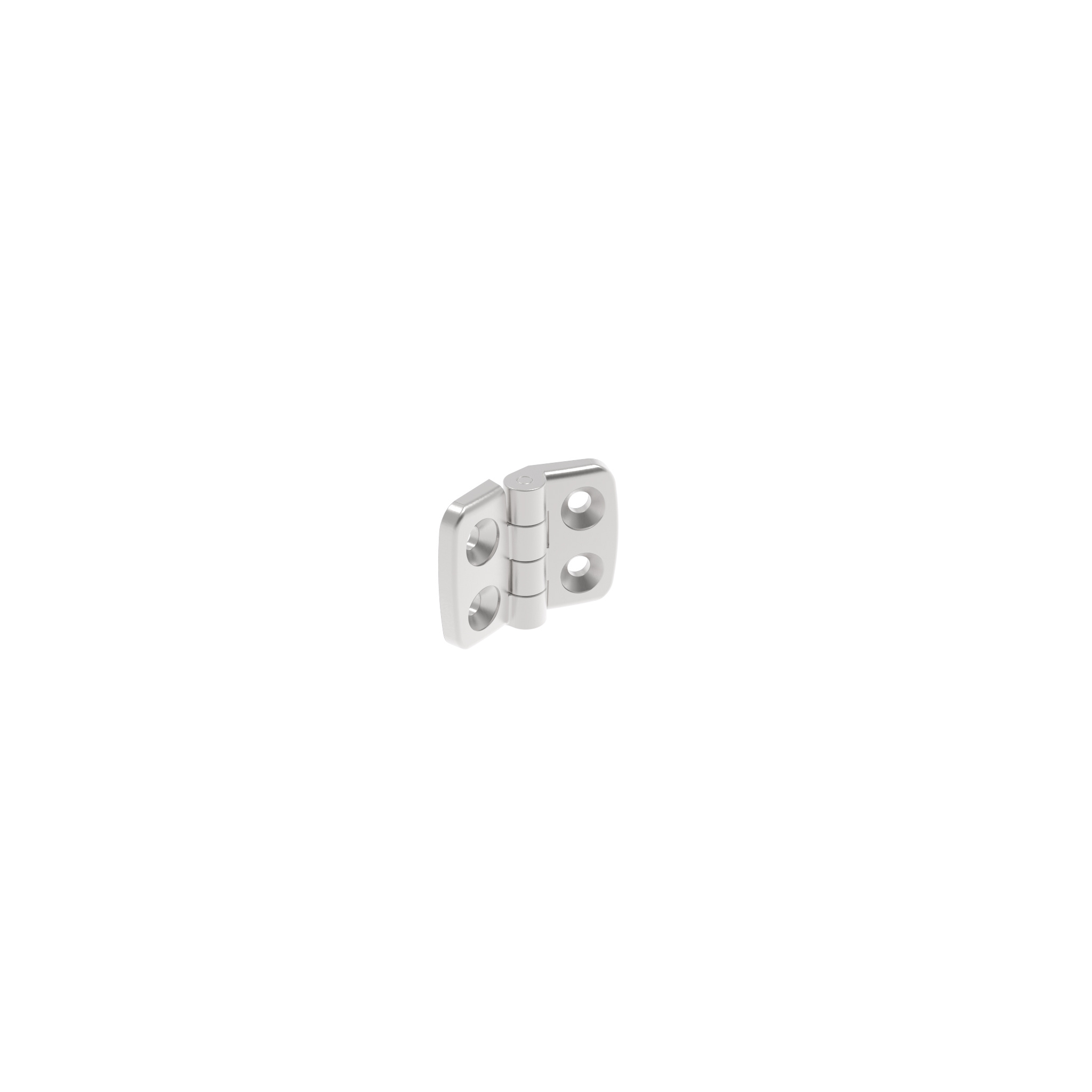

Stainless Steel Combi Hinge 20 MINI, Non-detachable

Product information "Stainless Steel Combi Hinge 20 MINI, Non-detachable"

Delivery Countries:
Worldwide

Description:

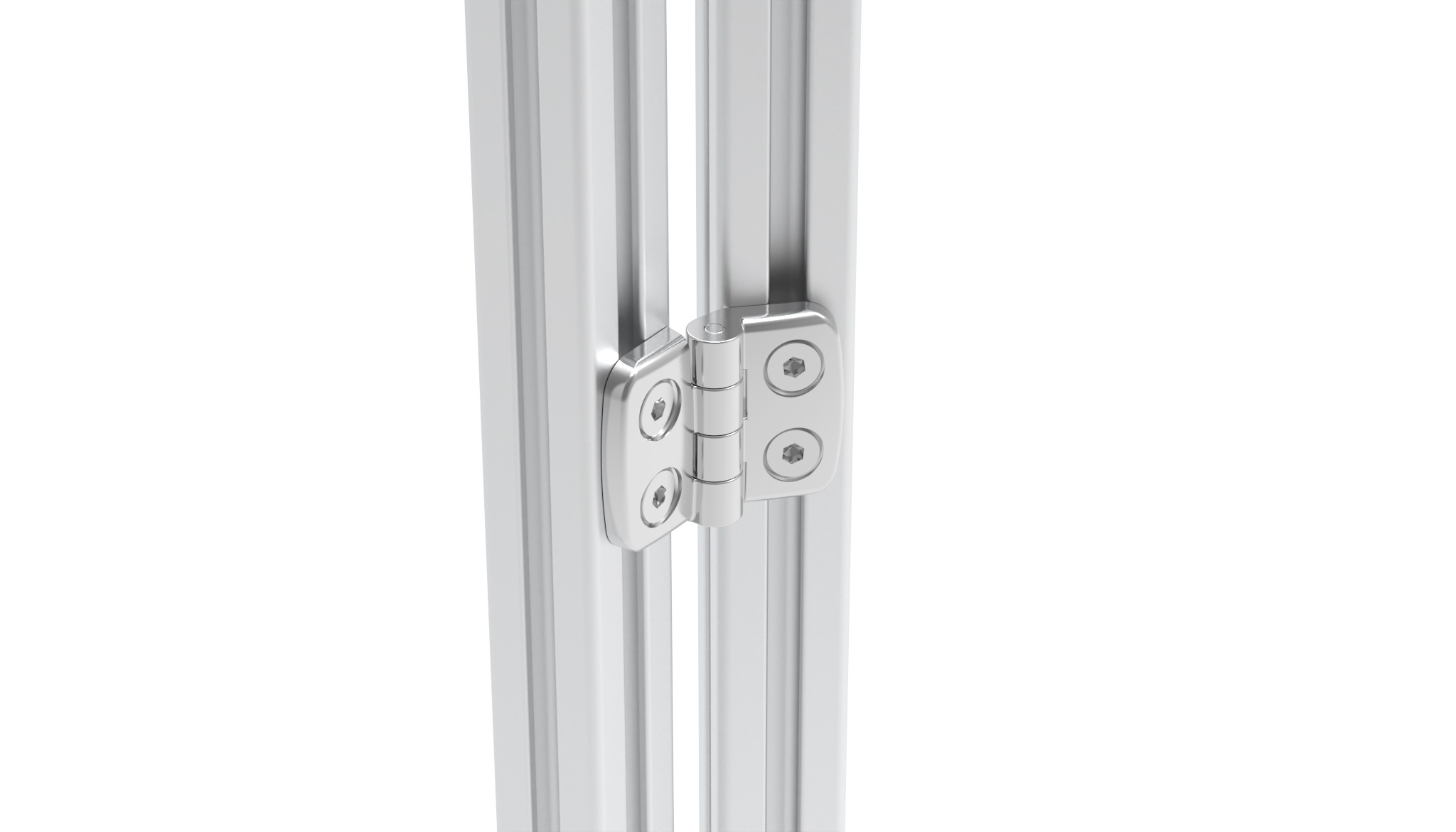

To hinge panels or aluminum profiles

Material:
Wing: Stainless steel SS316
Bolt: Stainless steel SS430 F

Surface:
Plain
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 83021000
Fastening: From the front, using M4 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 138.0
Zolltarifnummer: 83021000900
pA Number: 114072

Variants

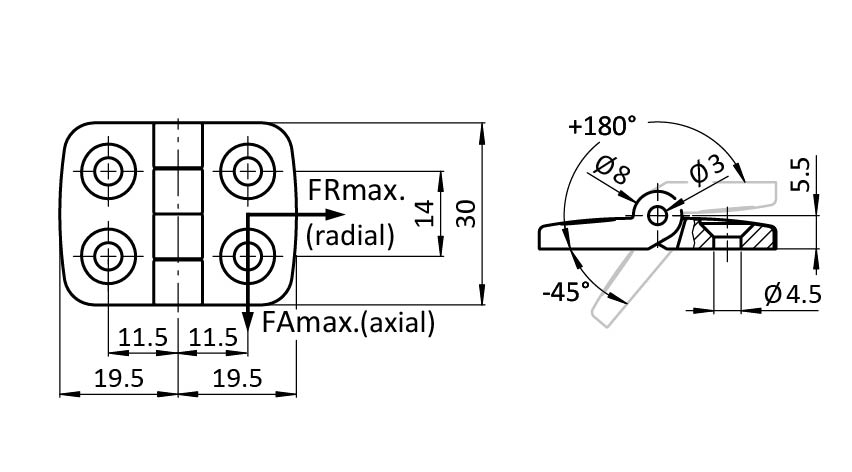

Product ID Combination B1 (mm) B2 (mm) A2 (mm) Version FAmax (N) A1 (mm)
095E2020F 20 / 20 19.0 19.0 11.5 Non-detachable 450 11.5
