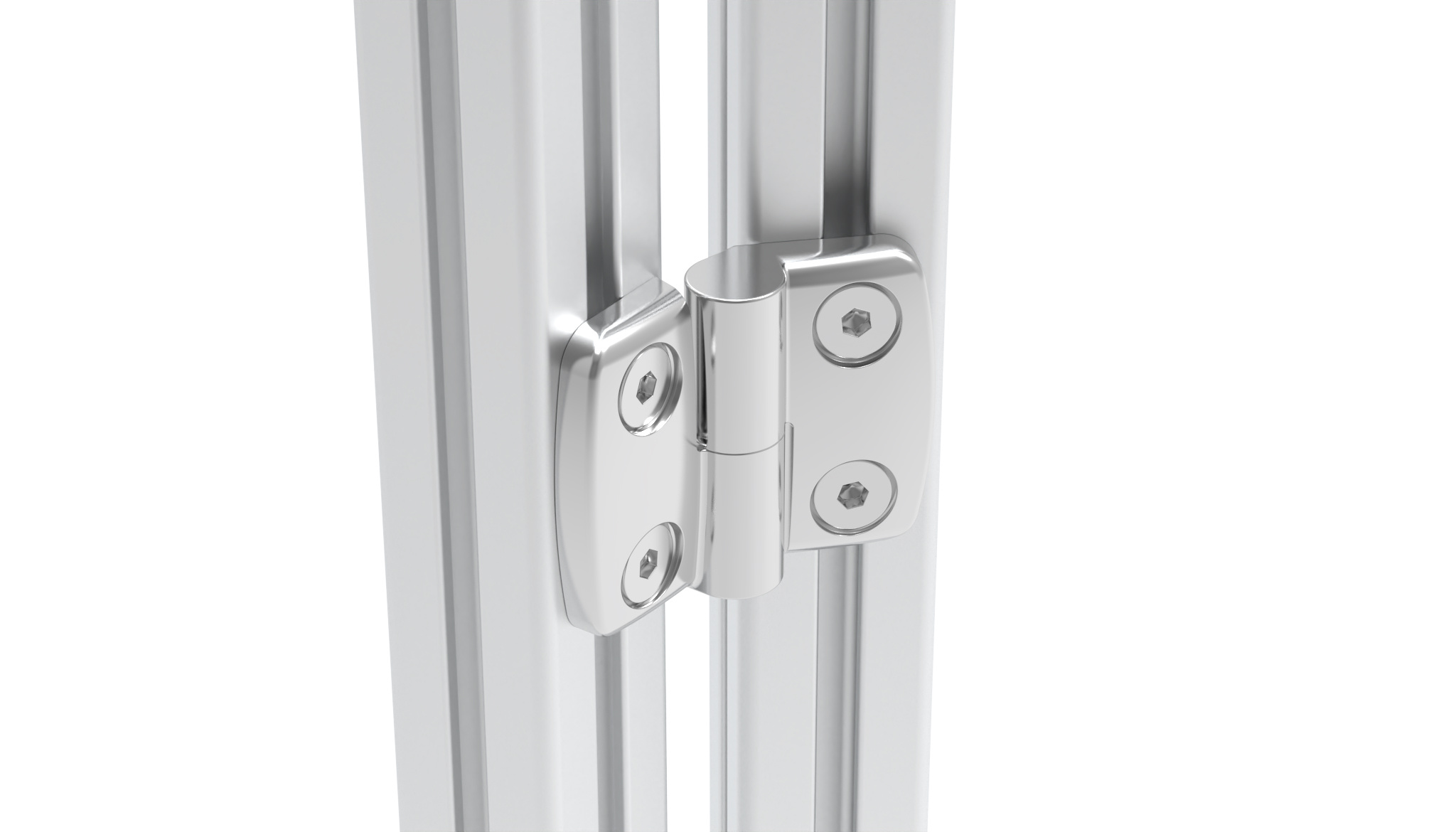

Stainless Steel Combi Hinge 30, Detachable

Product information "Stainless Steel Combi Hinge 30, Detachable"

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Material:
Wing: Stainless steel SS316
Bolt: Stainless steel SS430 F

Surface:
Plain
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Customs Tariff Number Export: 83021000
Fastening: From the front, using M6 countersunk screws
Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 160.0
Zolltarifnummer: 83021000900
pA Number: 114051

Variants

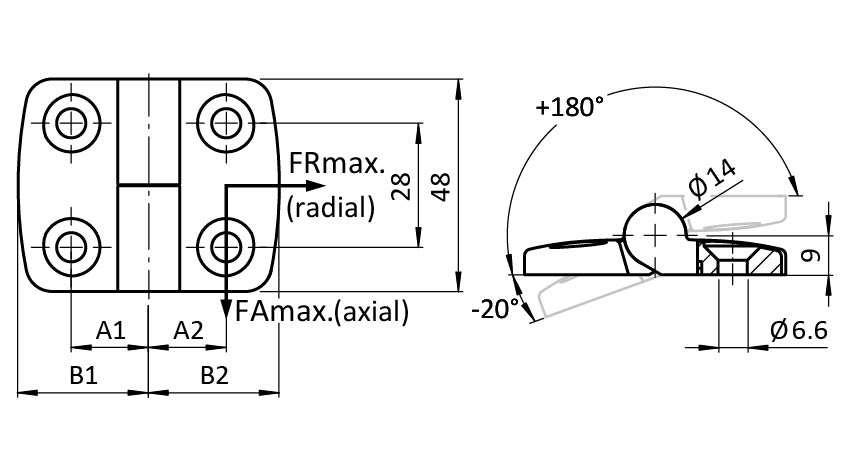

Product ID B1 (mm) A2 (mm) A1 (mm) FAmax (N) Combination B2 (mm) FRmax (N) Version

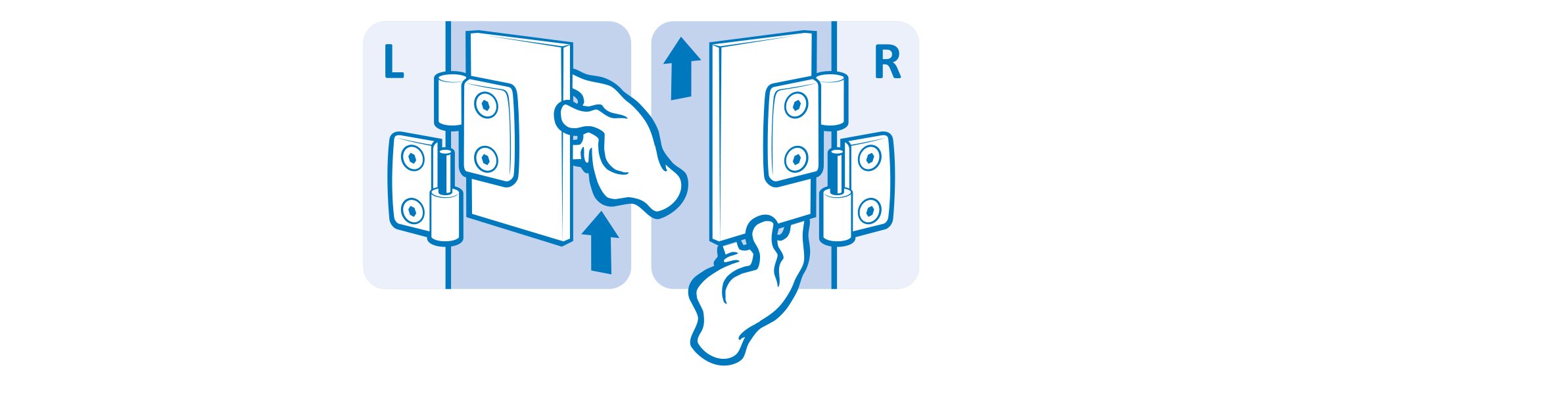

095E3030L 29.5 17.5 17.5 710 30 / 30 29.5 1000 L: Left
095E3030R 29.5 17.5 17.5 710 30 / 30 29.5 1000 R: Right
