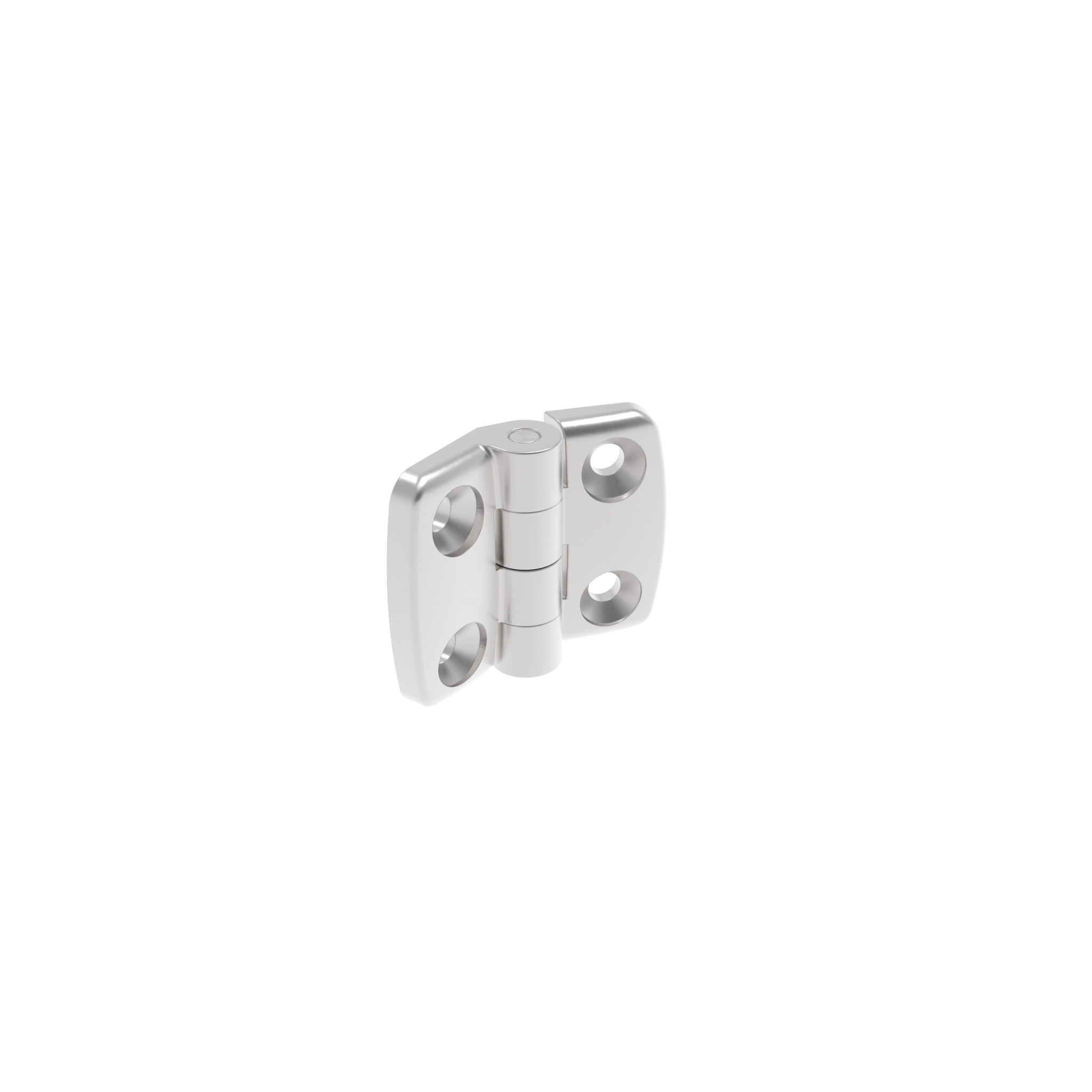

Stainless Steel Combi Hinge 30, Non-detachable

Product information "Stainless Steel Combi Hinge 30, Non-detachable"

Delivery Countries:
Worldwide

Description:

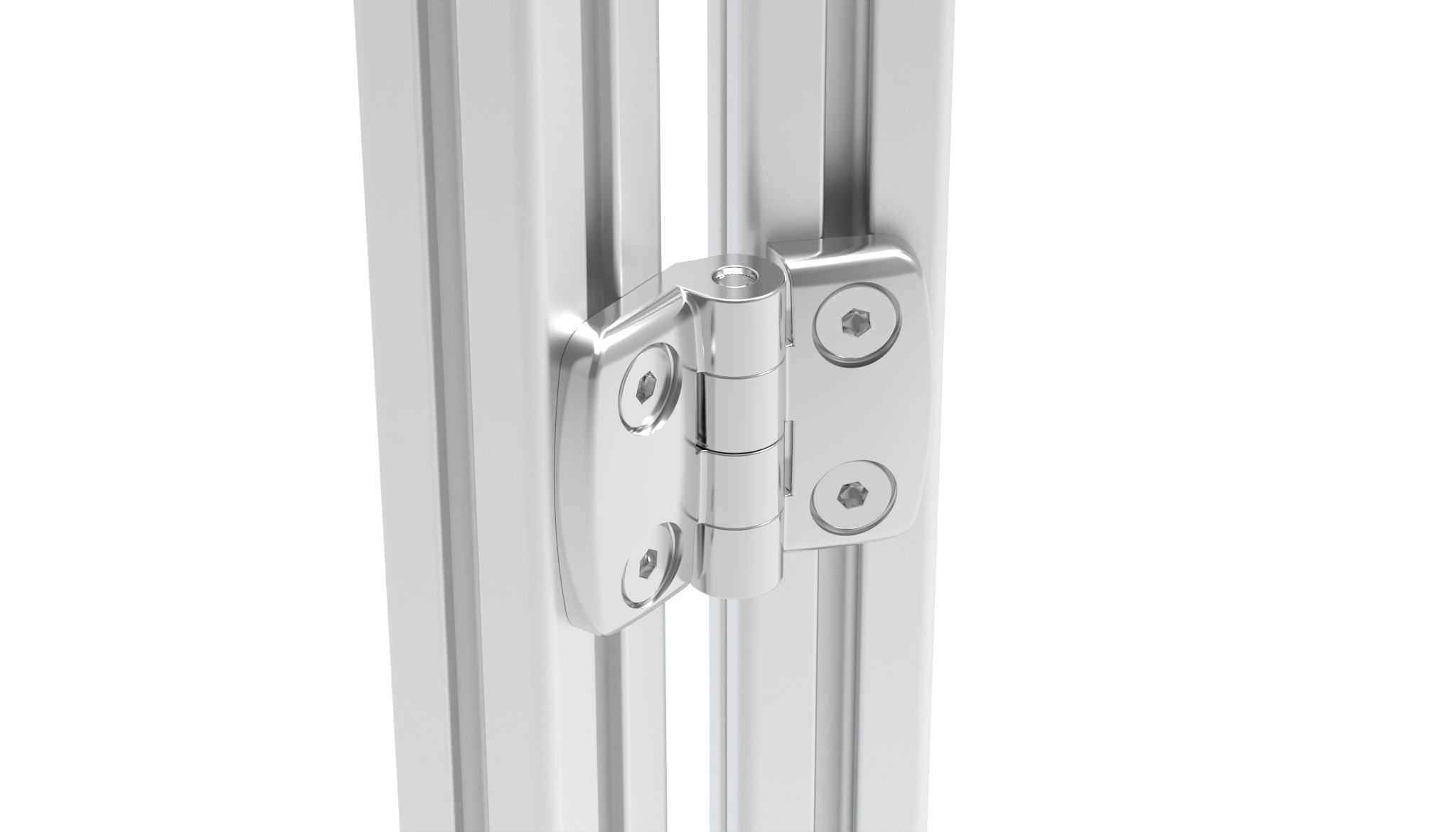

To hinge panels or aluminum profiles

Material:
Wing: Stainless steel SS316
Bolt: Stainless steel SS430 F

Surface:
Plain

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws
Model: Non-detachable
Pack Quantity: 10 pieces
Weight (g): 167.0

Variants

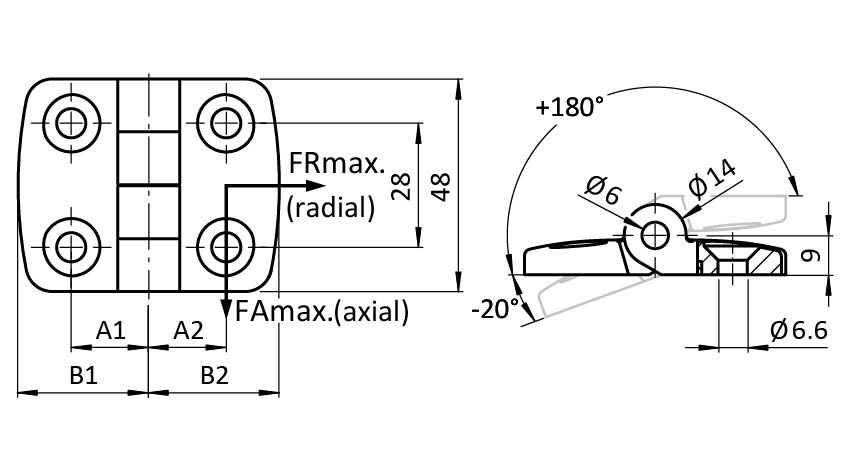

Product ID B1 (mm) A2 (mm) A1 (mm) FAmax (N) Version Combination B2 (mm)
095E3030F 29.5 17.5 17.5 575 Non-detachable 30 / 30 29.5
