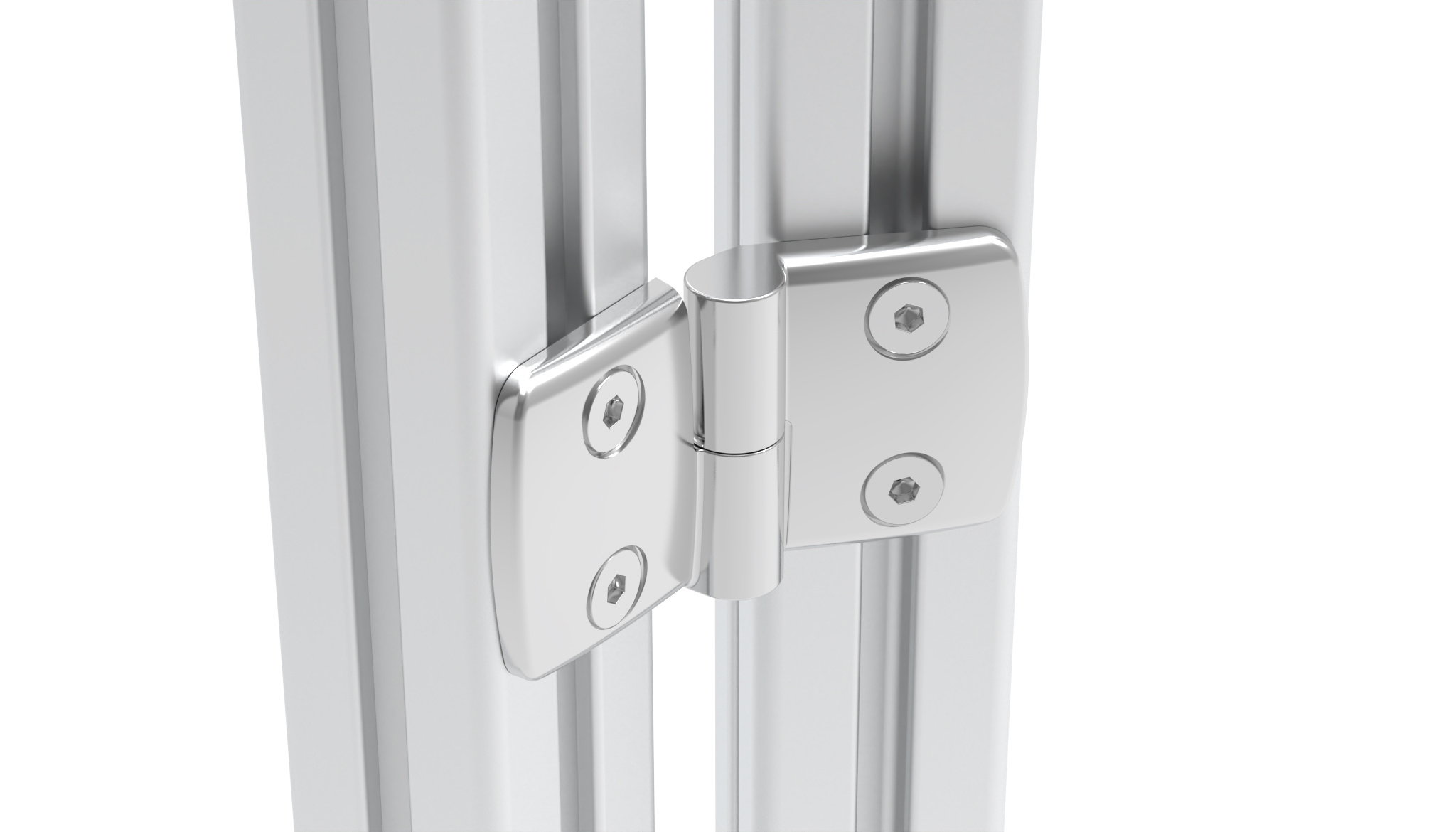

Stainless Steel Combi Hinge 45, Detachable

Product information "Stainless Steel Combi Hinge 45, Detachable"

Delivery Countries:
Worldwide

Description:
To hinge panels or aluminum profiles

Material:
Wing: Stainless steel SS316
Bolt: Stainless steel SS430 F

Surface:
Plain

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the front, using M6 countersunk screws

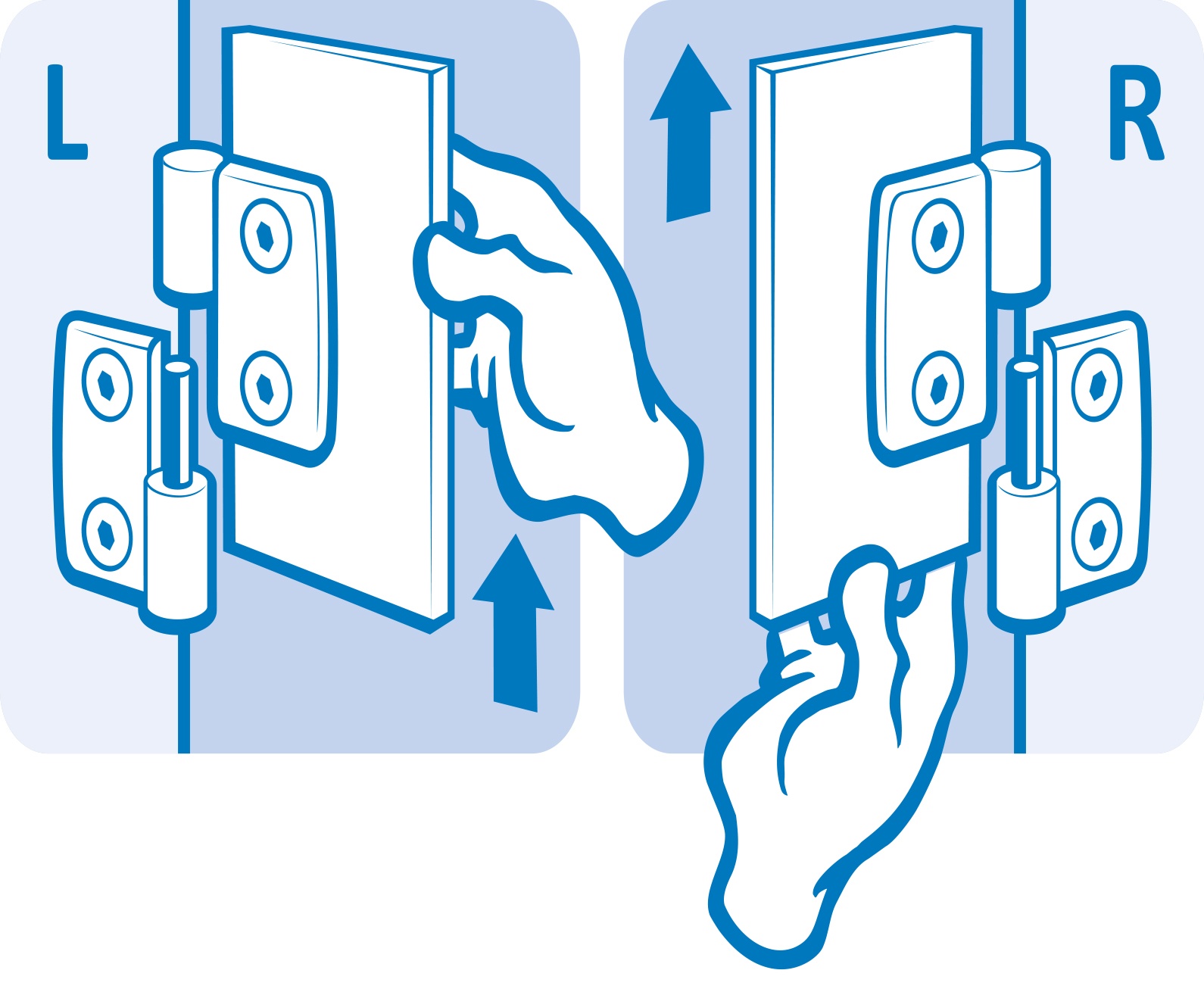

Model: Detachable
Pack Quantity: 10 pieces
Weight (g): 224.0

Variants

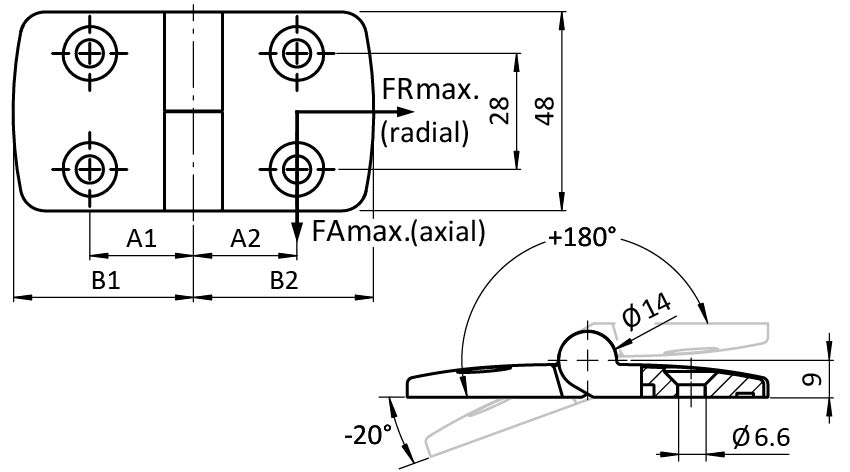

Product ID B2 (mm) FRmax (N) B1 (mm) A1 (mm) A2 (mm) FAmax (N) Combination Version
095E4545L 42.5 1200 42.5 25.0 25.0 450 45 / 45 L: Left
095E4545R 42.5 1200 42.5 25.0 25.0 450 45 / 45 R: Right
