Steel Connection Angle 40 EH

Product information "Steel Connection Angle 40 EH"

Delivery Countries:
Worldwide

Description:

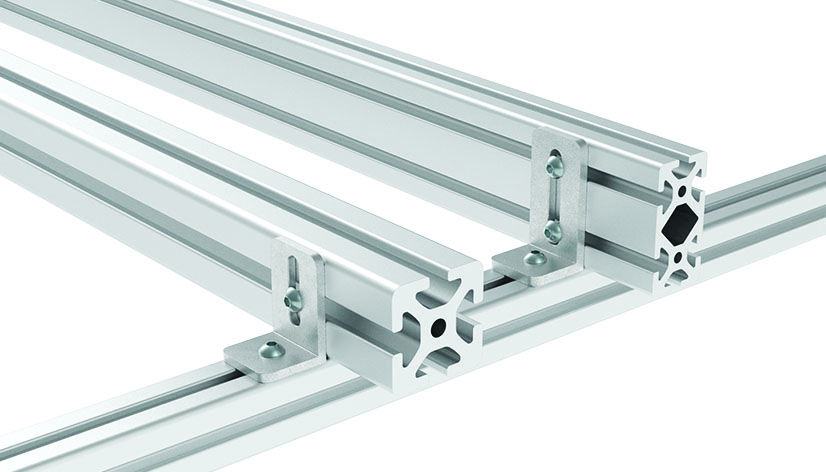

To connect two aluminum profiles at right angles

Material:
Steel

Specials:
Other surfaces on request

Surface:
Zinc plated
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 73269098
Model: Steel, profile 40 and up
Pack Quantity: 10 pieces
Weight (g): 190.0
Zolltarifnummer: 73269098900
pA Number: 136903

Variants

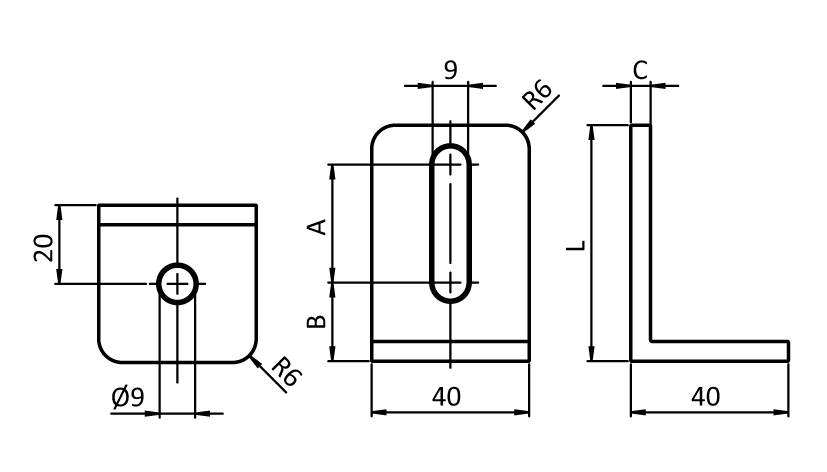

Product ID C (mm) A (mm) L (mm) B (mm)
093WU4060V 5.0 30.0 60.0 20.0
093WU4080V 6.0 50.0 80.0 16.0
