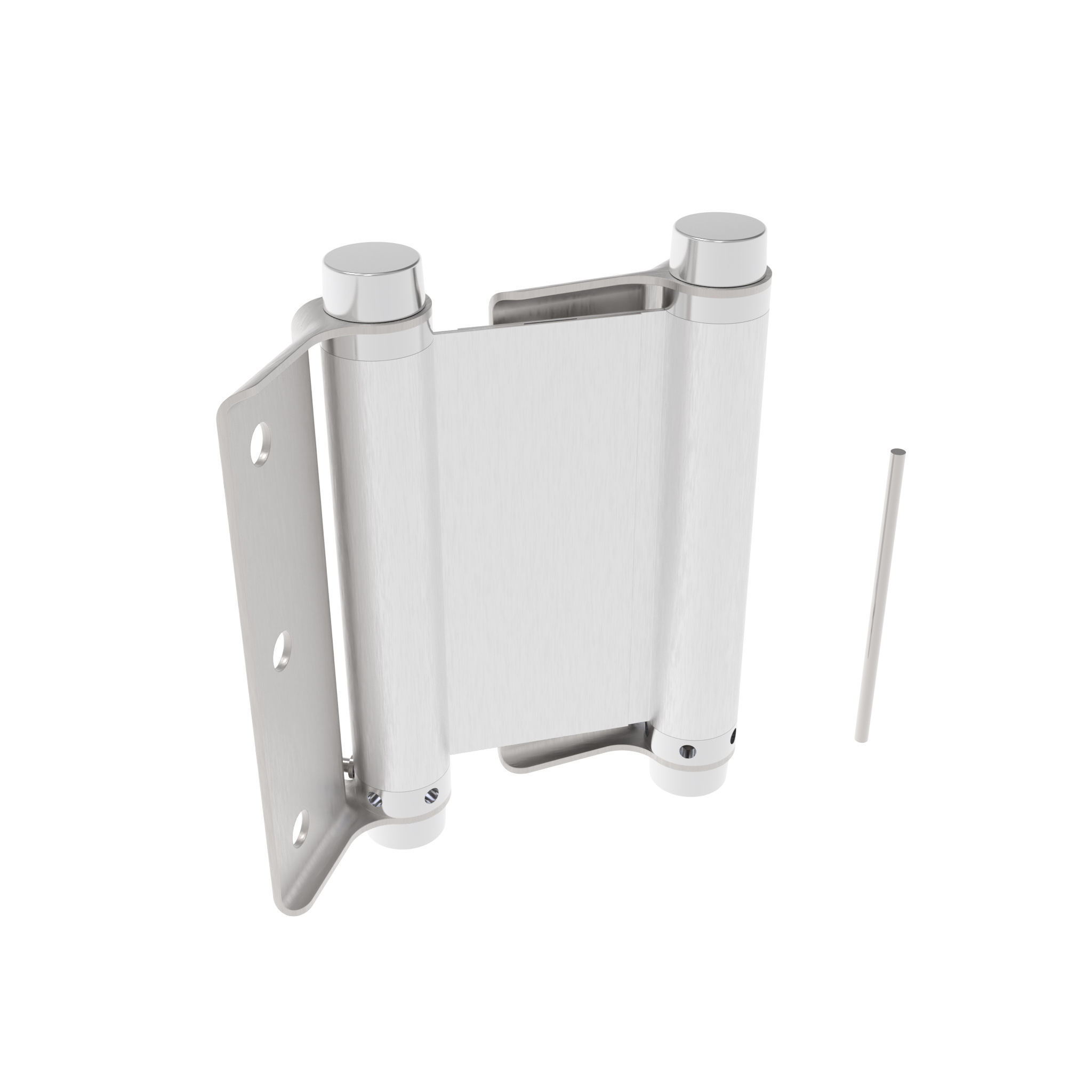

Swing Door Hinge SS 40 / 38 - 1.5"

Product information "Swing Door Hinge SS 40 / 38 - 1.5""

Delivery Countries:
Worldwide

Description:

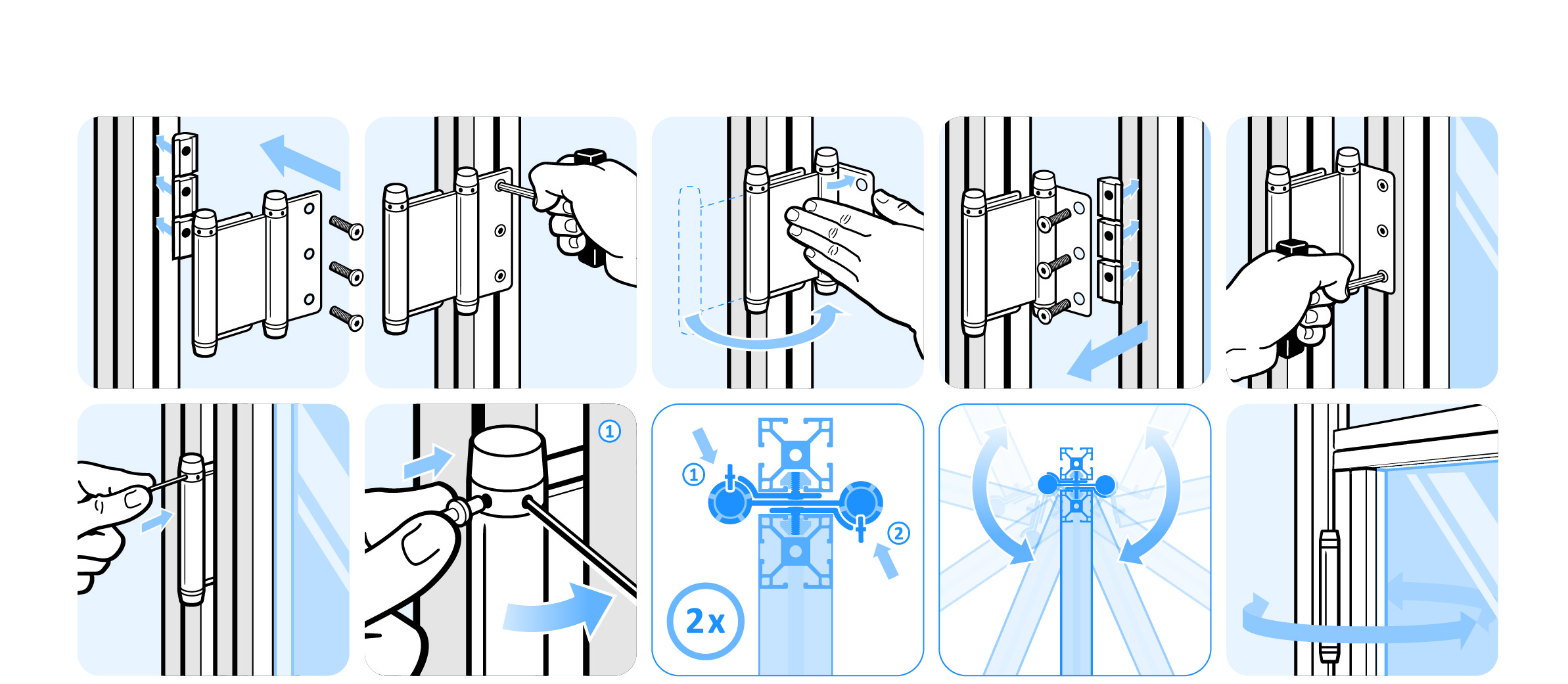

To build self-closing passage doors, double action; use tension pin to adjust spring load and set it with retaining pins

Material:
Hinge: Stainless steel SS201
Caps: Zinc die-cast
Tension pin: Steel
Retaining pins: Steel

Surface:
Caps: Chrome plated
Tension pin: Zinc plated
Retaining pins: Nickel plated

Zolltarifnummer:
83021000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090
Fastening: From the back, using M6 screws
Model: Non-detachable
Pack Quantity: 1 piece
Weight (g): 345.5

Variants

Product ID
095SL4040E

CAD Downloads

Certificates
