Swivel Caster Arm I 40 x 80 (Set)

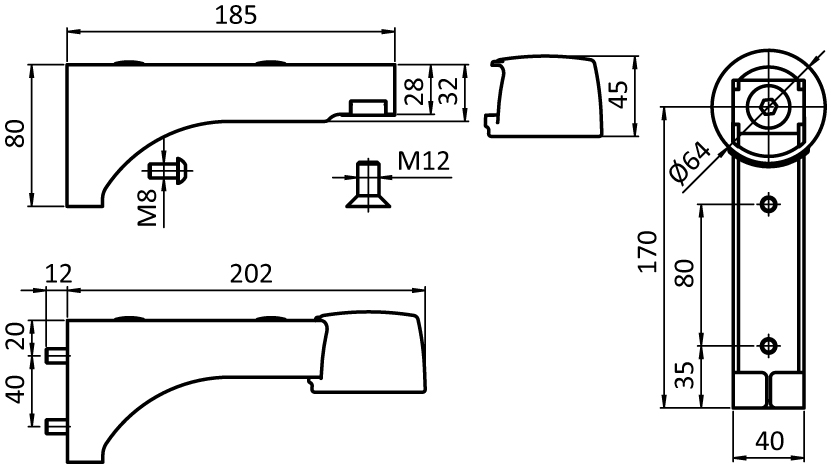

Swivel Caster Arm I 40 x 80 (Set) – technical drawing

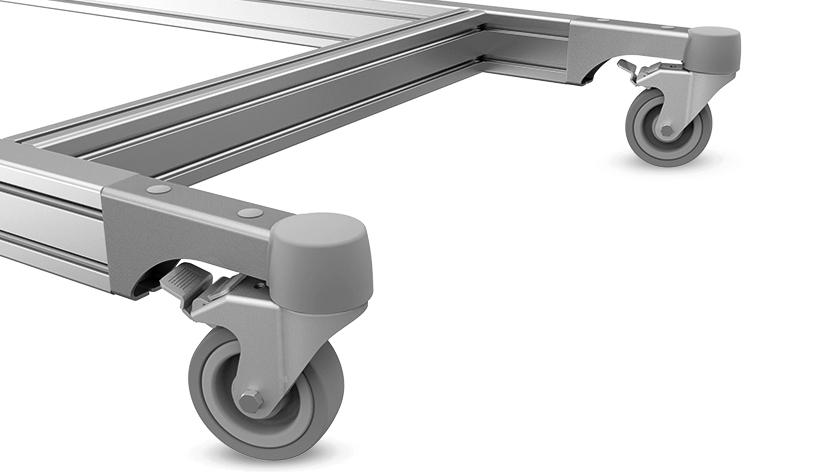

Swivel Caster Arm I 40 x 80 (Set) – application example

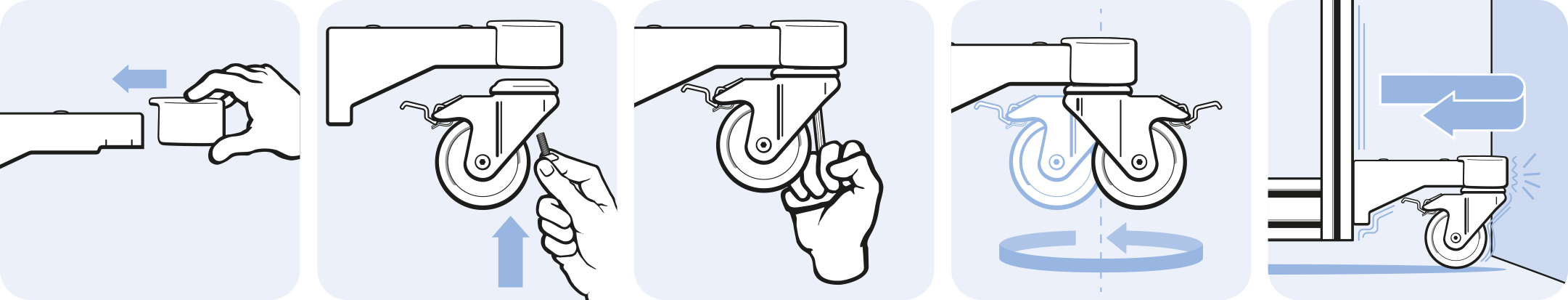

Swivel Caster Arm I 40 x 80 (Set) – assembly graphic

€0.00

Profile

I

Part #: 098SA170T4080S01

Pack Quantity: 10 pieces

Description:
To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake;
higher stability against overturning due to lower center of gravity, icl. side impact protection;
Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

Material:
Arm: Steel
Bumper: Plastic TPE, ≈ 70 Shore A
Screw: Steel
Cover cap: Plastic

Surface:
Arm: Powder coated
Screw: Zinc plated

Color:
Arm: Alu color
Bumper: Gray ≈ RAL 7042
Cover cap: Gray ≈ RAL 7042

Set:
1 caster arm,
1 bumper,
2 screw DIN EN ISO 7380 (DIN 34805) - M8 x 16,
1 screw DIN EN ISO 10642 (DIN 7991) - M10 x 25,
2 cover cap

Tip:
Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide
