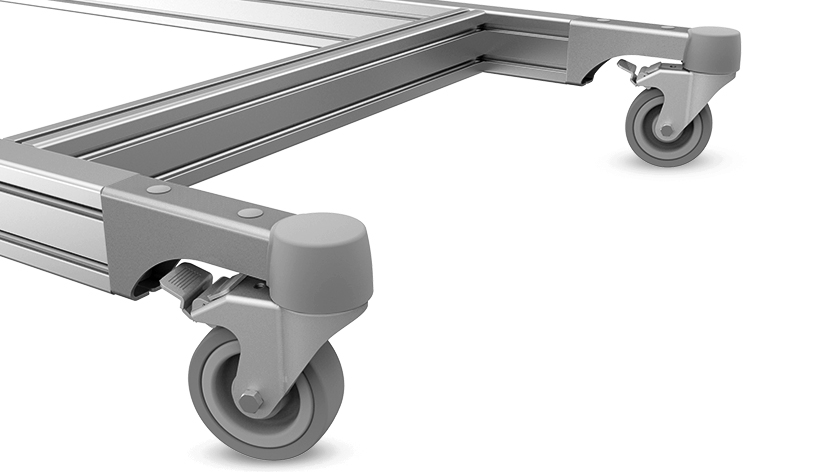

Swivel Caster Arm I 40 x 80 (Set)
Product number:
098SA170T4080S01
Product information "Swivel Caster Arm I 40 x 80 (Set)"
Color:
Arm: Alu color
Bumper: Gray ≈ RAL 7042
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:
To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake;
higher stability against overturning due to lower center of gravity, icl. side impact protection;

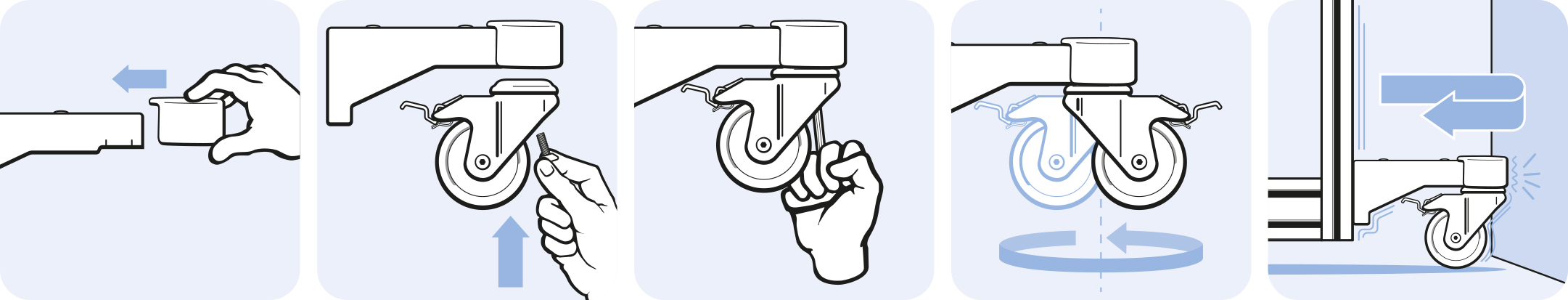

Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Arm: Steel
Bumper: Plastic TPE, ≈ 70 Shore A
Screw: Steel
Cover cap: Plastic
Set:
1 caster arm,
1 bumper,
2 screw ISO 7380 - M8 x 16,
1 screw DIN 7991 - M10 x 25,
2 cover cap
Specials:
Other surfaces, other colors on request
Surface:
Arm: Powder coated
Screw: Zinc plated
Tip:
Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx
Arm: Alu color
Bumper: Gray ≈ RAL 7042
Cover cap: Gray ≈ RAL 7042
Delivery Countries:
Worldwide
Description:
To mount 360° rotating swivel casters with bolt hole pattern in the back - also with double system brake;
higher stability against overturning due to lower center of gravity, icl. side impact protection;
Swivel caster arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Material:
Arm: Steel
Bumper: Plastic TPE, ≈ 70 Shore A
Screw: Steel
Cover cap: Plastic
Set:
1 caster arm,
1 bumper,
2 screw ISO 7380 - M8 x 16,
1 screw DIN 7991 - M10 x 25,
2 cover cap
Specials:
Other surfaces, other colors on request
Surface:
Arm: Powder coated
Screw: Zinc plated
Tip:
Compatible Swivel Caster D80, D100 or D125 see 098S080xxx, 098S100xxx or 098S125xxx
| (ECLASS 6.0): | 23379090 |
|---|---|
| (ECLASS 7.0): | 23379290 |
| (ECLASS 8.0): | 23379290 |
| (ECLASS 9.0): | 23379290 |
| (ECLASS 10.0): | 23379290 |
| (ECLASS 11.0): | 23370292 |
| (ECLASS 12.0): | 23370292 |
| (ECLASS 13.0): | 23370292 |
| Customs Tariff Number Export: | 73269098 |
| Model: | Steel |
| Pack Quantity: | 10 sets |
| Weight (g): | 746.0 |
| Zolltarifnummer: | 73269098900 |
| pA Number: | 144122 |
