Swivel Caster Ø 75

Product information "Swivel Caster Ø 75"

Color:
Housing: Alu color
Tread: See table
Wheel body: See table

Delivery Countries:
Worldwide

Description:

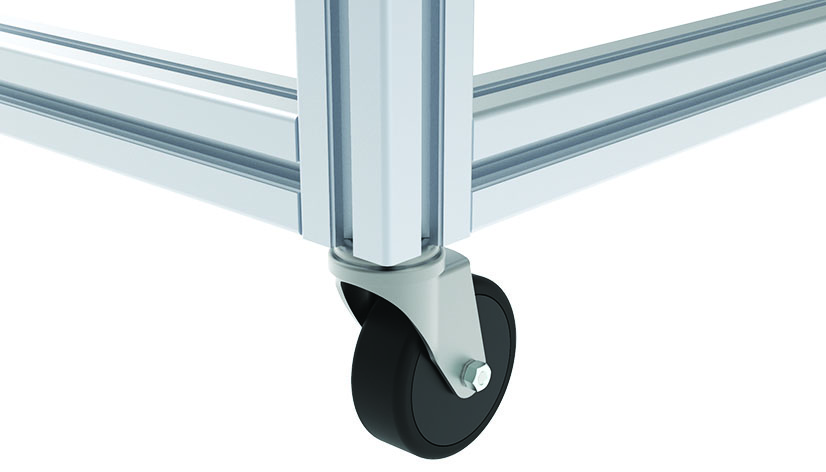

Reliable and quiet swivel caster, trackless, with thread guard; can be directly fixed to aluminum profiles or with an additional transport and base plate

Material:
Housing: Steel
Tread: See table
Wheel body: See table

Specials:
Other kinds of wheels, other colors, other surfaces on request

Surface:
Housing: Powder coated

Zolltarifnummer:
73269098900
Fastening: For end face mounting, a suitable thread must be cut into the core hole
Model: With bolt hole pattern
Pack Quantity: 1 piece
Weight (g): 261.0

Variants

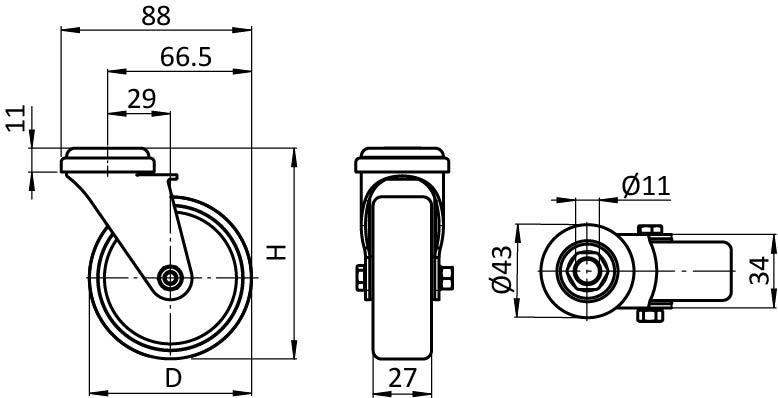

Product ID H (mm) D (mm) ESD Wheel Body Max. Load (N) Swivel Caster Tread
098S075TN 98 75 PP, gray 700 TPE, gray ≈ RAL 7001
098S075TNESD 98 75 ESD PP, black 490 TPE, gray ≈ RAL 7031
