Swivel Caster with Lifting Foot

Description:
Reliable and quiet swivel caster, trackless

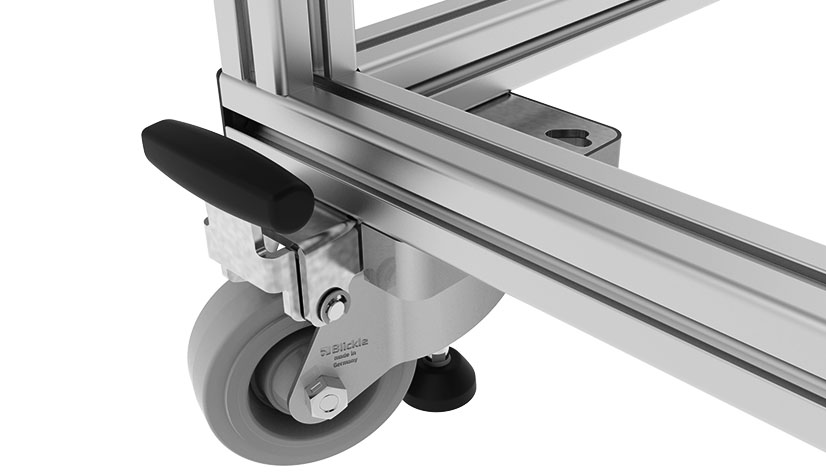

With ball bearings and thread guard integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm without overhang
No additional transport and base plate needed;

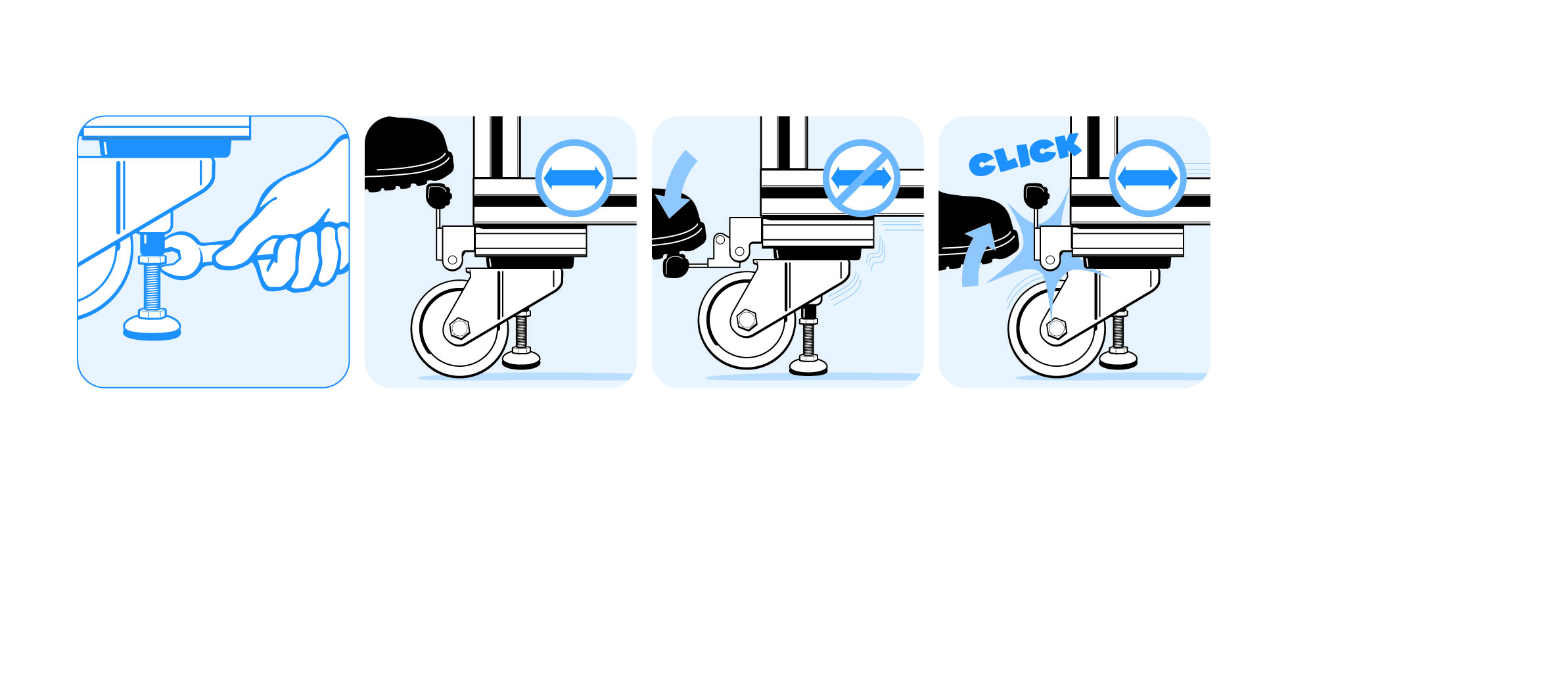

Roller movement locking by temporary positioning on lifting foot, actuation of the height adjustment of the lifting foot via foot pedal on the swivel caster housing

Material:
Die-cast aluminum / steel
Thread: See table
Wheel body: See table
Mounting plate: Steel
Leveling foot: Steel / zinc / TPE
Foot pedal: Plastic PUR / steel

Surface:
Housing: Powder coated / zinc plated
Mounting plate: Zinc plated
Leveling foot: Zinc plated
Foot pedal: Zinc plated

Color:
Housing: Alu color
Tread: See table
Wheel body: See table
Foot pedal: Black

Specials:
Other kinds of wheels, other colors, other surfaces on request

Delivery Countries:
Worldwide

Pack Quantity:	1 piece
Model:	With mounting plate
Weight (g):	2550.0
ERP Number:	144783

Variants

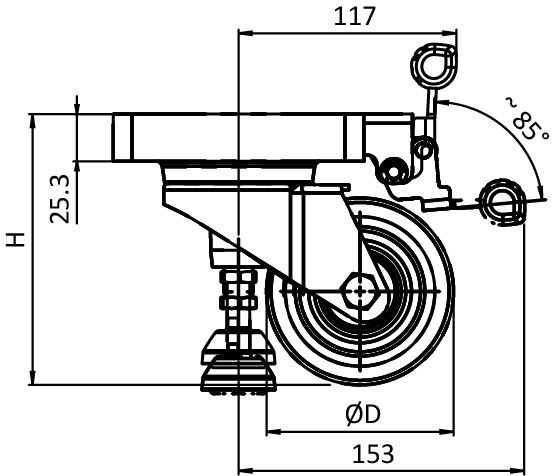

Part #	D (mm)	H (mm)	ESD	Max. Load (N)	Swivel Caster Tread	Wheel Body
098LF080UF134110	80	125.0	-	1500	PU, black	PA, gray ≈ RAL 7001
098LF100UF134110	100	145.0	-	2000	PU, black	PA, gray ≈ RAL 7001
098LF080UF134110-	80	125.0	ESD	1000	PU, black	PA, gray ≈ RAL 7001
098LF100UF134110-	100	145.0	ESD	1300	PU, black	PA, gray ≈ RAL 7001
098LF080GF134110	80	125.0	-	1700	Solid rubber, black	PA, black
098LF100GF134110	100	145.0	-	2000	Solid rubber, black	PA, black
098LF080AF134110	80	125.0	-	2500	PA, white	PA, natural white
098LF100AF134110	100	145.0	-	2500	PA, white	PA, natural white
098LF080EHF134110	80	125.0	-	1800	PU, yellow	Aluminum die-cast, silver gray
098LF100EHF134110	100	145.0	-	2500	PU, yellow	Aluminum die-cast, silver gray
098LF080EHF134110-	80	125.0	ESD	1800	PU, green	Aluminum die-cast, silver gray
098LF100EHF134110-	100	145.0	ESD	2500	PU, green	Aluminum die-cast, silver gray
