System Handle Bent

Product information "System Handle Bent"

Color:
Black

Delivery Countries:
Worldwide

Description:

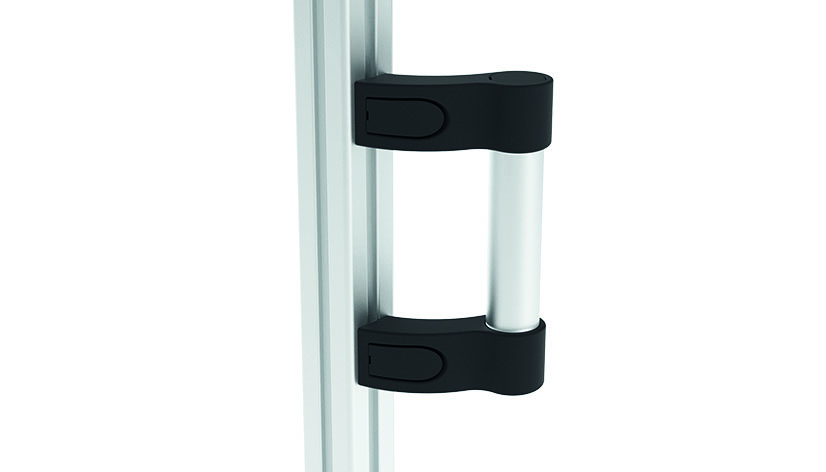

To mount on doors, flaps and aluminum profiles, can be used as an end or middle piece

Material:
Plastic PA, glass fiber reinforced

Set:
2 system handle legs
2 cover caps for screw-on point
2 cover caps for open hole in system handle leg as end piece

Tip:
Please note: 1 set = 2 pieces

Tip 2:
Compatible Cover Cap for Comfort and System Handle (Set) see 092305

Zolltarifnummer:
39269097900
(ECLASS 6.0): 23019101
(ECLASS 7.0): 23019101
(ECLASS 8.0): 23019101
(ECLASS 9.0): 23019101
(ECLASS 10.0): 23019101
(ECLASS 11.0): 23019101
(ECLASS 12.0): 23019101
(ECLASS 13.0): 23019101

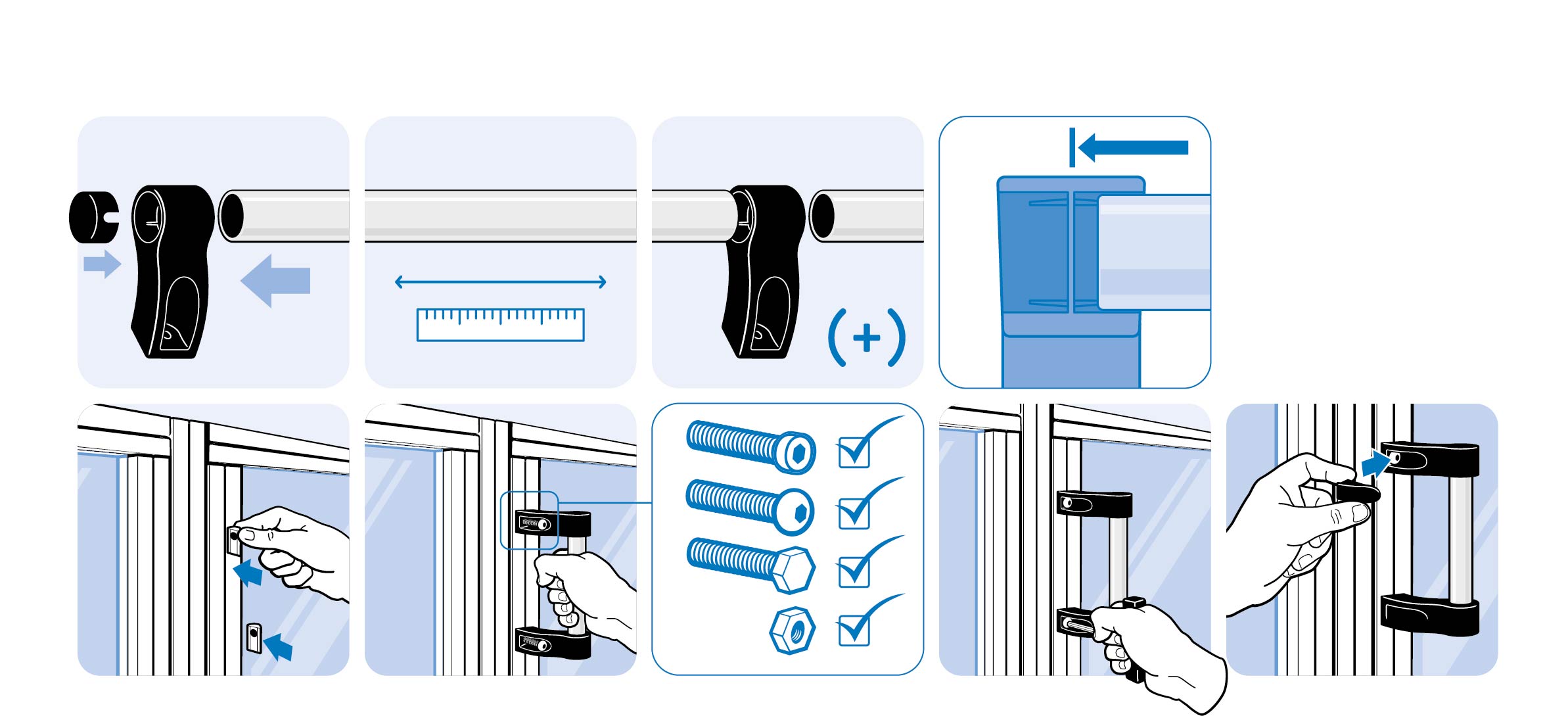

Fastening: From the front, using M6 screws
Model: Plastic PA
Pack Quantity: 1 set
Weight (g): 118.0

Variants

Product ID for Screw
092550 M6
