System Handle

€0.00

Version

Set of end pieces D28*

Set of end pieces D30*

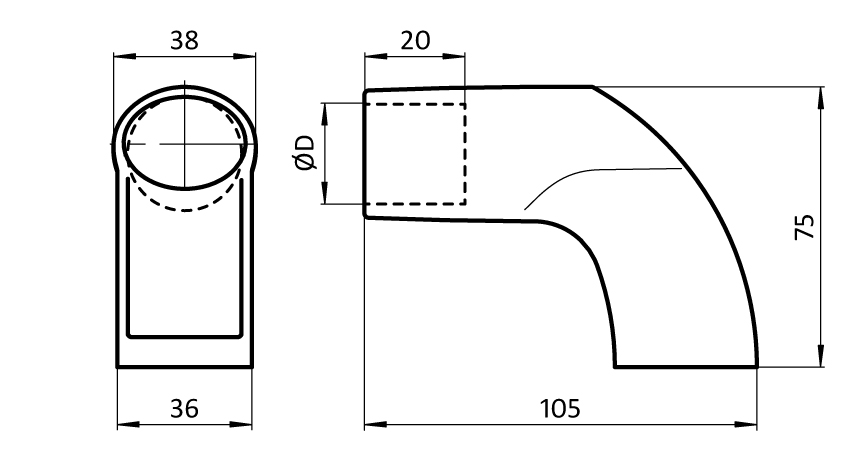

ØD (mm)

28.1

30.1

for Screw

M8

Part #: 092321

Pack Quantity: 10 pieces

Description:

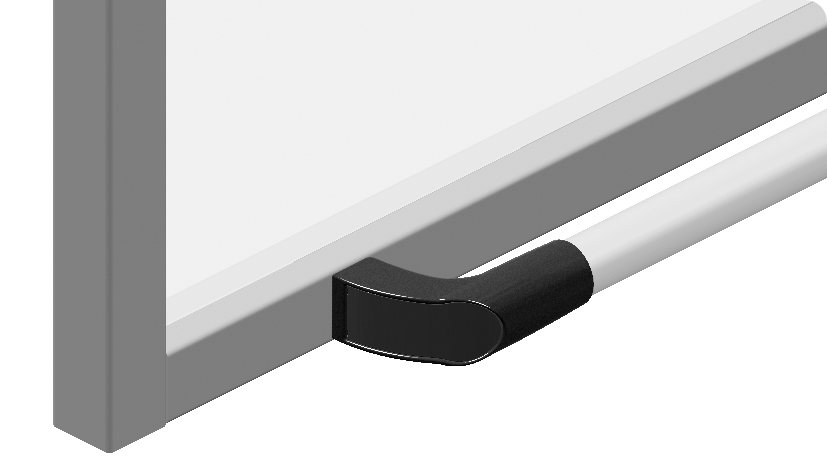

To mount on doors, flaps and aluminum profiles

Material:
Plastic PA, glass ball reinforced

Color:
Black

Fastening:

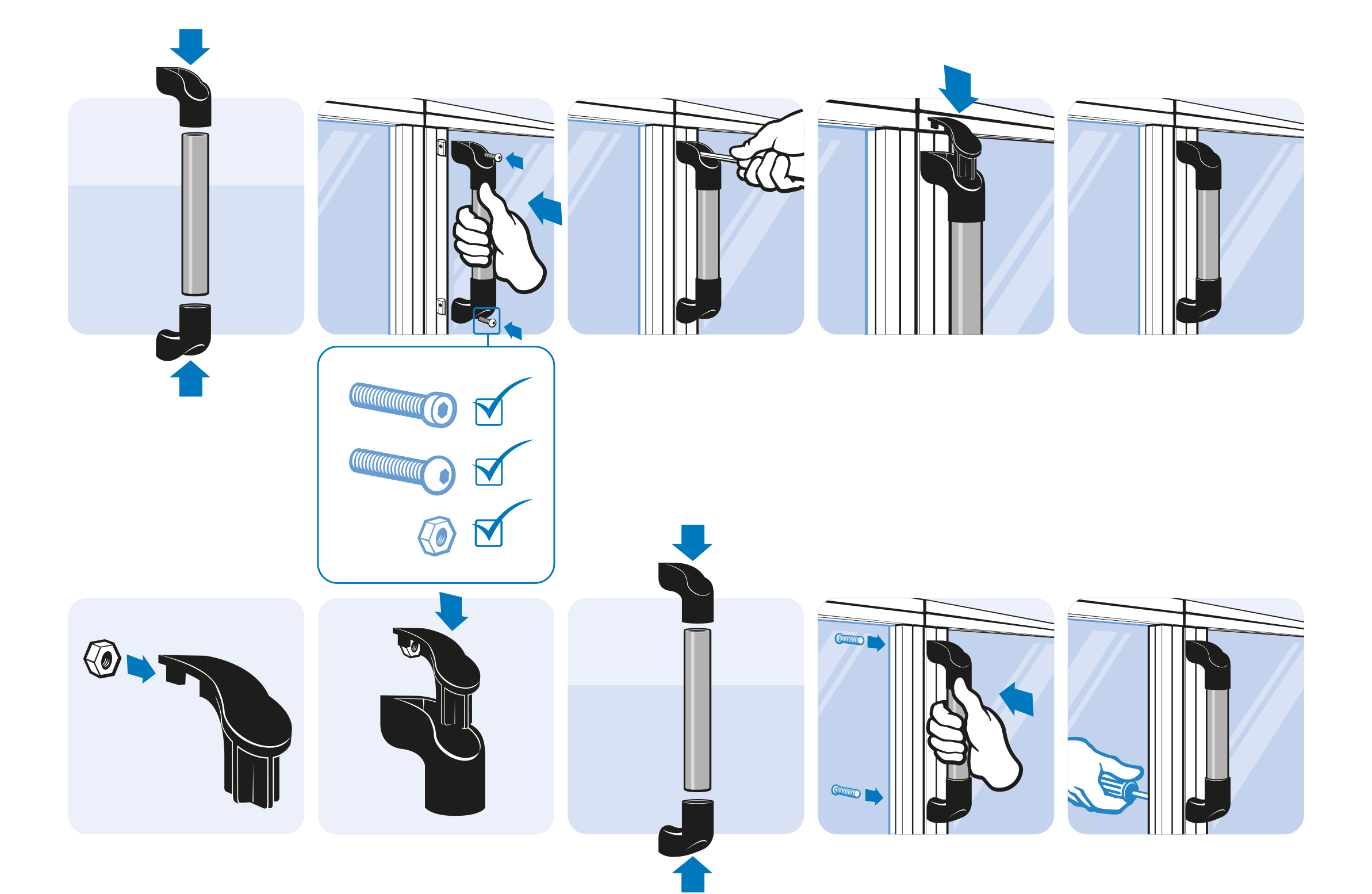

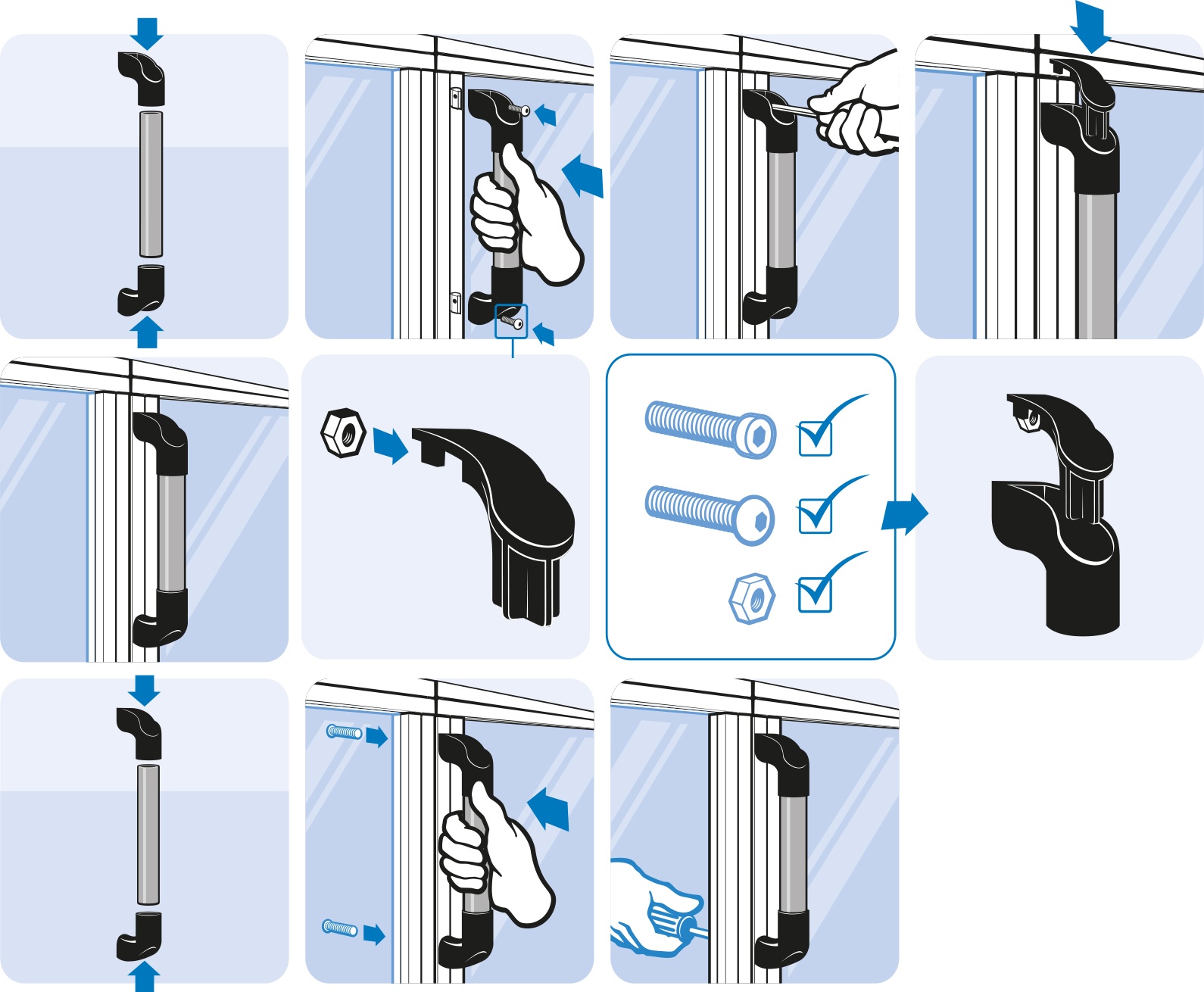

From the front with hexagon screws, from the back with screws and with M8 nuts inserted into the cover caps

Tip:
Please note: 1 set = 2 pieces

Tip 2:
Compatible Cover Cap for Comfort and System Handle (Set) see 092305

Specials:
Other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Plastic PA
Weight (g):	126.0
ERP Number:	140701

Variants

Part #	Version	ØD (mm)	for Screw	Pack Quantity	CAD
092321	Set of end pieces D28*	28.1	M8	10 pieces
092013	Set of end pieces D30*	30.1	M8	10 sets (20 pieces)

Classifications

ECLASS 6.0: 23019101
ECLASS 7.0: 23019101
ECLASS 8.0: 23019101
ECLASS 9.0: 23019101
ECLASS 10.0: 23019101
ECLASS 11.0: 23010191
ECLASS 12.0: 23010191
ECLASS 13.0: 23010191
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Tags

Profile Type	Profile Type B, Profile Type I
Profile Form	T-slot Profiles
Application Area	Machinery & Plant Engineering

Matching accessories

Cover Cap for Comfort and System Handle (Set)

Version: 200 Fig.: ③ for Nut: M8

Description:To cover the end of the handle By inserting a nut into the cover cap, mounting the handle from the back is possibleMaterial:Plastic PA, glass ball reinforcedColor:BlackTip:Please note: 1 set = 2 piecesTip 2:Compatible Comfort Handle see 092300 Compatible System Handle see 092013Specials:Other colors on requestDelivery Countries:Worldwide
