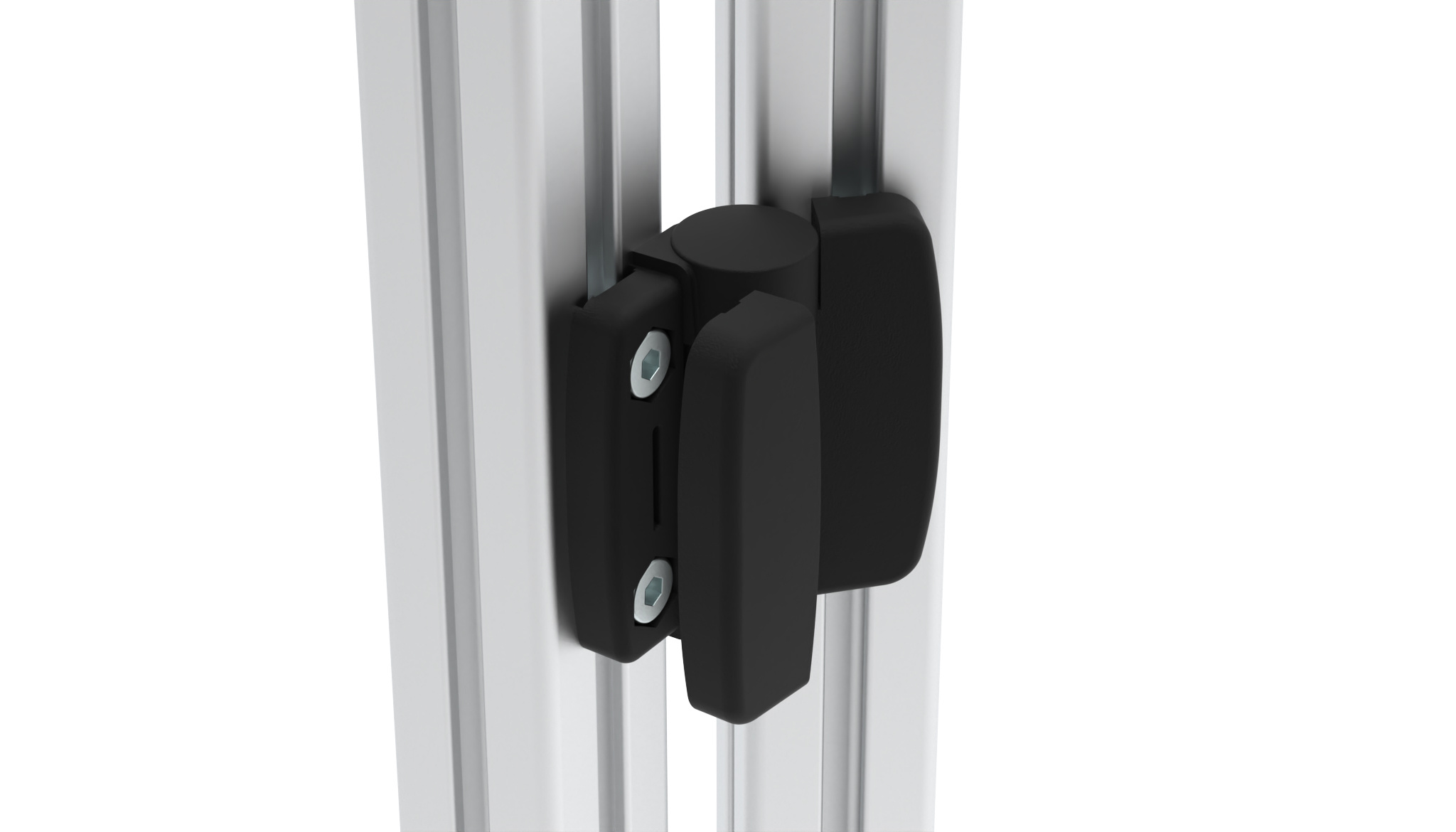

System Hinge 30 with Adjustable Friction
Regular price:
€0.00
Part #:
095SF3030A06
Pack Quantity:
10 pieces
Description:
To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doors
To hinge panels or aluminum profiles; to hold a door open at an angle at any angle; infinitely variable from 0 - 5 Nm hinge moment; also supports lightweight doors
Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Color:
Black
Fastening:
From the front using M6 screws, from the back using hexagon nuts and bolts
Tip:
Combinations of different wing sizes are available on request
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Delivery Countries:
Worldwide
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Color:
Black
Fastening:
From the front using M6 screws, from the back using hexagon nuts and bolts
Tip:
Combinations of different wing sizes are available on request
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | With cover caps |
| Weight (g): | 51.7 |
| ERP Number: | 102167 |
Product Portraits
Classifications
- ECLASS 6.0
- 23219090
- ECLASS 7.0
- 23219090
- ECLASS 8.0
- 23219090
- ECLASS 9.0
- 23219090
- ECLASS 10.0
- 23219090
- ECLASS 11.0
- 23219090
- ECLASS 12.0
- 23219090
- ECLASS 13.0
- 23219090
- Zolltarifnummer
- 39263000900
- Customs Tariff Number Export
- 39263000
