System Hinge 30
Part #:
095S3030A08
Product information "System Hinge 30"
Color:
Black
Delivery Countries:
Worldwide
Description:

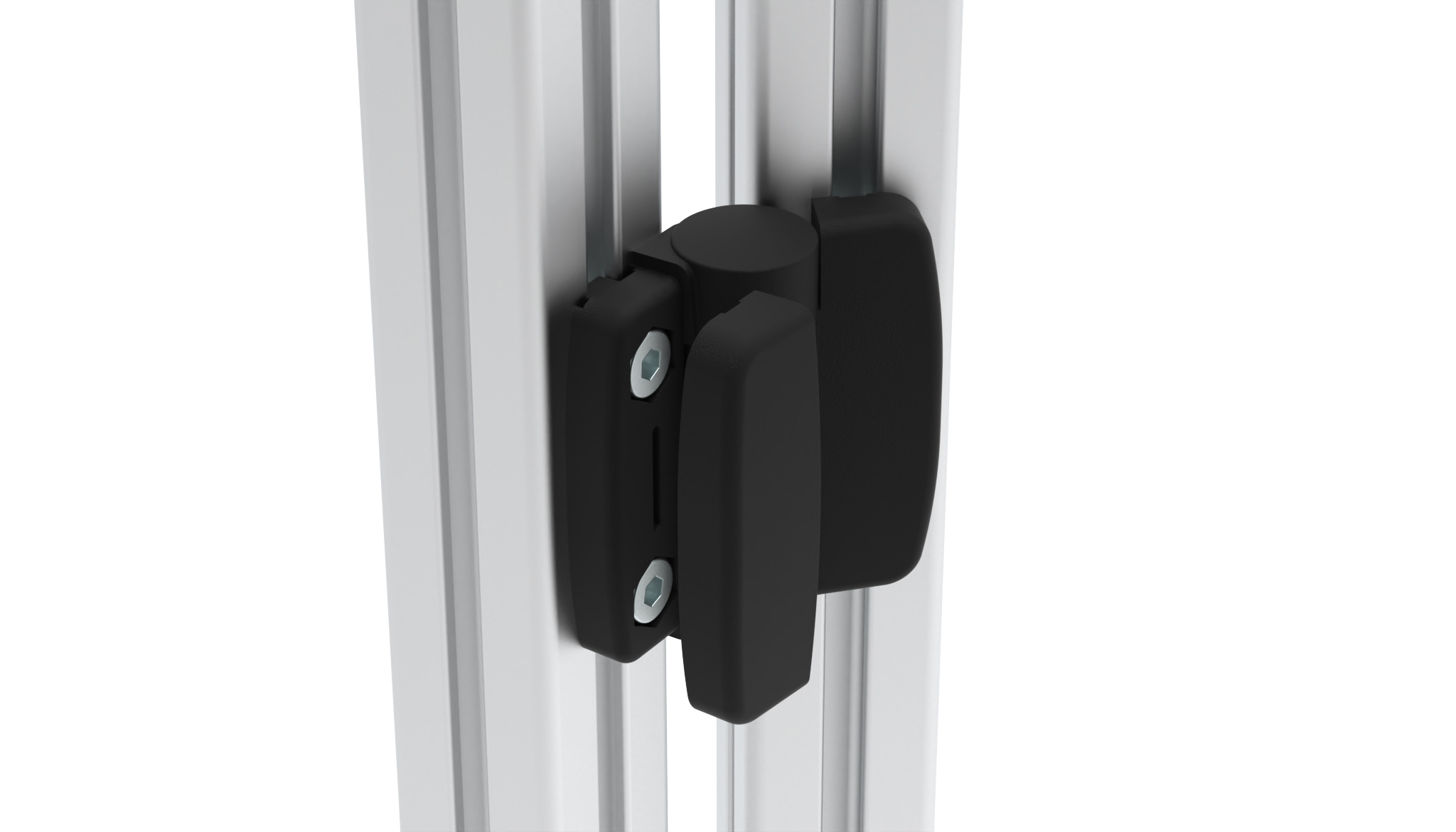

To hinge panels or aluminum profiles, with cover caps
Material:
Plastic PA, glass fiber reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Tip:
Combinations of different wing sizes are available on request
Black
Delivery Countries:
Worldwide
Description:
To hinge panels or aluminum profiles, with cover caps
Material:
Plastic PA, glass fiber reinforced
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Tip:
Combinations of different wing sizes are available on request
| (ECLASS 6.0): | 23219090 |
|---|---|
| (ECLASS 7.0): | 23219090 |
| (ECLASS 8.0): | 23219090 |
| (ECLASS 9.0): | 23219090 |
| (ECLASS 10.0): | 23219090 |
| (ECLASS 11.0): | 23219090 |
| (ECLASS 12.0): | 23219090 |
| (ECLASS 13.0): | 23219090 |
| Customs Tariff Number Export: | 39263000 |

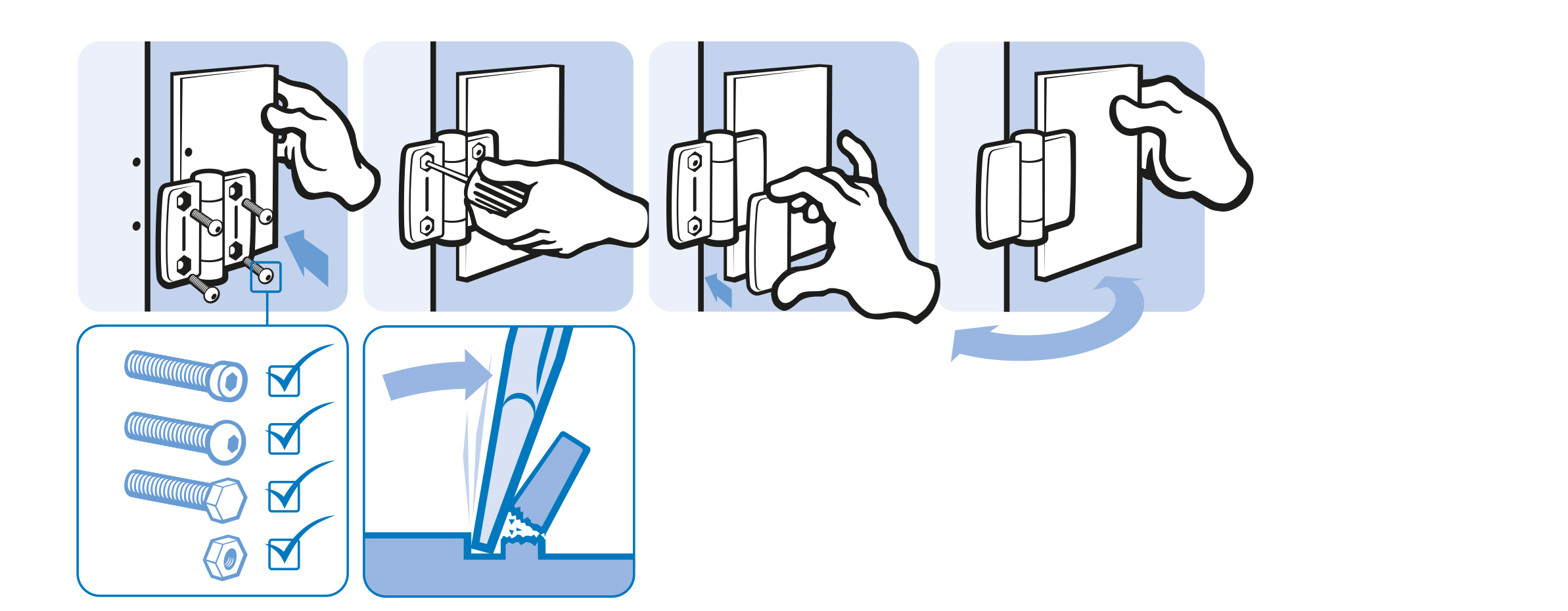

| Fastening: | From the front using M6 screws, from the back using hexagon nuts and bolts |
| Model: | With cover caps |
| Pack Quantity: | 10 pieces |
| Weight (g): | 39.0 |
| Zolltarifnummer: | 39263000900 |
| pA Number: | 102137 |
