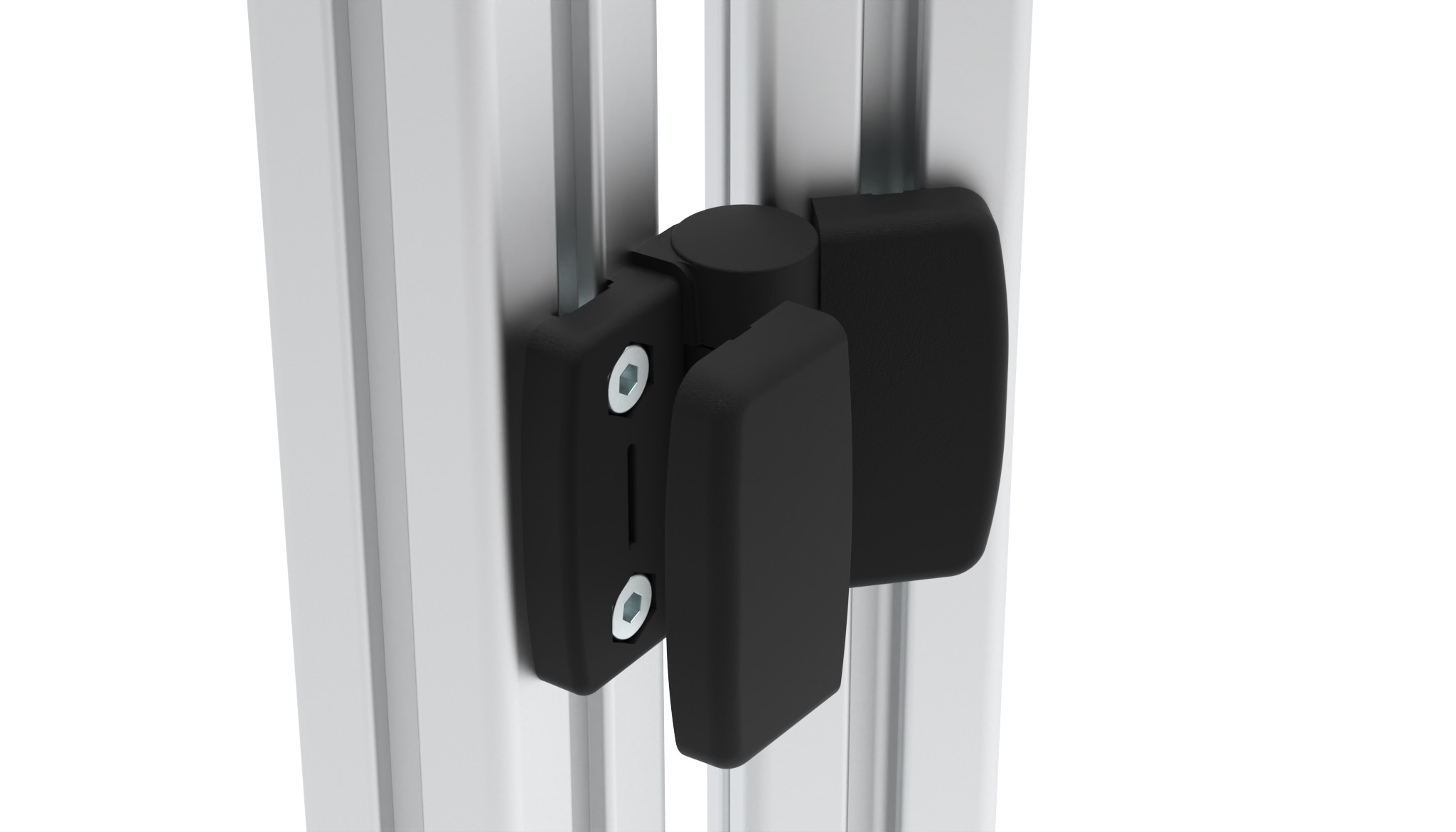

System Hinge 40 with Positioning Function
Regular price:
€0.00
Part #:
095SR4040A08
Pack Quantity:
10 pieces
Description:
To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closed
To hinge panels or aluminum profiles, with cover caps; to hold a door open at an angle at 85° or 175° or to keep it securely closed
Material:
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Color:
Black
Fastening:

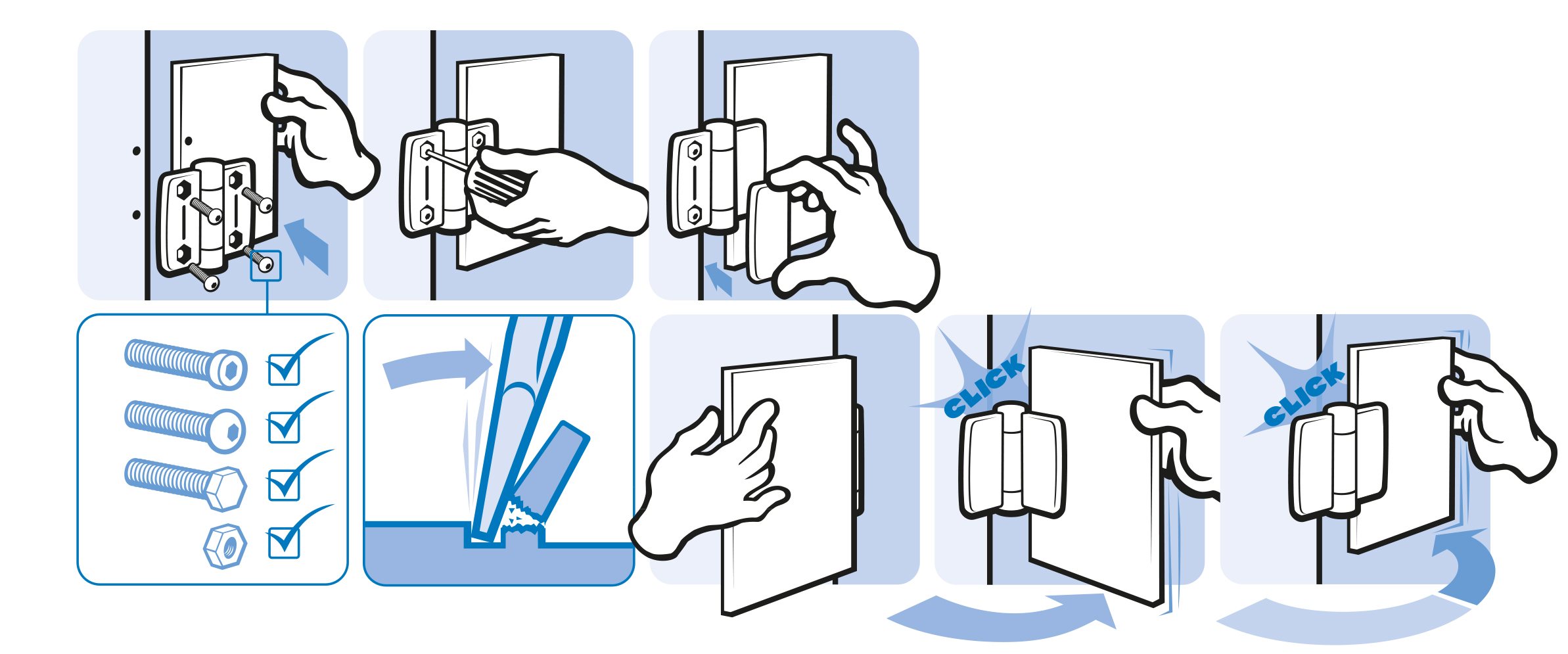

From the front using M6 screws, from the back using hexagon nuts and bolts
Tip:
Combinations of different wing sizes are available on request *+/- 25% of the setting value
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Delivery Countries:
Worldwide
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Color:
Black
Fastening:
From the front using M6 screws, from the back using hexagon nuts and bolts
Tip:
Combinations of different wing sizes are available on request *+/- 25% of the setting value
Specials:
ESD electrostatical discharging, other sizes, other colors on request
Delivery Countries:
Worldwide
| Pack Quantity: | 10 pieces |
|---|---|
| Model: | With cover caps |
| Weight (g): | 93.0 |
| Cogging Torque* (Nm): | 2.0 |
| ERP Number: | 102191 |
Product Portraits
Classifications
- ECLASS 6.0
- 23219090
- ECLASS 7.0
- 23219090
- ECLASS 8.0
- 23219090
- ECLASS 9.0
- 23219090
- ECLASS 10.0
- 23219090
- ECLASS 11.0
- 23219090
- ECLASS 12.0
- 23219090
- ECLASS 13.0
- 23219090
- Zolltarifnummer
- 39263000900
- Customs Tariff Number Export
- 39263000
Certificates
