System Hinge 40

Product information "System Hinge 40"

Color:
Black

Delivery Countries:
Worldwide

Description:

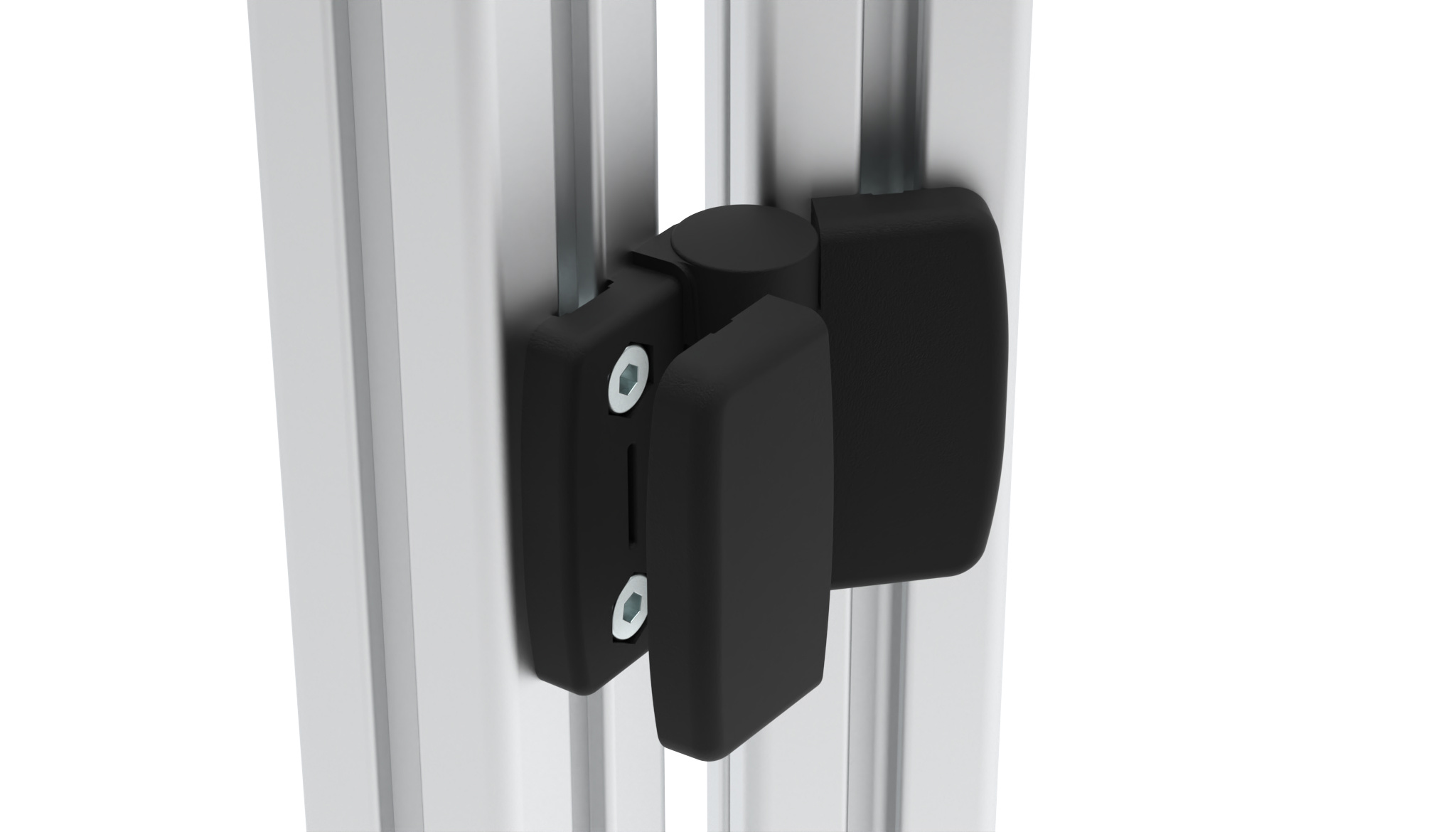

To hinge panels or aluminum profiles; with cover caps

Material:
Plastic PA, glass fiber reinforced

Specials:
ESD electrostatical discharging, other sizes, other colors on request

Tip:
Combinations of different wing sizes are available on request

Zolltarifnummer:
39263000900
(ECLASS 6.0): 23219090
(ECLASS 7.0): 23219090
(ECLASS 8.0): 23219090
(ECLASS 9.0): 23219090
(ECLASS 10.0): 23219090
(ECLASS 11.0): 23219090
(ECLASS 12.0): 23219090
(ECLASS 13.0): 23219090

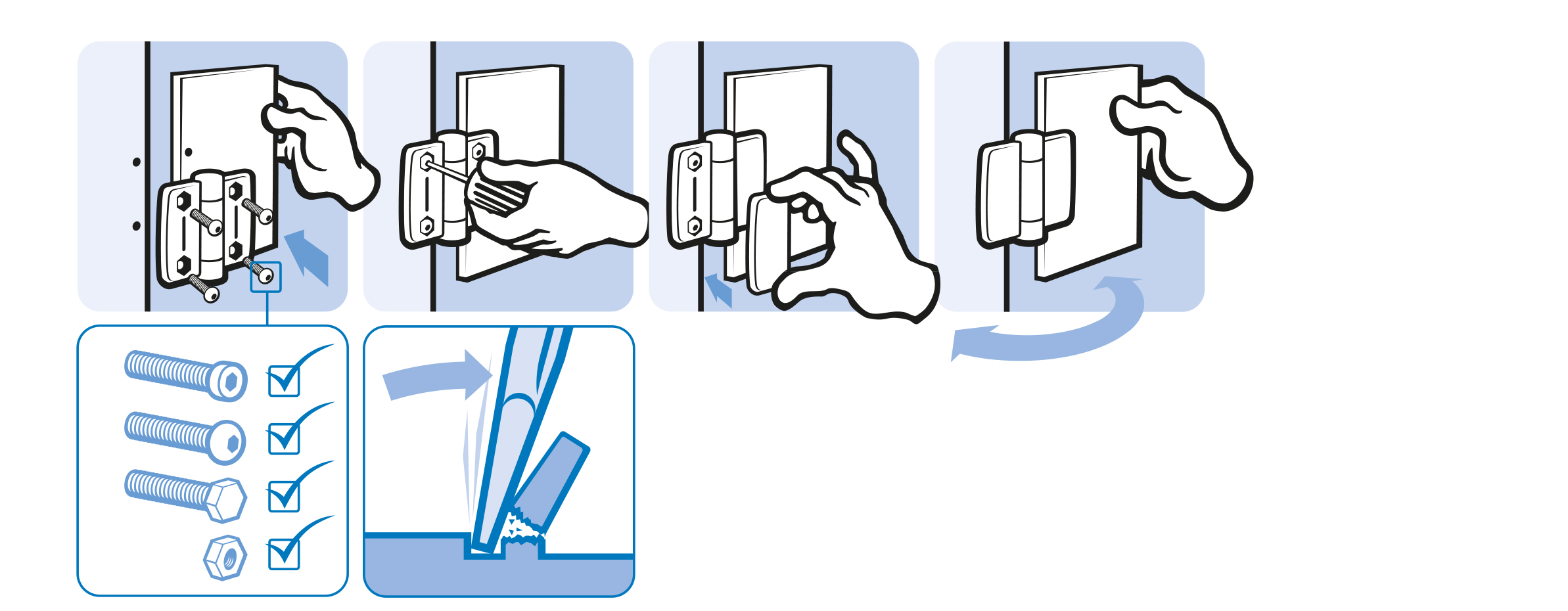

Fastening: From the front using M6 screws, from the back using hexagon nuts and bolts
Model: With cover caps
Pack Quantity: 10 pieces
Weight (g): 51.0

Variants

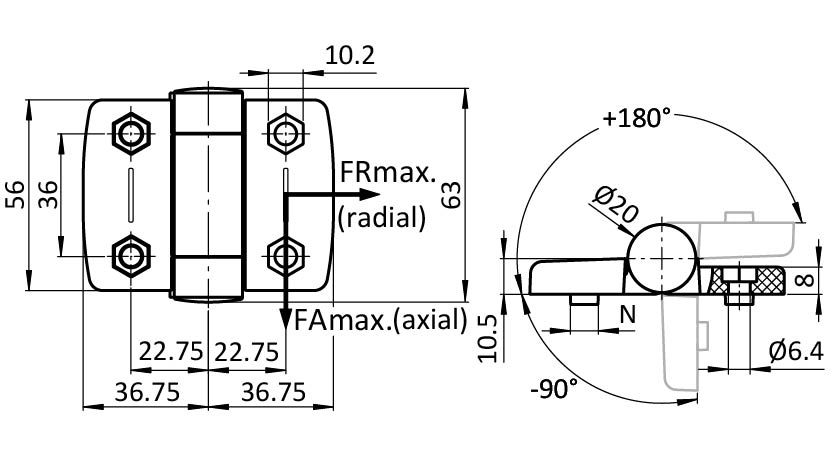

Product ID FRmax (N) FAmax (N) Slot N (mm)
095S4040A00 600 425
095S4040A08 600 425 8
095S4040A10 600 425 10
