T-Matic Double Connector Steel

Product information "T-Matic Double Connector Steel"

Delivery Countries:
Worldwide

Description:

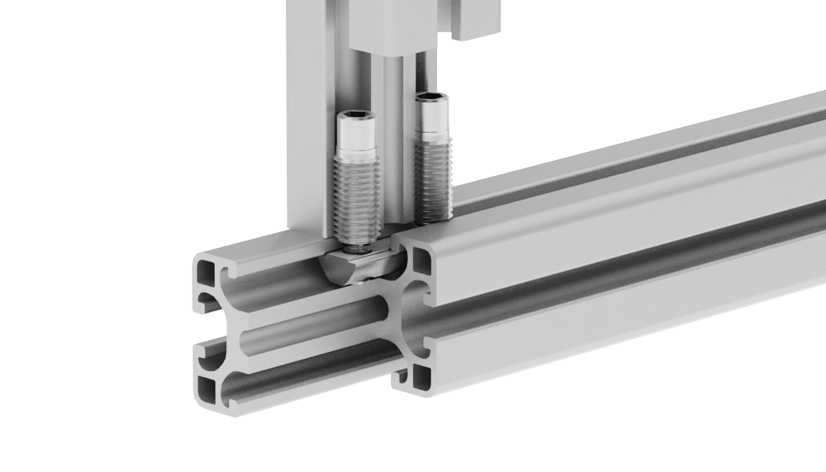

To connect two aluminum profiles fast and solid, assembly without machining; self-forming thread, without chipping

Material:
Steel

Surface:
Zinc plated

Tip:
*Compatible Cover Plate see 099HA081E
Pack Quantity: 100 pieces
Model: Steel
Weight (g): 58.0
ERP Number: 129557

Variants

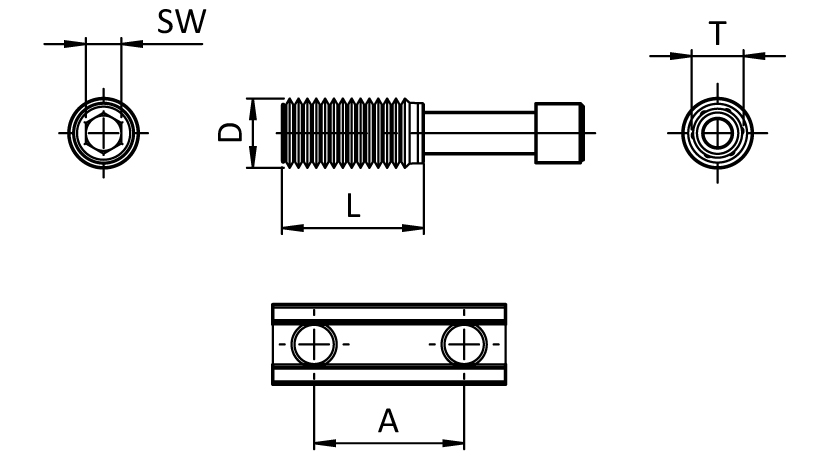

Part # D (mm) Profile A (mm) L (mm) SW Slot N (mm) Profile Width Tip Screw T CAD
12.0 I 25.4 24.0 6 8 40 * M8 x 35 T50

CAD Downloads

Classifications

ECLASS 6.0
23360290
ECLASS 7.0
23360290
ECLASS 8.0
23360290
ECLASS 9.0
23360290
ECLASS 10.0
23360290
ECLASS 11.0
23360290
ECLASS 12.0
23360290
ECLASS 13.0
23360290
Zolltarifnummer
73181900900
Customs Tariff Number Export
73181900

Certificates

Tags

Profile Type Profile Type I
Slot Size Slot 8
Profile Form T-slot Profiles
