T-handle Compression Latch, 22.5 / 32, Long Shaft, incl. Cam (Set)

Product information "T-handle Compression Latch, 22.5 / 32, Long Shaft, incl. Cam (Set)"

Color:
T-handle Insert: Black
Housing: Black
Seals: Black

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria

Description:

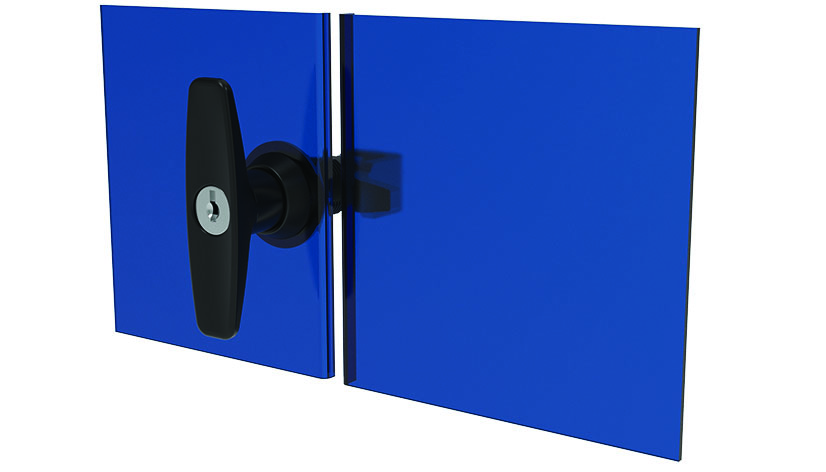

For easy, secure and compressive latching and locking of doors and flaps

Material:
T-handle insert: Zinc die-cast
Shaft: Steel
Retaining spring: Stainless steel SS316
Housing: Zinc die-cast
Cam: Steel
Seals: Rubber NBR
Washer: Steel
Nut: Zinc die-cast
Assembly material: Steel

Surface:
T-handle insert: Powder coated
Shaft: Zinc plated
Housing: Powder coated
Washer: Zinc plated
Nut: Zinc plated
Assembly material: Zinc plated

Zolltarifnummer:
83014090000
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23199090
(ECLASS 12.0): 23199090
(ECLASS 13.0): 23199090
Pack Quantity: 10 pieces
Weight (g): 251.6

Variants

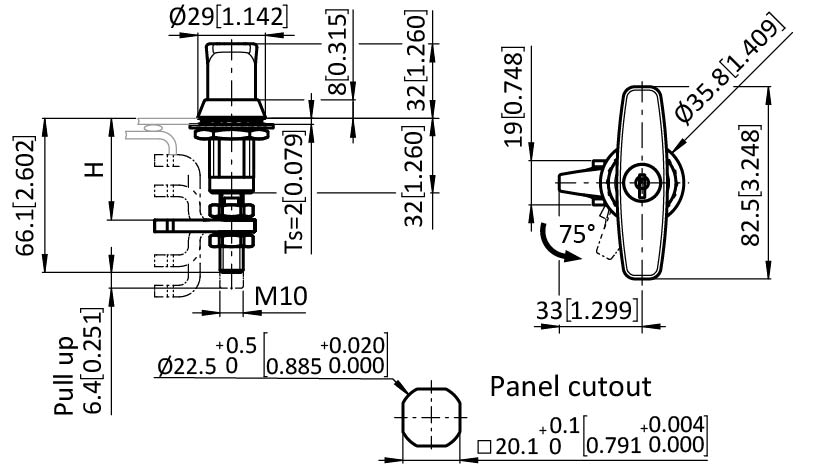

Product ID Insert type H (mm)
0850144 Key locking (Keyed FH751) 11.4 - 27.2 / 66.3 - 76.2
0850145 Key locking (Keyed FH751) 25.4 - 41.1 / 52.6 - 68.3
0850146 Key locking (Keyed FH751) 38.9 - 54.6
0850147 Non-locking 11.4 - 27.2 / 66.3 - 76.2
0850148 Non-locking 25.4 - 41.1 / 52.6 - 68.3
0850149 Non-locking 38.9 - 54.6
