T-slot Slider (Set)

Product information "T-slot Slider (Set)"

Color:
V_T-slot slider: black

Delivery Countries:
Worldwide

Description:

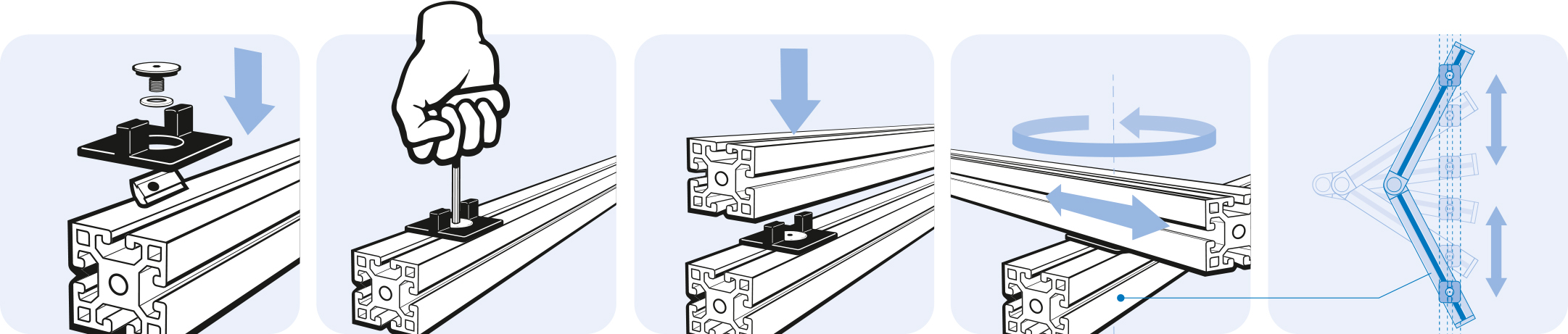

V_For the assembly of folding doors with simultaneous rotating and sliding movement; without a T-slot also suitable for side to end mounting into the core hole for e.g. keyboard pull outs

Material:
V_T-slot slider: Plastic POM
Special screw: Steel
Washer: Stainless steel
T-slot nut: Steel

Set:
1 T-slot slider,
1 special screw - M8 x 13,
1 washer DIN EN ISO 4759-3 (DIN 988),
1 T-slot nut - slot 8 - M8

Specials:
Other colors on request

Surface:
V_Special screw: Zinc plated
Washer: Plain
T-slot nut: Zinc plated

Tip:
V_For gap distance 5 mm
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Customs Tariff Number Export: 39269097
Model: Slot 8
Pack Quantity: 10 sets
Weight (g): 25.0
Zolltarifnummer: 39269097900
pA Number: 140113

Variants

Product ID Profile Max. Load (N) Slot N (mm)
093ST4040N08 I 60 8
