Transition Ramp I (Set)

Product information "Transition Ramp I (Set)"

Color:
Transition ramp: Black

Delivery Countries:
Worldwide

Description:

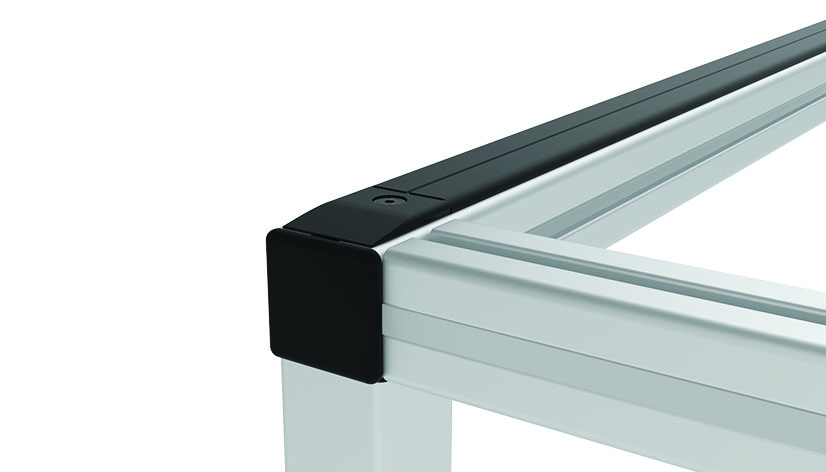

Provides a smooth transition between aluminum profile and transition ramp I

Material:
Transition ramp: Plastic PA, glass fiber reinforced
Screw: Steel
T-slot nut: Steel

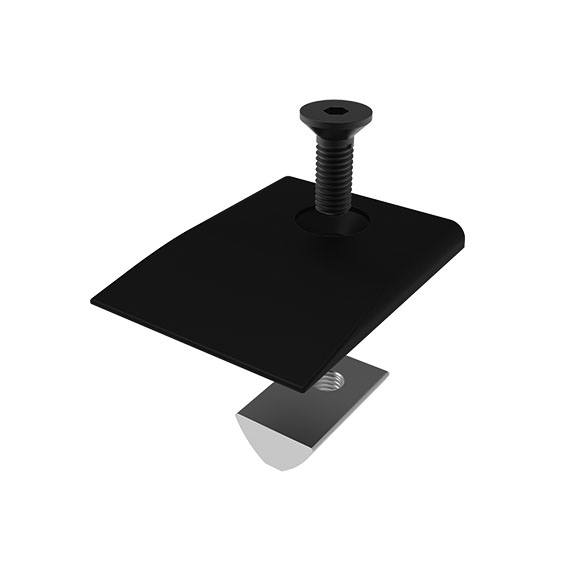

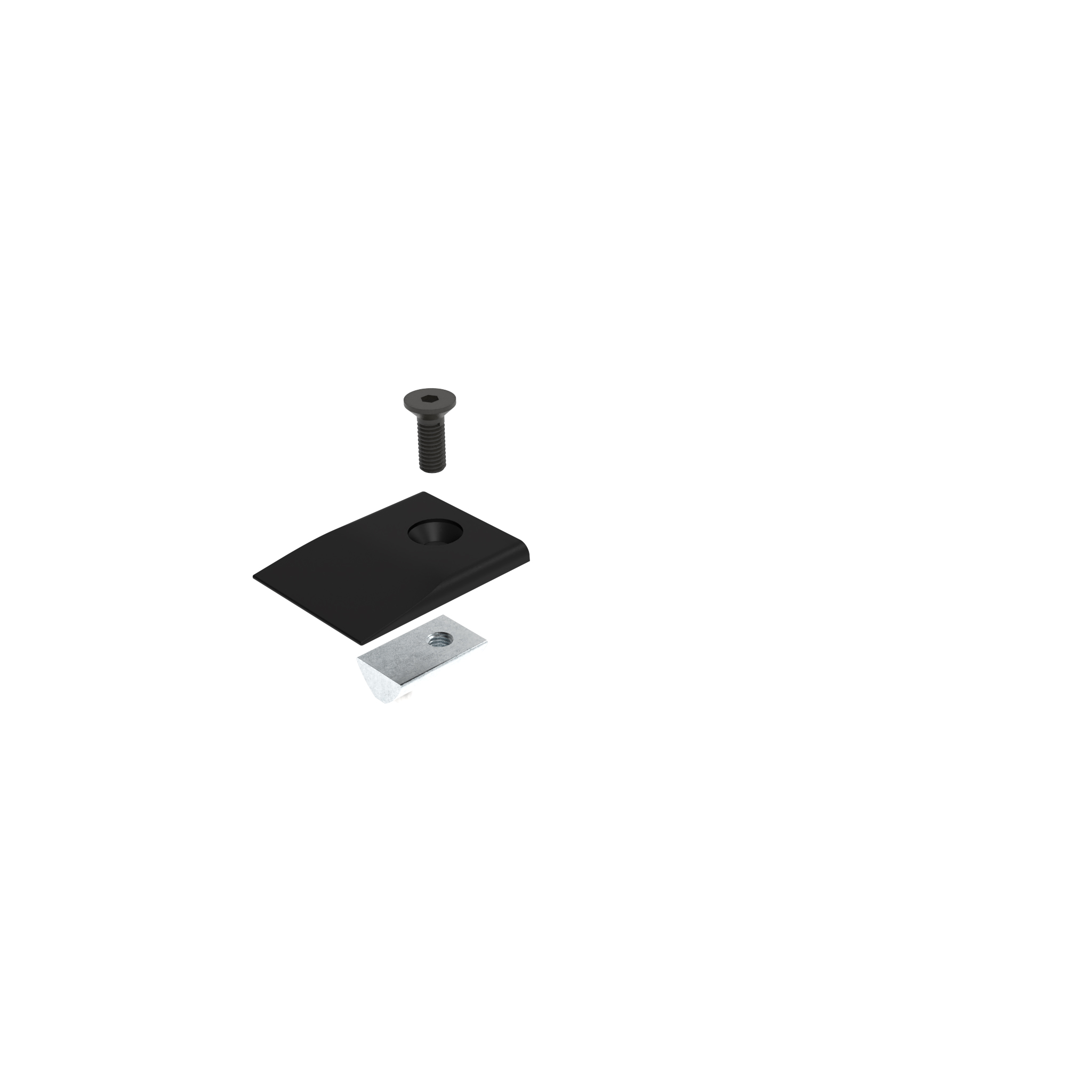

Set:
1 Transition ramp,
1 Screw DIN EN ISO 10642 (DIN 7991) - M5 x 14,
1 T-slot nut - slot 8 - M5

Surface:
Screw: Black
T-slot nut: Zinc plated

Tip:
Compatible Slide Rail I see 092095
(ECLASS 6.0): 23369290
(ECLASS 7.0): 23369290
(ECLASS 8.0): 23369290
(ECLASS 9.0): 23369290
(ECLASS 10.0): 23369290
(ECLASS 11.0): 23360192
(ECLASS 12.0): 23360192
(ECLASS 13.0): 23360192
Customs Tariff Number Export: 39269097
Model: For slide rail I
Pack Quantity: 10 sets
Weight (g): 17.3
Zolltarifnummer: 39269097900
pA Number: 147129

Variants

Product ID Profile Slot N (mm)
092346S01 I 8
