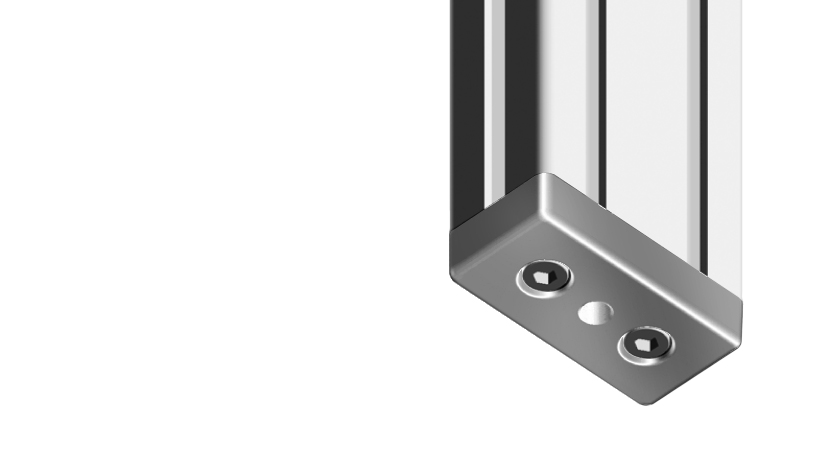

Transport and Base Plate AL 40 x 80

Product information "Transport and Base Plate AL 40 x 80"

Delivery Countries:
Worldwide

Description:

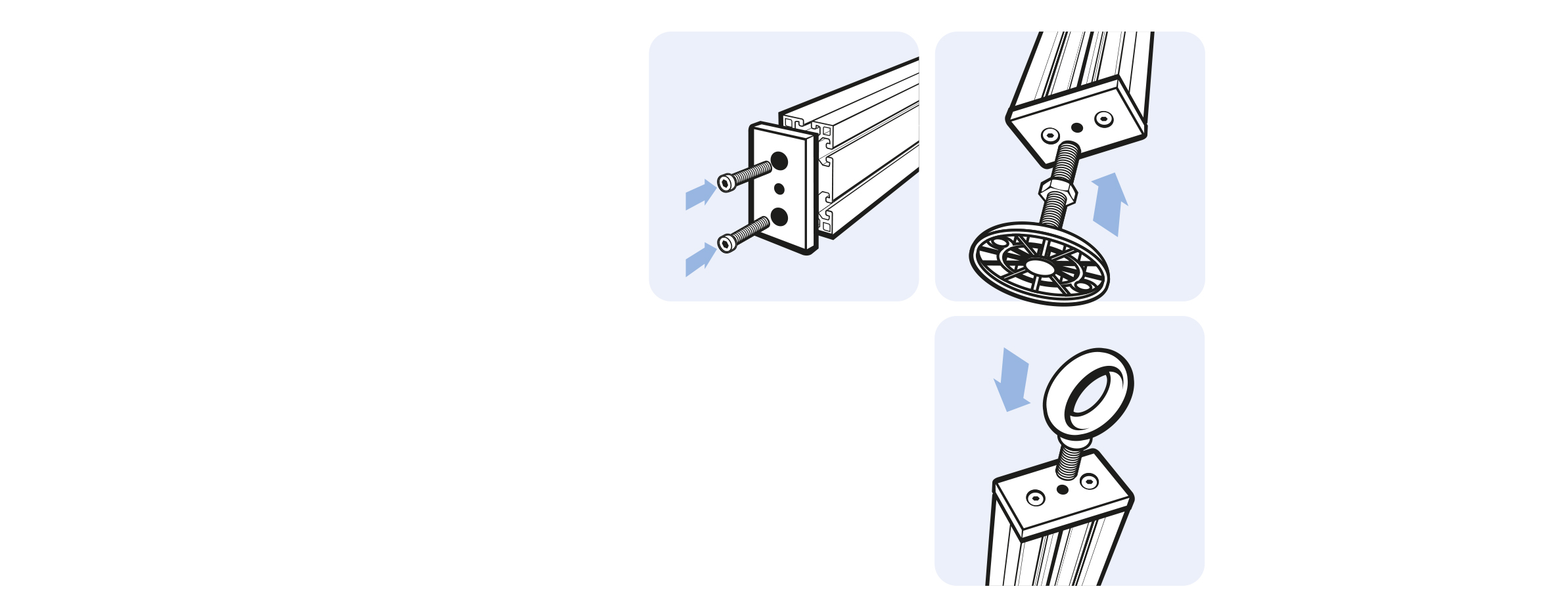

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Material:
Aluminum die-cast

Specials:
Other surfaces, other colors on request

Surface:
Plain

Zolltarifnummer:
76169910990
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Aluminum die-cast
Pack Quantity: 10 pieces
Weight (g): 90.4

Variants

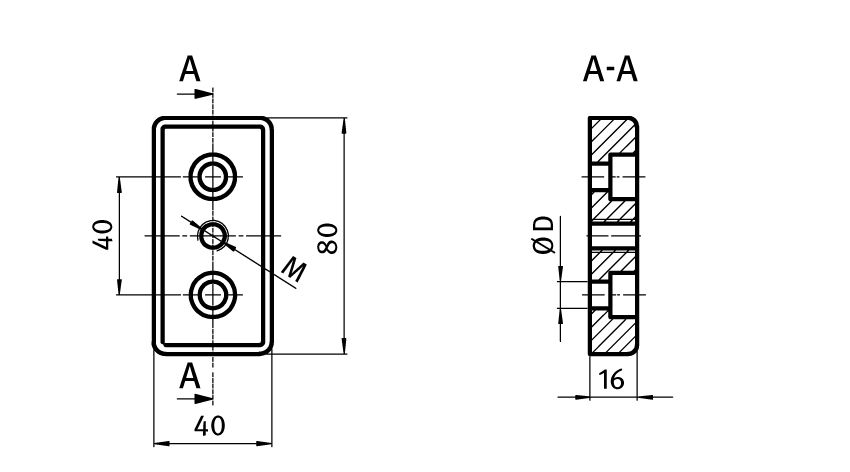

Product ID ØD (mm) M
093TA40800808R 9 (M8)
093TA40801008R 9 (M8) M10
093TA40801208R 9 (M8) M12
093TA40801408R 9 (M8) M14
093TA40801608R 9 (M8) M16
093TA40802008R 9 (M8) M20
