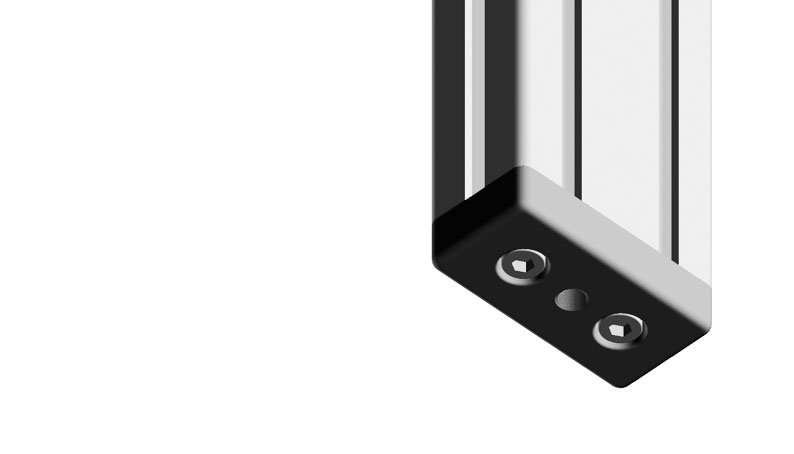

Transport and Base Plate ZN 40 x 80, Powder Coated

Product information "Transport and Base Plate ZN 40 x 80, Powder Coated"

Color:
Black, alu colour

Delivery Countries:
Worldwide

Description:

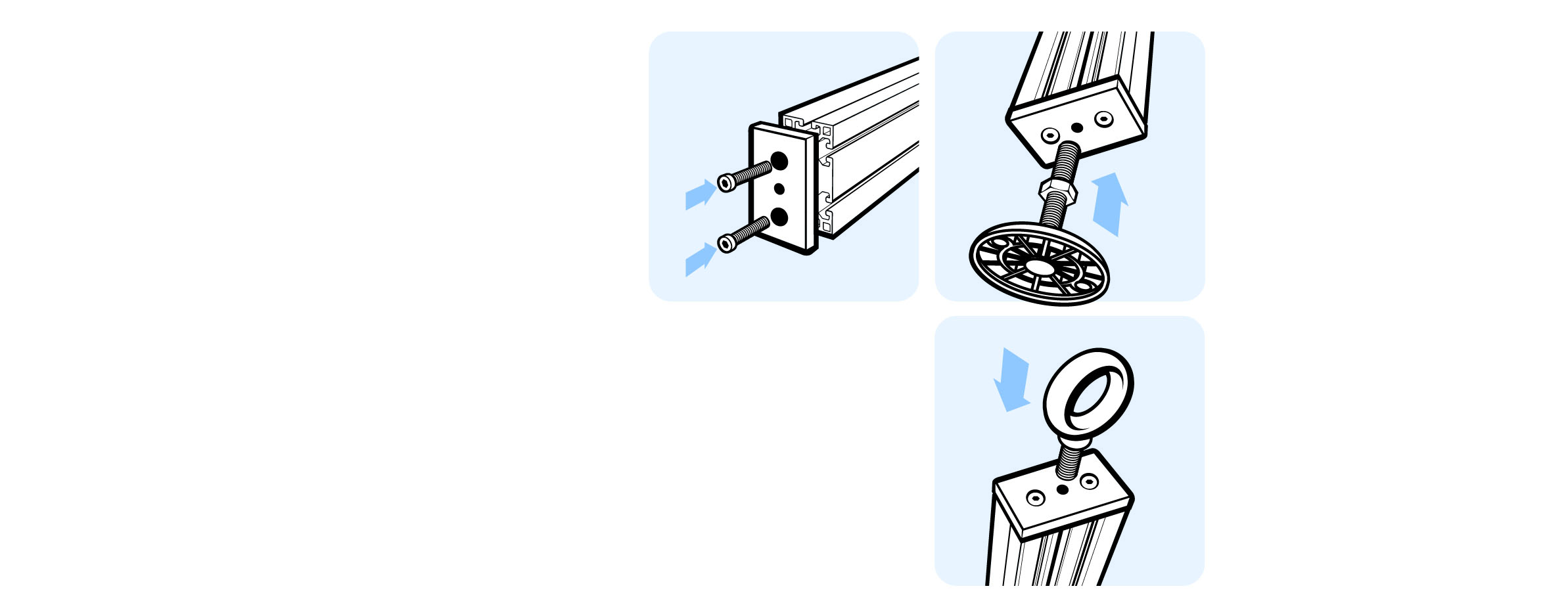

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Plain Transport and Base Plate see 093T40800808R
Model: Zinc die-cast
Pack Quantity: 10 pieces
Customs Tariff Number Export: 79070000
Weight (g): 203.0
ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
ERP Number: 100776
Zolltarifnummer: 79070000900

Variants

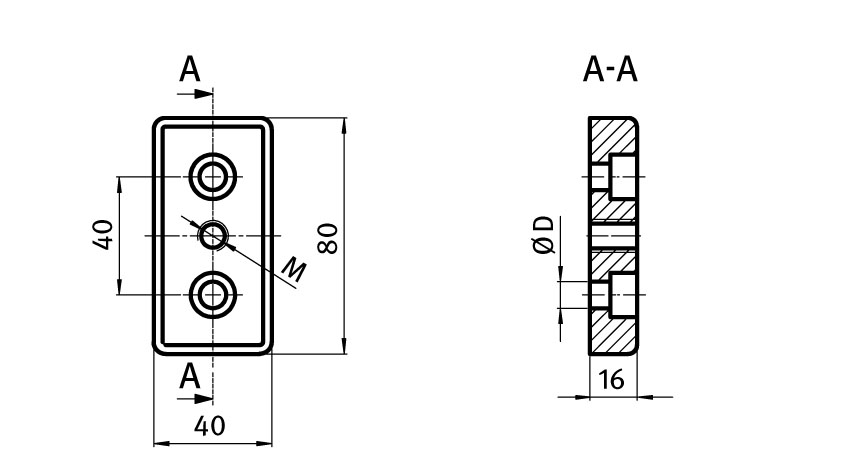

Part # Fig. Color ØD (mm) M
093T40800808A Alu color 9 (M8) -
093T40800808S Black 9 (M8) -
093T40800812A Alu color 14.5 (M12) M8
093T40800812S Black 14.5 (M12) -
093T40801008A Alu color 9 (M8) M10
093T40801008S Black 9 (M8) M10
093T40801012A Alu color 14.5 (M12) M10
093T40801012S Black 14.5 (M12) M10
093T40801208A Alu color 9 (M8) M12
093T40801208S Black 9 (M8) M12
093T40801212S Black 14.5 (M12) M12
093T40801408S Black 9 (M8) M14
093T40801412A Alu color 14.5 (M12) M14
093T40801608A Alu color 9 (M8) M16
093T40801608S Black 9 (M8) M16
093T40801612A Alu color 14.5 (M12) M16
093T40801612S Black 14.5 (M12) M16
093T40802008S Black 9 (M8) M20
