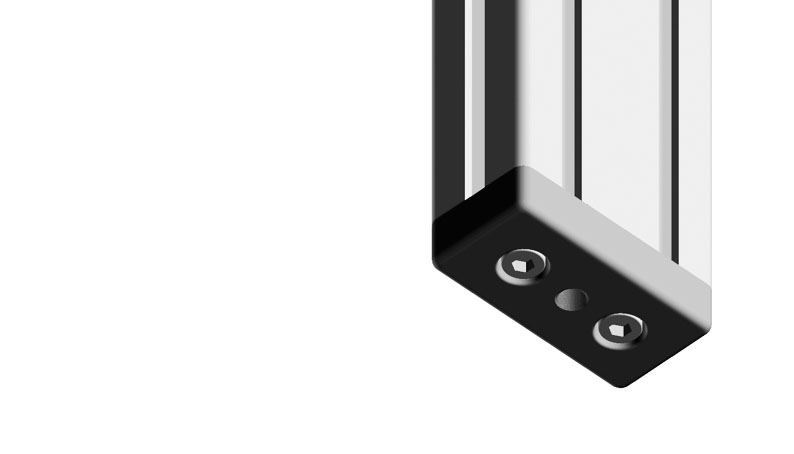

Transport and Base Plate ZN 45 x 90, Powder Coated

Product information "Transport and Base Plate ZN 45 x 90, Powder Coated"

Color:
Black, alu colour

Delivery Countries:
Worldwide

Description:

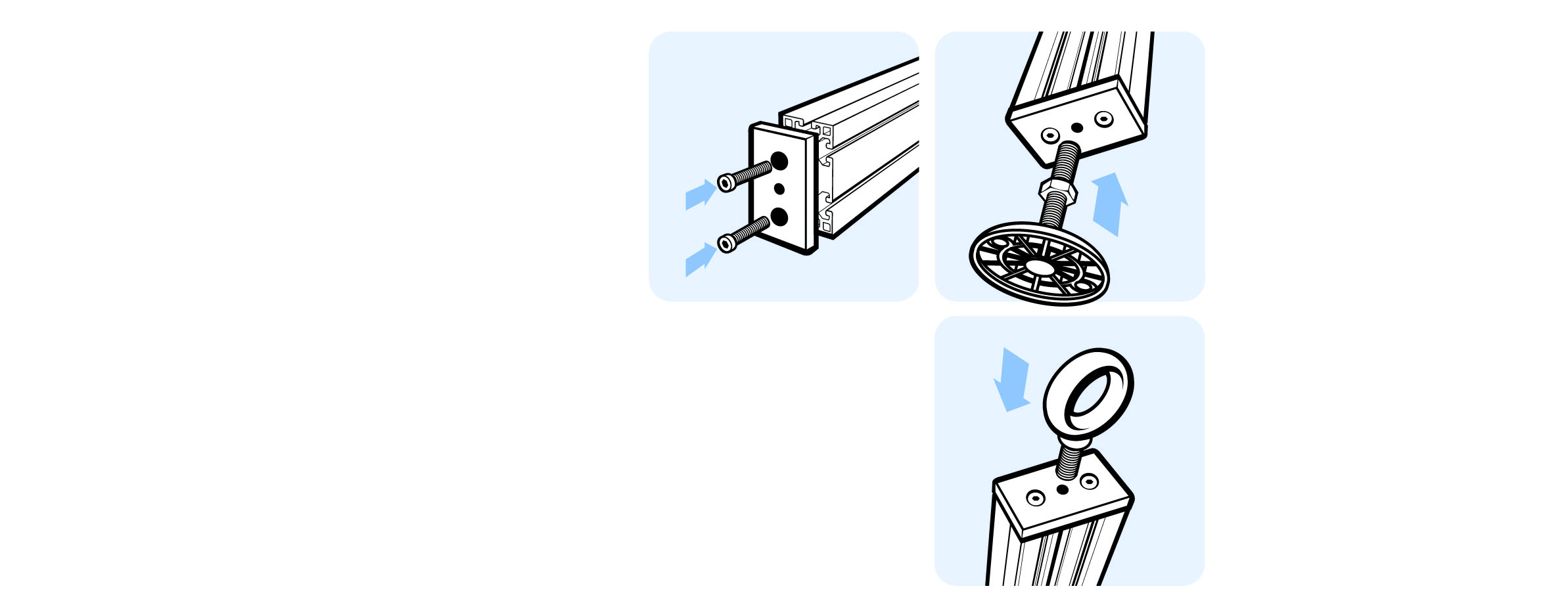

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Plain Transport and Base Plate see 093T45901008R
Model: Zinc die-cast
Pack Quantity: 10 pieces
Customs Tariff Number Export: 79070000
Weight (g): 255.0
ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
ERP Number: 141411
Zolltarifnummer: 79070000900

Variants

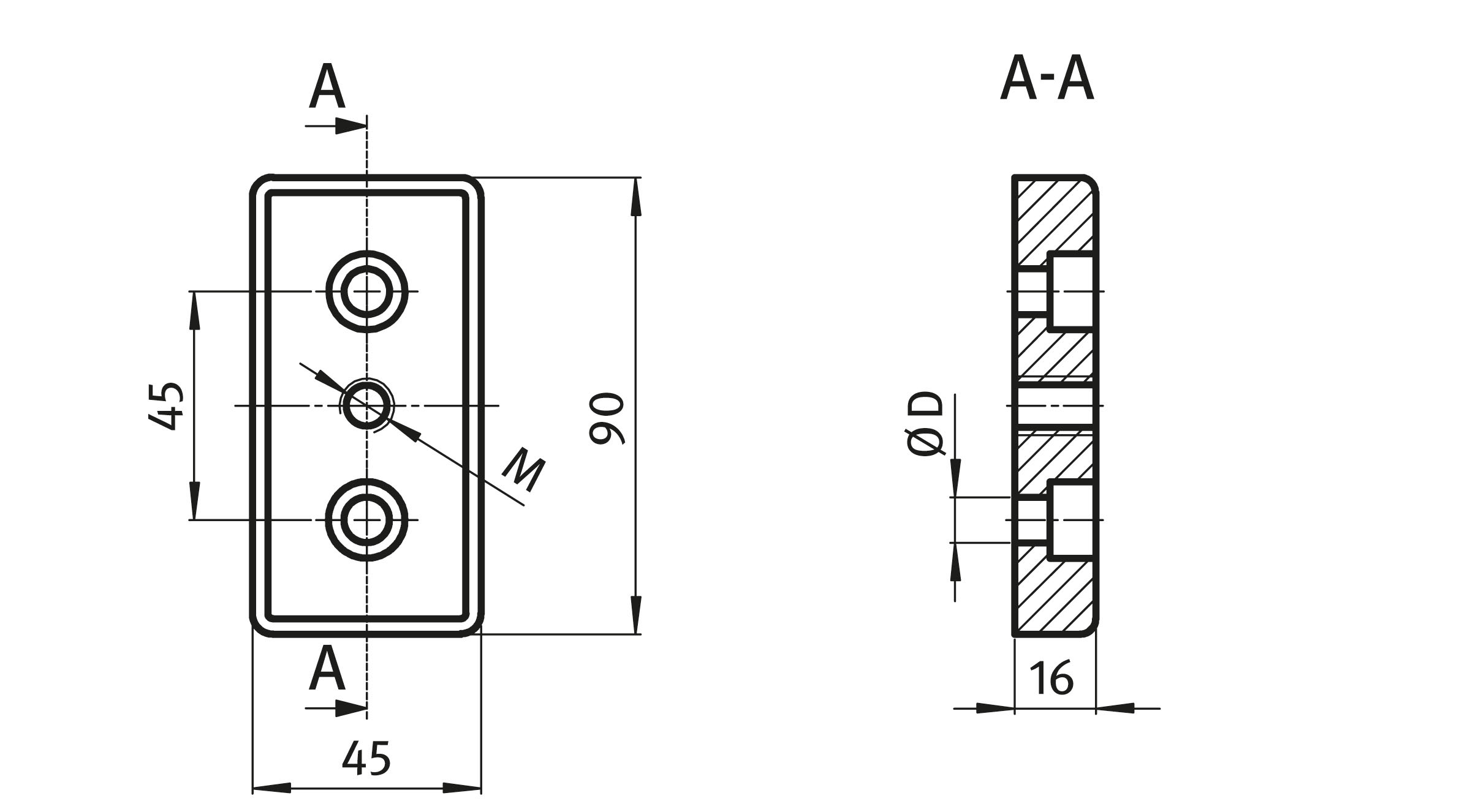

Part # Fig. Color ØD (mm) M
093T45901008A Alu color 9 (M8) M10
093T45901008S Black 9 (M8) M10
093T45901012S Black 14.5 (M12) M10
093T45901208A Alu color 9 (M8) M12
093T45901208S Black 9 (M8) M12
093T45901212A Alu color 14.5 (M12) M12
093T45901212S Black 14.5 (M12) M12
093T45901408A Alu color 9 (M8) M14
093T45901412S Black 14.5 (M12) M14
093T45901608A Alu color 9 (M8) M16
093T45901608S Black 9 (M8) M16
093T45901612S Black 14.5 (M12) M16
093T45902008A Alu color 9 (M8) M20
093T45902008S Black 9 (M8) M20
093T45902012S Black 14.5 (M12) M20
