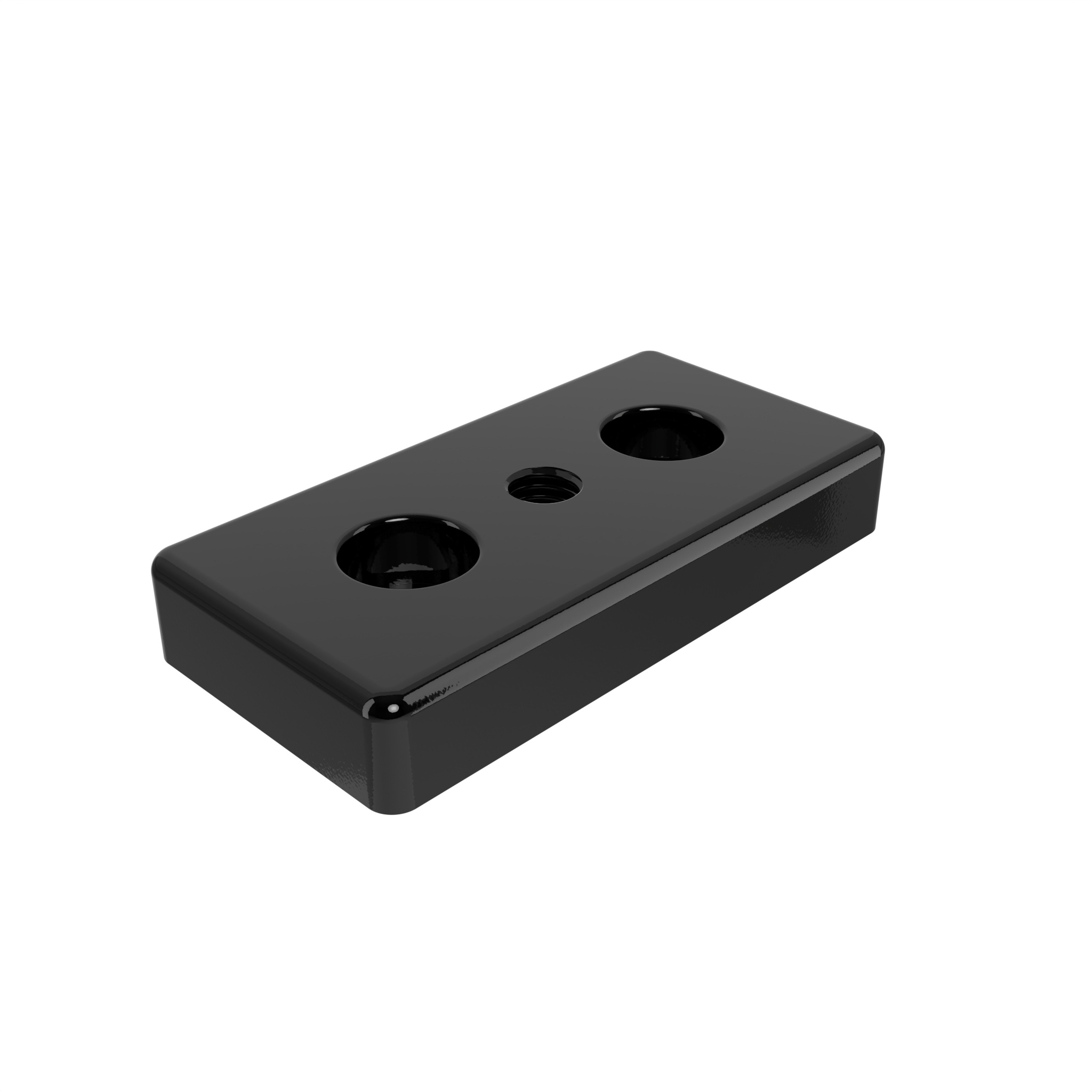

Transport and Base Plate ZN 50 x 100, Powder Coated

Product information "Transport and Base Plate ZN 50 x 100, Powder Coated"

Color:
Black, alu colour

Delivery Countries:
Worldwide

Description:

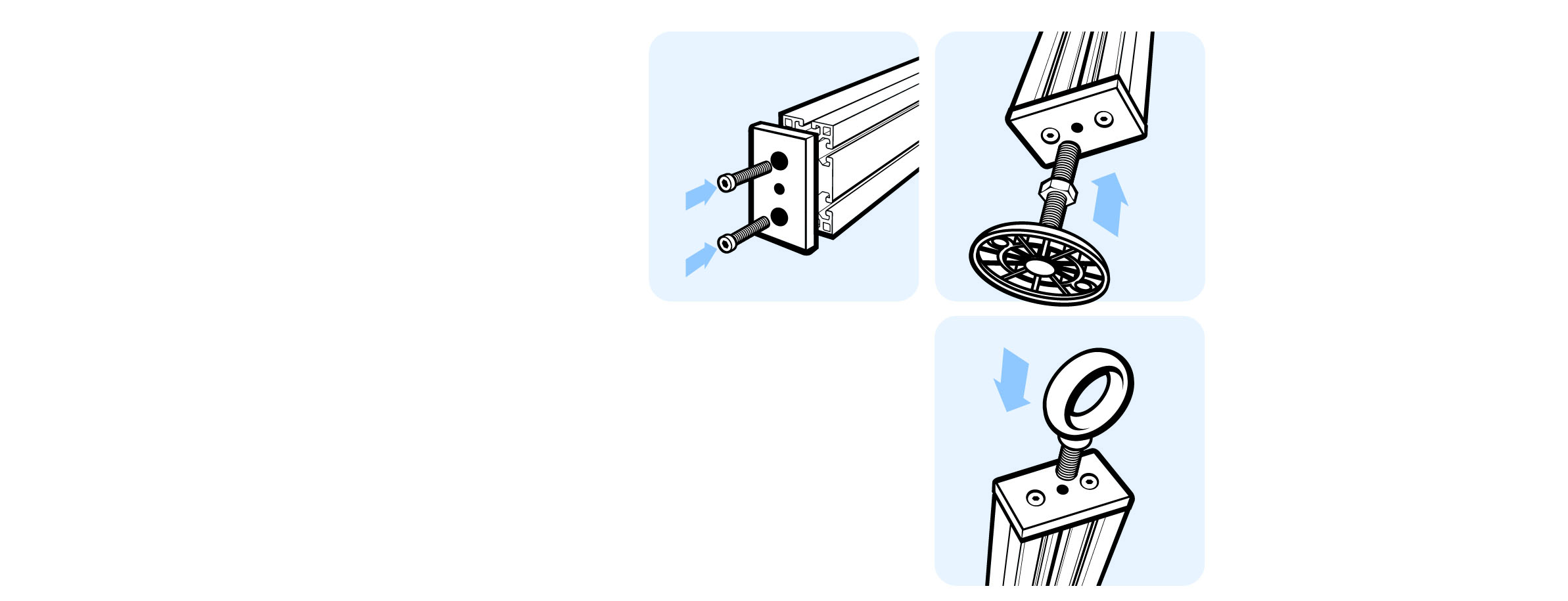

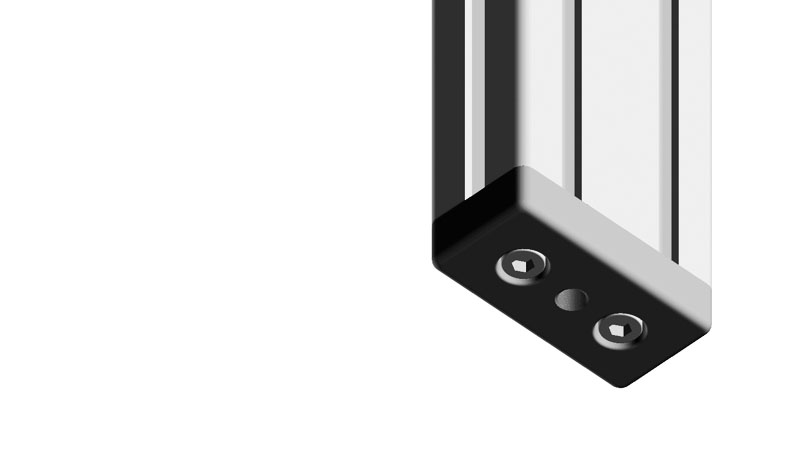

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Plain Transport and Base Plate see 093T501001010R
Model: Zinc die-cast
Pack Quantity: 10 pieces
Customs Tariff Number Export: 79070000
Weight (g): 306.0
ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
ERP Number: 129639
Zolltarifnummer: 79070000900

Variants

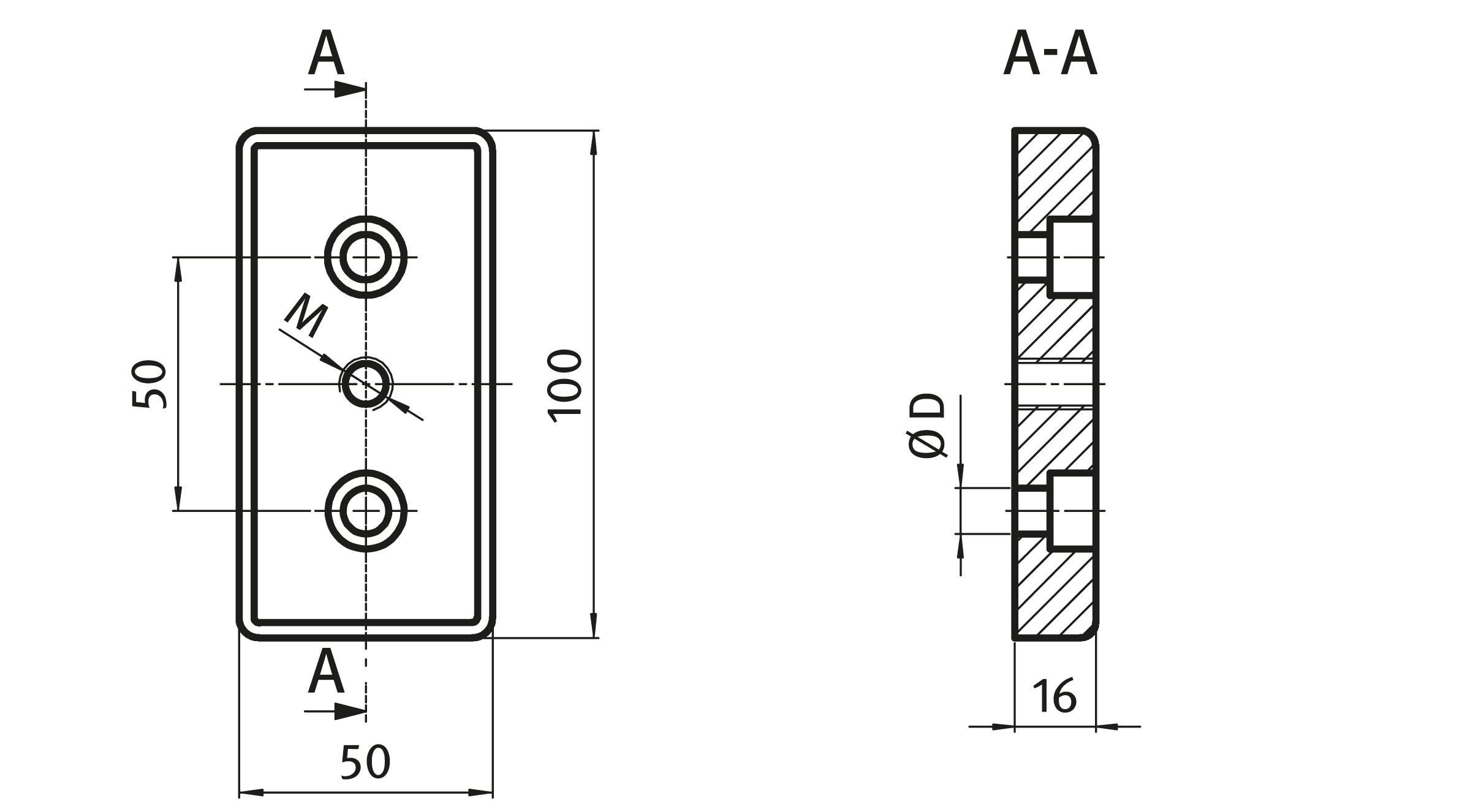

Part # Fig. Color ØD (mm) M
093T501001010A Alu color 11 (M10) M10
093T501001010S Black 11 (M10) M10
093T501001012S Black 14.5 (M12) M10
093T501001210A Alu color 11 (M10) M12
093T501001210S Black 11 (M10) M12
093T501001212S Black 14.5 (M12) M12
093T501001410A Alu color 11 (M10) M14
093T501001410S Black 11 (M10) M14
093T501001412S Black 14.5 (M12) M14
093T501001610A Alu color 11 (M10) M16
093T501001610S Black 11 (M10) M16
093T501001612S Black 14.5 (M12) M16
093T501002010A Alu color 11 (M10) M20
093T501002010S Black 11 (M10) M20
093T501002012S Black 14.5 (M12) M20
