Transport and Base Plate ZN 80 x 80, Powder Coated

Product information "Transport and Base Plate ZN 80 x 80, Powder Coated"

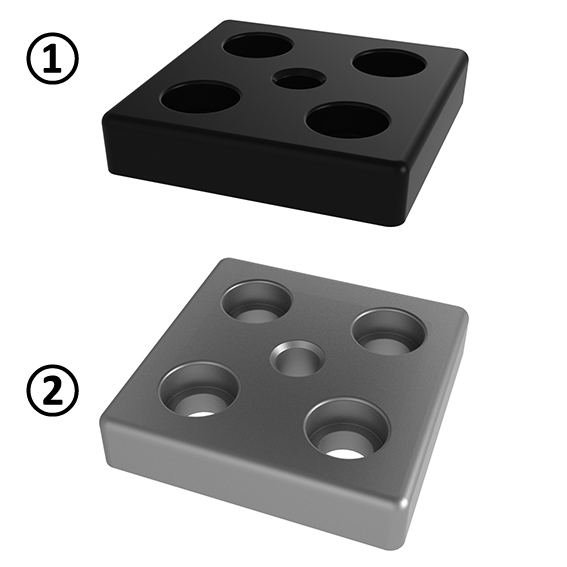

Color:
Black, aluminum color

Delivery Countries:
Worldwide

Description:

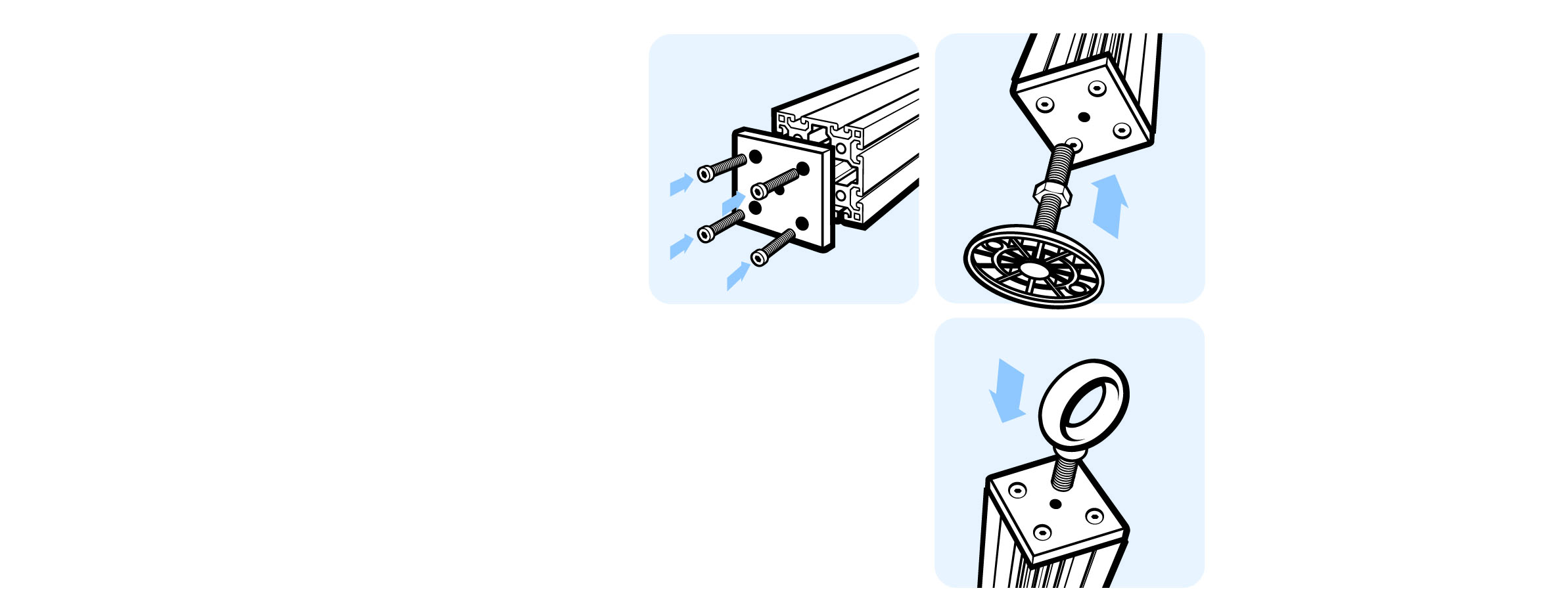

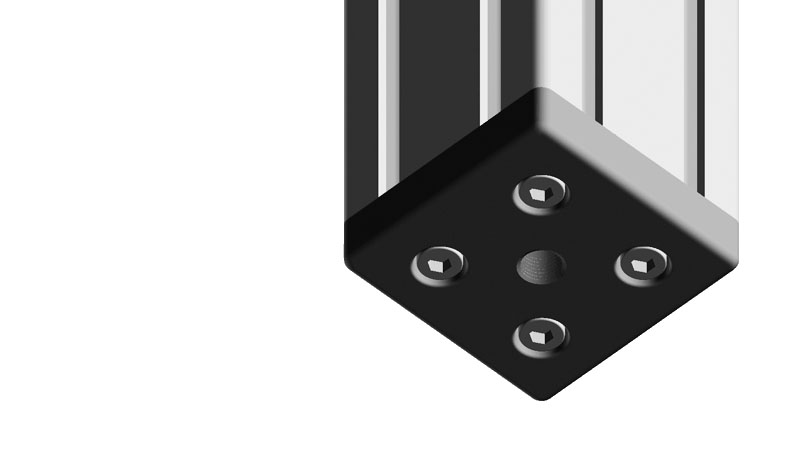

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Material:
Zinc die-cast

Specials:
Other surfaces, other colors on request

Surface:
Powder coated

Tip:
Plain Transport and Base Plate see 093T80800808R

Zolltarifnummer:
79070000900
(ECLASS 6.0): 23360290
(ECLASS 7.0): 23360290
(ECLASS 8.0): 23360290
(ECLASS 9.0): 23360290
(ECLASS 10.0): 23360290
(ECLASS 11.0): 23360290
(ECLASS 12.0): 23360290
(ECLASS 13.0): 23360290
Model: Zinc die-cast
Pack Quantity: 10 pieces
Weight (g): 436.0

Variants

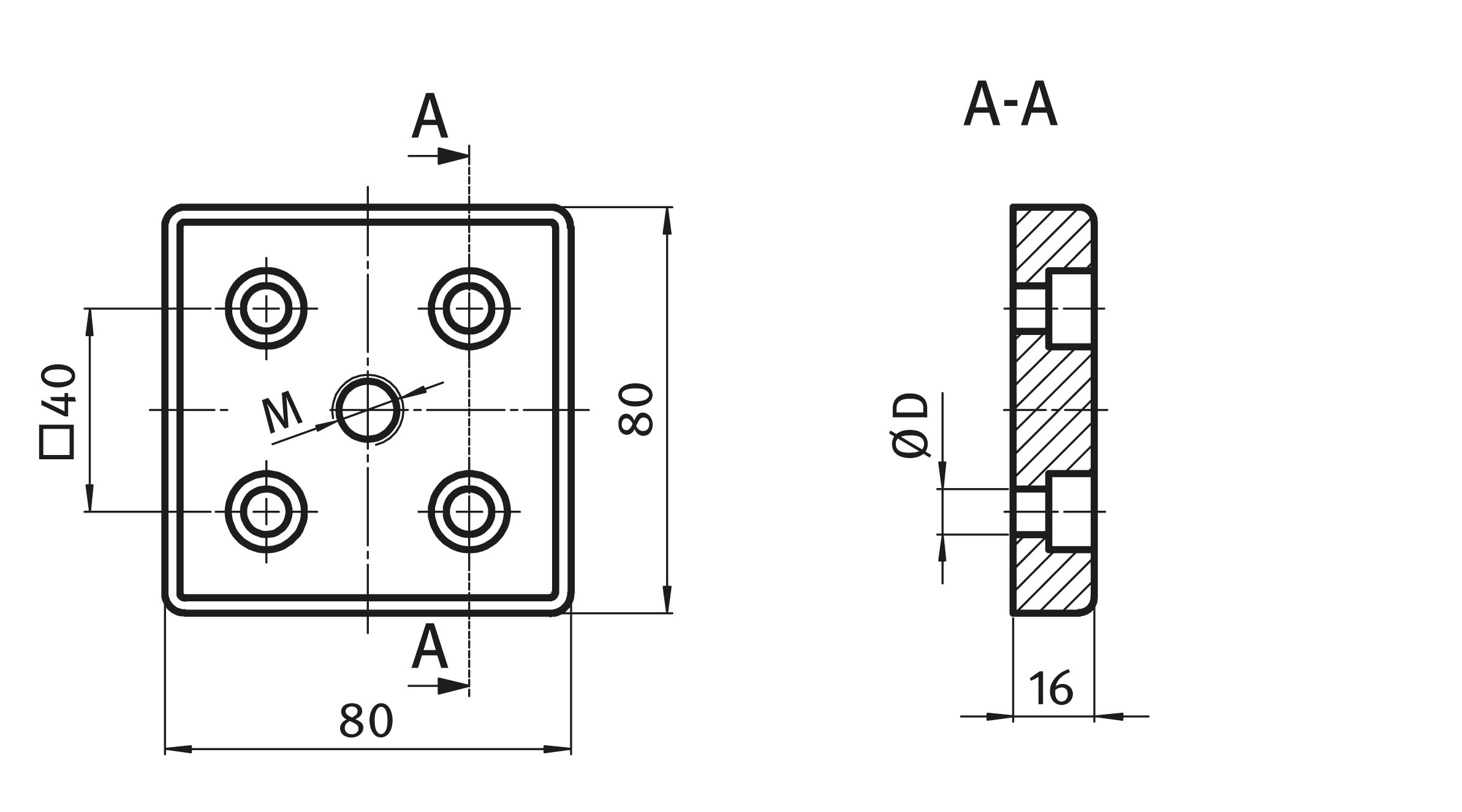

Product ID Fig. Color ØD (mm) M
093T80800808A Alu color 9 (M8)
093T80800808S Black 9 (M8)
093T80800812A Alu color 14.5 (M12) M8
093T80801008A Alu color 9 (M8) M10
093T80801008S Black 9 (M8) M10
093T80801012A Alu color 14.5 (M12) M10
093T80801012S Black 14.5 (M12) M10
093T80801208A Alu color 9 (M8) M12
093T80801208S Black 9 (M8) M12
093T80801212A Alu color 14.5 (M12) M12
093T80801212S Black 14.5 (M12) M12
093T80801408A Alu color 9 (M8) M14
093T80801408S Black 9 (M8) M14
093T80801412A Alu color 14.5 (M12) M14
093T80801608A Alu color 9 (M8) M16
093T80801608S Black 9 (M8) M16
093T80801612A Alu color 14.5 (M12) M16
093T80801612S Black 14.5 (M12) M16
093T80802008A Alu color 9 (M8) M20
093T80802008S Black 9 (M8) M20
093T80802012A Alu color 14.5 (M12) M20
