Transport and Base Plate ZN 90 x 90, Plain

€0.00

M

M10

M12

M16

M20

ØD (mm)

9 (M8)

14.5 (M12)

Part #: 093T90901212R

Pack Quantity: 10 pieces

Description:

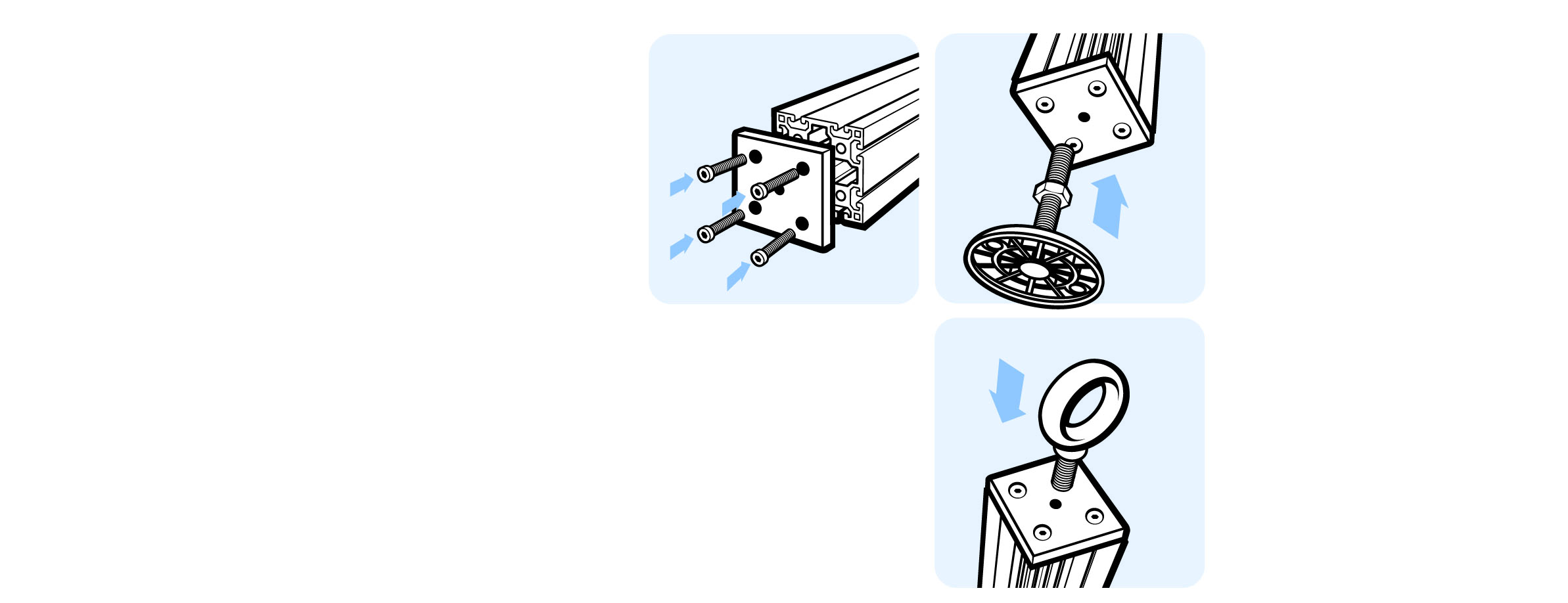

To mount leveling feet, rollers, hooks or similar components; connects to the profile sideways

Material:
Zinc die-cast

Surface:
Plain

Tip:
Powder coated Transport and Base Plate see 093T90901008S

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	Zinc die-cast
Weight (g):	480.0
ERP Number:	100892

Variants

Part #	M	ØD (mm)
093T90901208R	M12	9 (M8)
093T90901212R	M12	14.5 (M12)
093T90901608R	M16	9 (M8)
093T90901612R	M16	14.5 (M12)
093T90902012R	M20	14.5 (M12)
093T90901012R	M10	14.5 (M12)
093T90902008R	M20	9 (M8)

Classifications

ECLASS 6.0: 23360290
ECLASS 7.0: 23360290
ECLASS 8.0: 23360290
ECLASS 9.0: 23360290
ECLASS 10.0: 23360290
ECLASS 11.0: 23360290
ECLASS 12.0: 23360290
ECLASS 13.0: 23360290
Zolltarifnummer: 79070000900
Customs Tariff Number Export: 79070000

Certificates

Tags

Profile Type	Profile Type B
Product Feature	ESD
Profile Form	T-slot Profiles

Matching accessories

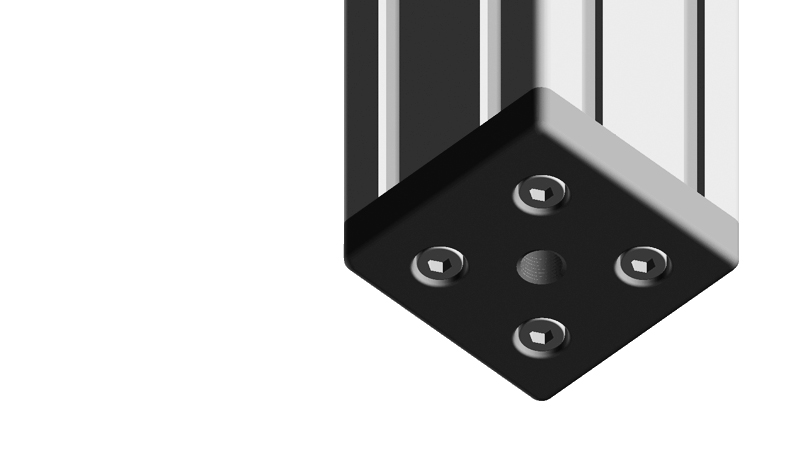

Transport and Base Plate ZN 90 x 90, Powder Coated

Fig.: ① Color: Black M: M10 ØD (mm): 9 (M8)

Description:To mount leveling feet, rollers, hooks or similar components; connects to the profile sidewaysMaterial:Zinc die-castSurface:Powder coatedColor:Black, alu colourTip:Plain Transport and Base Plate see 093T90901008RSpecials:Other surfaces, other colors on requestDelivery Countries:Worldwide
