Tubes for System Handle

Description:
To mount on doors, flaps and aluminum profiles

Material:
Carbon fiber, aluminum, stainless steel, steel

Surface:
Glossy finish, anodized, plain, plastic covered

Fastening:
End pieces for system handle

Tip:
*For cut to length
For the steel tube, please remove the plastic cover at the ends for installation in the end pieces

Specials:
Other surfaces, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	10 pieces
Model:	For combining with the end pieces
Weight (g):	17.0
ERP Number:	113723

Variants

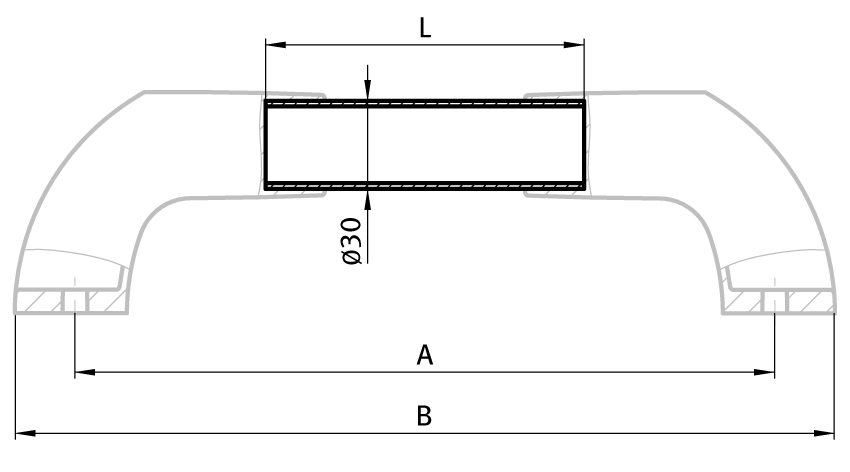

Part #	Version	A (mm)	B (mm)	L (mm)	Fig.	Pack Quantity

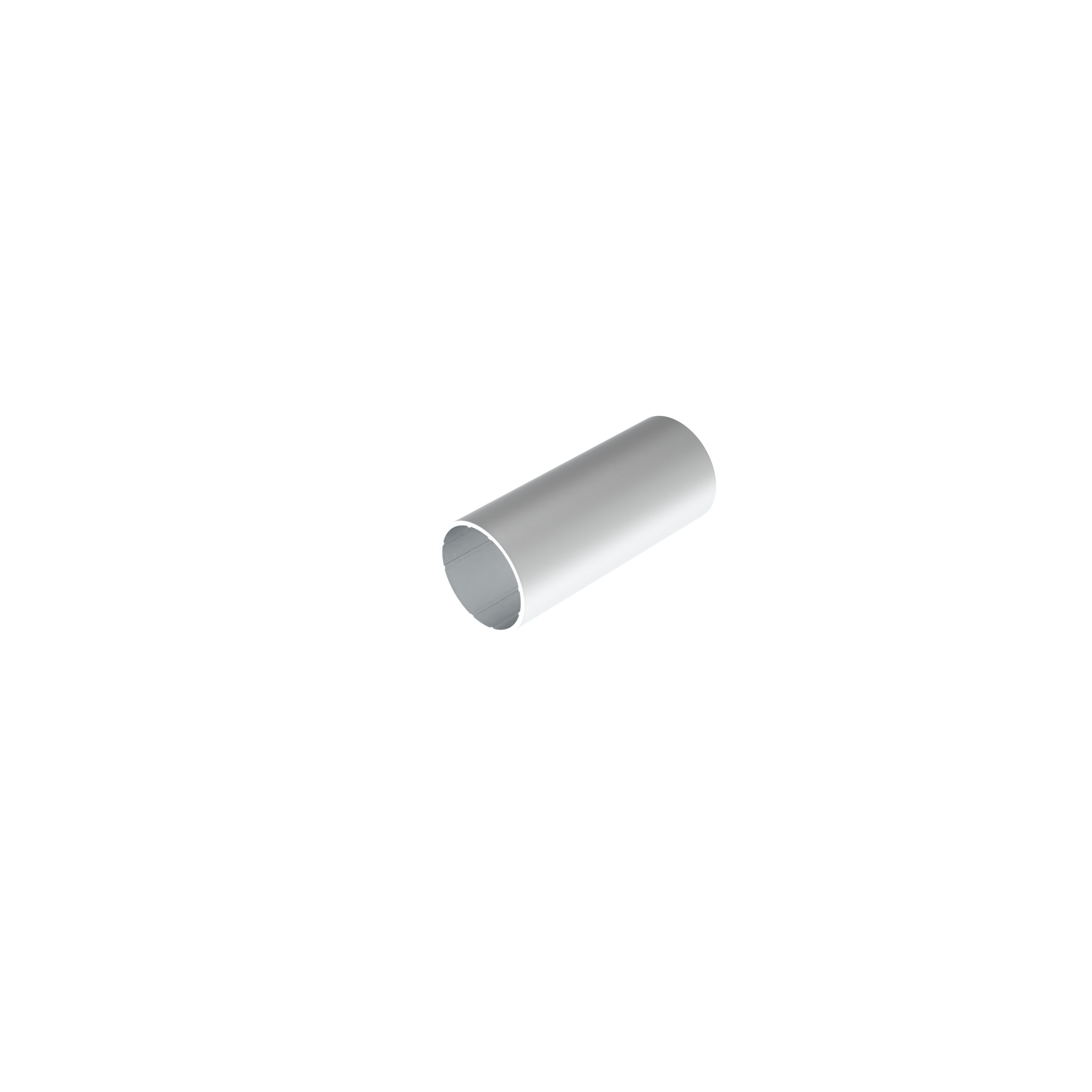

092013A200	Aluminum, anodized	200.0	240.8	70.0	②	10 pieces
092013A300	Aluminum, anodized	300.0	340.8	170.0	②	10 pieces
092013A400	Aluminum, anodized	400.0	440.8	270.0	②	10 pieces
092013A500	Aluminum, anodized	500.0	540.8	370.0	②	10 pieces
092013A.2000	Aluminum, anodized	-	-	*2000.0	②	10 pieces at 2 meters (20 meters)
092013E.2000	Stainless steel	-	-	*2000.0	③	10 pieces at 2 meters (20 meters)
092013S400	Steel, plastic covered	400.0	440.8	270.0	④	10 pieces
092013S500	Steel, plastic covered	500.0	540.8	370.0	④	10 pieces
092013S.2000	Steel, plastic covered	-	-	*2000.0	④	10 pieces at 2 meters (20 meters)
