Tubular Handle

Description:

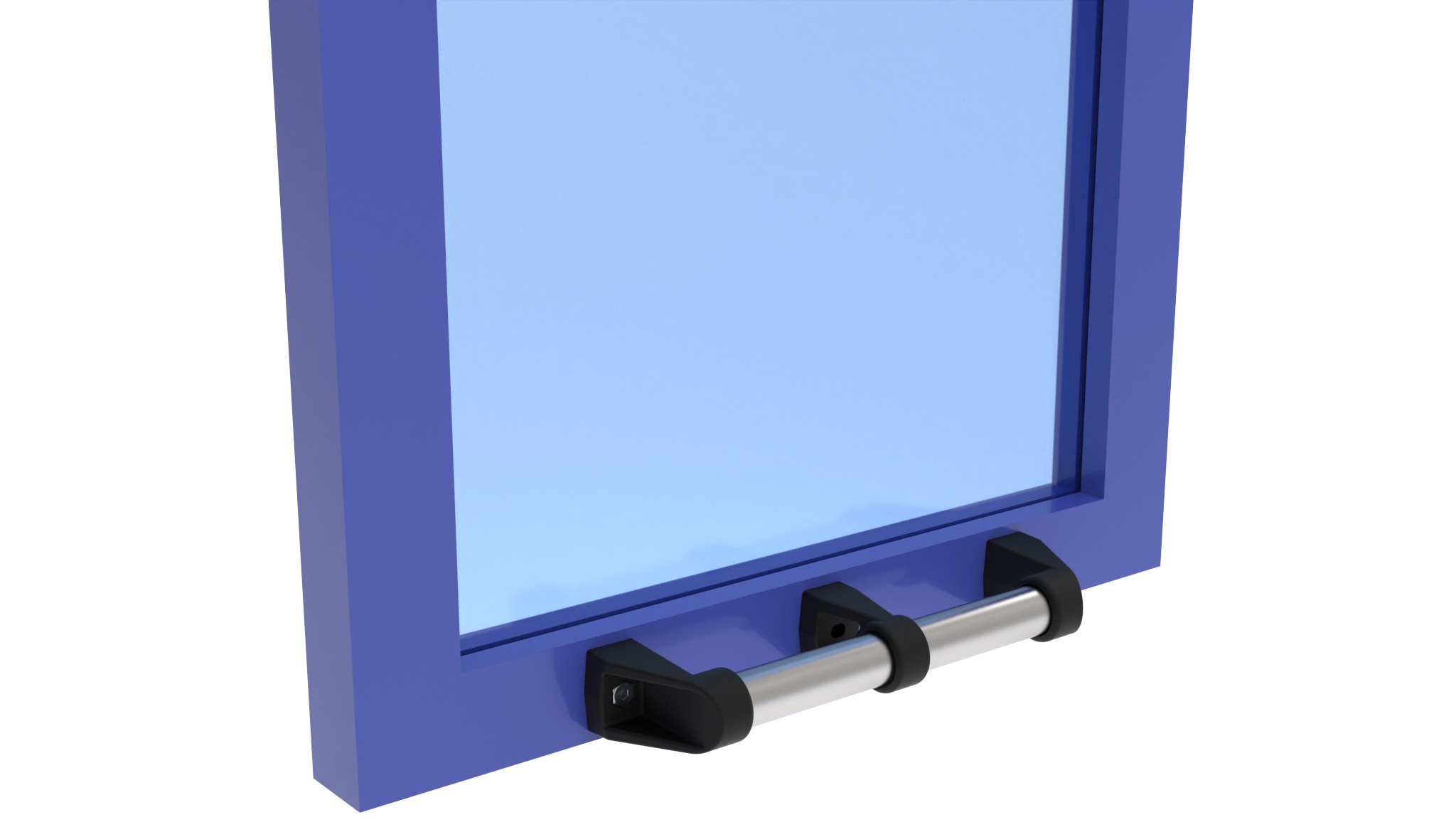

To mount on doors, flaps and aluminum profiles
Material:
Handle bar: Steel
Handle shank: Plastic PA

Surface:
Handle bar: Chrome plated

Color:
Handle bar: Chrome

Fastening:
From the front, using socket head screws; from the back using inserted hexagon nuts or hexagon cap screws

Set:
2 x End piece, 1 x Middle piece

Delivery Countries:
North America, Central America, Caribbean, South America, China, United Kingdom, Ireland, Netherlands, Estonia, Latvia, Lithuania,Poland, Czechia, Slovakia, Hungary, Slovenia, Croatia, Serbia, Romania, Bulgaria
Pack Quantity: 10 pieces
Weight (g): 370.6
ERP Number: 139793

Variants

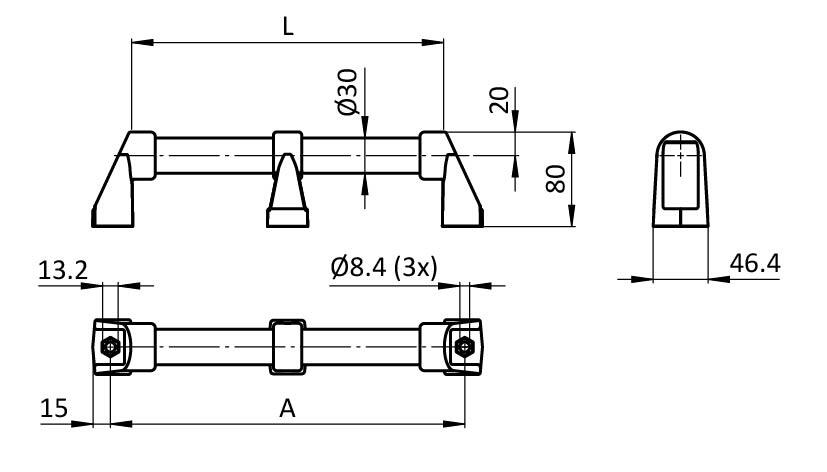

Part # A (mm) L (mm) CAD
300.0 266.0
400.0 366.0
600.0 566.0
700.0 666.0
800.0 766.0

Classifications

Customs Tariff Number Export
39269097

Certificates

Tags

Profile Form T-slot Profiles
Application Area Machinery & Plant Engineering
