Twin Slam Latch COMPACT

Product information "Twin Slam Latch COMPACT"

Color:
Black

Delivery Countries:
Worldwide

Description:

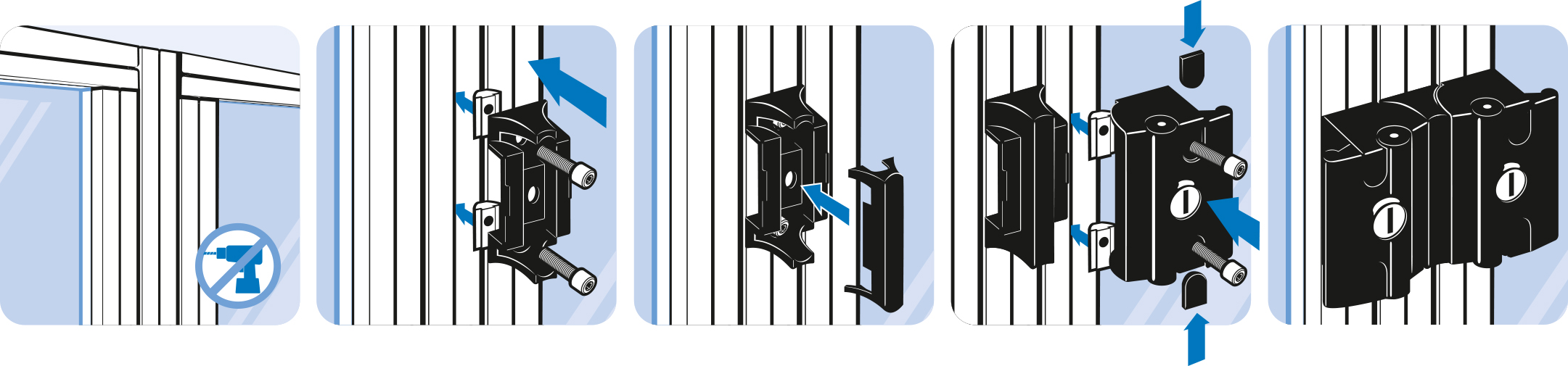

For an easy and secure latching and locking of doors and flaps, no mechanical preparation needed for the assembly;
Safe against disassembling in the locked position;
Provides selective access by use of a single post;
With separate locating pins for slot 8 and slot 10

Material:
Aluminum die-cast

Specials:
Other combinations of slam latches on request

Surface:
Powder coated

Tip:
* Universal: One key fits all slam latches
Unique: Each slam latch has a different key
Compatible Emergency Opener for Slam Latch see 0957409 et sq.;
Compatible Replacement Cover Cap (Set) see 0957420RS01.
(ECLASS 6.0): 23199090
(ECLASS 7.0): 23199090
(ECLASS 8.0): 23199090
(ECLASS 9.0): 23199090
(ECLASS 10.0): 23199090
(ECLASS 11.0): 23190290
(ECLASS 12.0): 23190290
(ECLASS 13.0): 23190290

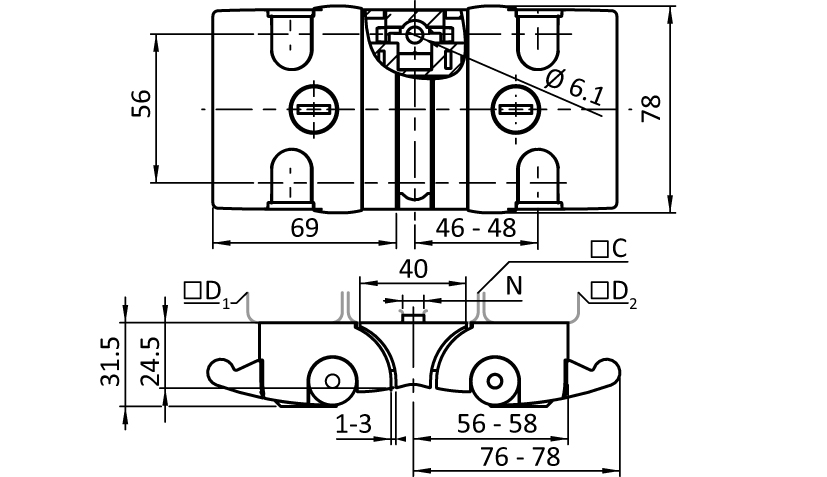

C (D1/D2) (mm): 40 (30, 38 – 1.5“, 40, 45); #b 45 (30, 38 – 1.5“, 40, 45); #b 50 (30, 38 – 1.5“, 40, 45); #b 60 (30)
Customs Tariff Number Export: 83014090
Fastening: From the front, using M6 socket head or pan head screws, V_From the front, using M6 socket head or pan head screws
Model: Aluminum die-cast
Pack Quantity: 1 piece
Weight (g): 448.0
Zolltarifnummer: 83014090000
pA Number: 133849

Variants

Product ID Lock Slot N (mm)
0957420S01 Universal* 8 / 10
0957420S02 Unique* 8 / 10
