Uni Block 14, Black

€0.00

Profile

I

M

M4

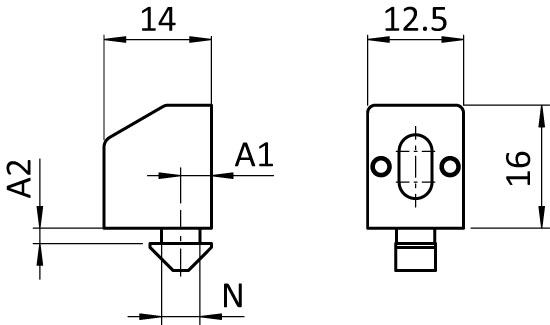

Slot N (mm)

5

A2 (Profile) (mm)

1.6 (1.8)

A1 (mm)

4.0

Part #: 094411M4

Pack Quantity: 100 pieces

Description:

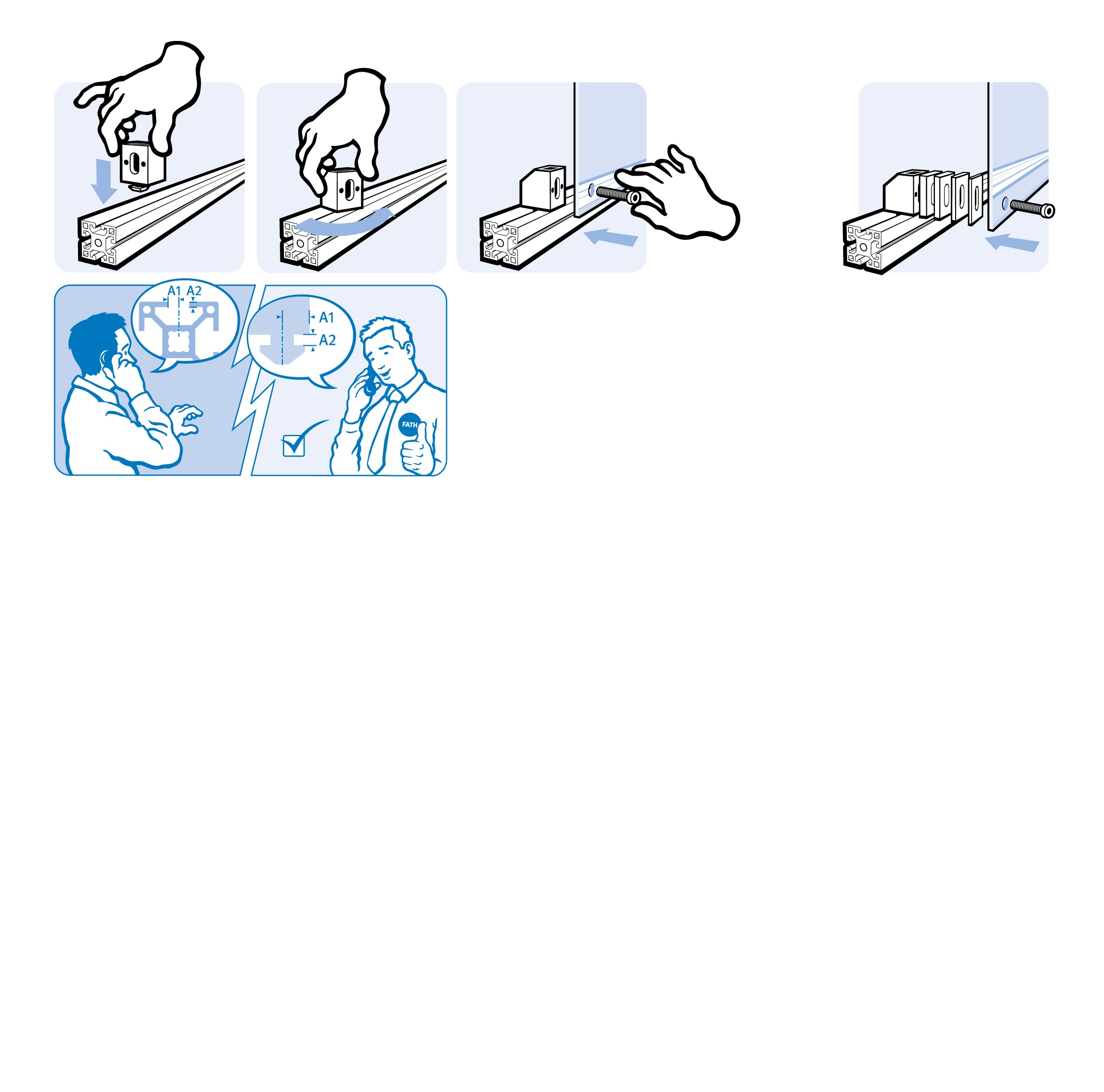

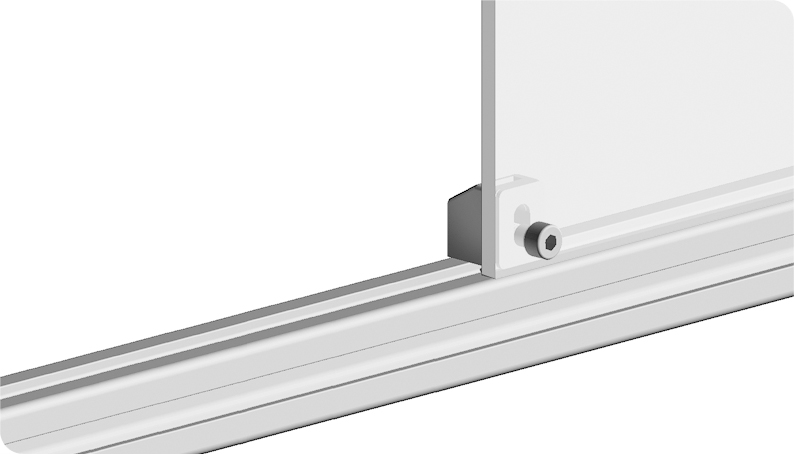

To attach panels easily to aluminum profiles

Material:
Block: Plastic PA, glass fiber reinforced
Nut: Zinc plated steel

Color:
Black

Tip:
Compatible Spacer see 094901

Specials:
Customized hammer, other colors on request

Delivery Countries:
Worldwide

Pack Quantity:	100 pieces
Model:	Plastic PA, Slot 5
Weight (g):	2.6
ERP Number:	101438

Variants

Part #	Profile	M	Slot N (mm)	A2 (Profile) (mm)	A1 (mm)	CAD
094411M4	I	M4	5	1.6 (1.8)	4.0

Classifications

ECLASS 6.0: 23369290
ECLASS 7.0: 23369290
ECLASS 8.0: 23369290
ECLASS 9.0: 23369290
ECLASS 10.0: 23369290
ECLASS 11.0: 23360492
ECLASS 12.0: 23360492
ECLASS 13.0: 23360492
Zolltarifnummer: 39269097900
Customs Tariff Number Export: 39269097

Certificates

Tags

Profile Type	Profile Type I
Slot Size	Slot size 5
Profile Form	T-slot Profiles

Matching accessories

Spacer, for Uni Blocks / Clip Blocks 13, Black

D (mm): *1.0 Color: Black

Description:For height adjustment of the contact surfaces, for flush mounting of panelsMaterial:Plastic PAColor:BlackTip:Compatible Uni Block see 094411M4 and 094411M4S03, Compatible Clip Block see 094311 and 094311S02Tip 2:*Please note: You need each two pieces 093048!Delivery Countries:Worldwide
